Features:

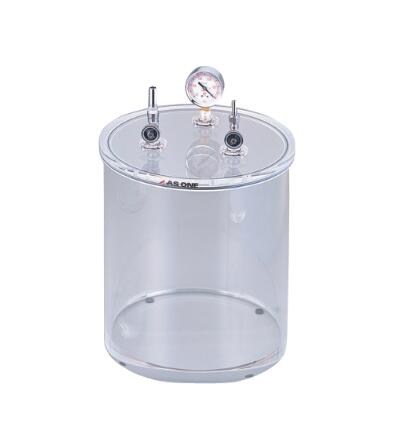

Roof disassembly type acrylic vacuum container.
The vacuum gauge that comes with the drying box has been calibrated and tested at the factory, and has a calibration certificate (calibration certificate, inspection report and traceability system diagram)
Specifications:
Allowed vacuum :1Torr(about 133Pa)
Material: main part, bottom te, top te/Transparent reinforced PMMA(acrylic), valve, vacuum gauge mounting part /PC(polycarbonate)
Accessories: Vacuum valve: small/outer diameter φ8mm×1, large/outer diameter φ14mm×1, calibrated vacuum gauge ×1
Recommended vacuum pump :(1-4148-11) dry vacuum pump DTC-22,(1-671-06) dry vacuum pump DA-20D
Accessories: calibration proof document
※ Products with calibration certificate refer to Azwan's original service of calibration of measuring instruments and issuance of calibration certificate by Azwan or Azwan Partner companies.
This product is general proofreading. Attached proofreading certificate (proofreading certificate, inspection results, traceability system diagram)
※ Japanese edition 3 sets of documents 3 sets of English translation both are complimentary.
【 Specification sheet 】
| Picture | Number | Model | te thickness | The weight | External dimensions (mm) | Internal dimensions (mm) | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
2-7875-01-56 | Type 200 | Motherboard /8mm, bottom te /20mm, top te /20mm | 3.2kg | φ215×335(※※ Including vacuum meter) | φ184×192 | 1 | 6,330.00 5,381.00 | 0 | 0 | 0 | 28 days or so | **12 | - |
|
|
2-7875-02-56 | Type 300 | Body /10mm, bottom te /25mm, top te /25mm | 8.0kg | φ315×449(※※ Including vacuum meter) | φ280×296 | 1 | 8,860.00 7,531.00 | 0 | 0 | 0 | 28 days or so | **12 | - |
※ It takes about 18 days to ship from Japan in case of storage in Japan
