Features:
Forced pair flow mode
3
————————
実測値と設定値の確認が容易なPV・SV二段表示に加え,過昇温防止設定温度表示を採用しています。—
4種類のタイマー機能(在・・开/关・SVスタート)を標準装備し,試料の量・サイズに合わせて4タイプから選択できます。—
Specifications:
Temperature control: Room temperature 20 ~ 270℃
Temperature control mode: PID control,SSR output
——
安全装置:デジタル設定式過昇防止機能・過電流ブレーカー・バーンアウト機構(センサー断線時ヒーター)—
温度センサー:K熱電対×2個(温調用・過昇防止用×各1本)—
外装/内装:スチール粉体塗装/ SUS304(一部SUS443J1)—
AC100V50/60Hz 2.4m(3P)——
※
Power supply Note :
The commodity power supply is AC100V, please be sure to use with 100V transformer.
Related transformer products, please refer to Chinese 2019 No. 477 page /2017 No. 884 page or directly consult our company.
【 Specification sheet 】
| Picture | Number | Model | Inside dimensions (mm) | The door | Maximum temperature arrival time | Temperature distribution (JTMK05) | Temperature variation (JIS) | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-2126-21 | OFW-300V | 300×327×300 | Left | About 20 minutes | ±3°C(at270°C) | ±1°C(at270°C) | 1 set | 13,900.00 11,815.00 | 0 | 0 | 8 |
|
**12 | - |
|
|

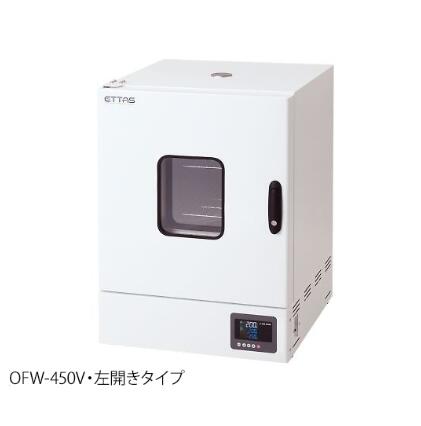

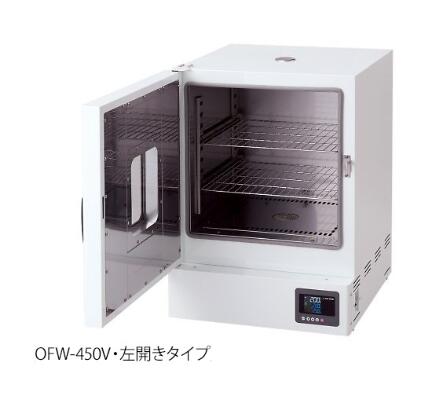

1-2126-22 | OFW-450V | 450×447×450 | Left | About 45 minutes | ±8°C(at270°C) | ±1°C(at270°C) | 1 set | 16,000.00 13,600.00 | 0 | 0 | 5 |
|
**12 | - |
|
|
1-2126-23 | OFW-600V | 600×497×500 | Left | About 55 minutes | ±8°C(at270°C) | ±1.5°C(at270°C) | 1 set | 18,600.00 15,810.00 | 0 | 0 | June 09, 23 storage reservation 9 | 58天Left右 | **12 | - |
|
|
1-2126-24 | OFW-300V-R | 300×327×300 | Right | About 20 minutes | ±3°C(at270°C) | ±1°C(at270°C) | 1 set | 13,900.00 11,815.00 | 0 | 0 | 6 |
|
**12 | - |
|
|
1-2126-25 | OFW-450V-R | 450×447×450 | Right | About 45 minutes | ±8°C(at270°C) | ±1°C(at270°C) | 1 set | 16,000.00 13,600.00 | 0 | 0 | 3 |
|
**12 | - |
|
|
1-2126-26 | OFW-600V-R | 600×497×500 | Right | About 55 minutes | ±8°C(at270°C) | ±1.5°C(at270°C) | 1 set | 18,600.00 15,810.00 | 0 | 0 | 3 |
|
**12 | - |
※日本在库的情况下,从日本寄送大概需要18天Left右
