Features:
Forced convection mode
3 sizes are available
Change the basic type
Standard digital safety device
Bright large LCD screen
Color LCD disy with good visibility improves operability
In addition to easy to confirm the measured value and set value of PV,SV two-stage disy, but also use the anti-temperature setting temperature disy
Standard with 4 timer functions (ON,OFF,ON/OFF,SV start), can be selected according to the quantity and size of the sample
PID temperature control, can carry out high precision, stable temperature management
Specifications:
附带验证的商品是在发货前在AZONE实施FAT(FactoryAcceptanceTest)的AZONE原创服务.
Verification before delivery (FAT).
After ordering, we will send you the FAT n (n) and implement the FAT.-- after you sign and return
Attached documents :FAT Report/Proofreading Certificate with measuring instrument
※ Attached is Azwan's original FAT Instruction book (see the lower left sample of the screen).
Temperature point :270°C9
Temperature control range: room temperature 20~270°C
Temperature control mode :PID control,SSR output
Additional functions: timer specification →ON timer, OFF timer, SV start, ON/OFF timer
Safety device: digital set to prevent over-rise function, over-current circuit breaker, burning mechanism (heater OFF when the sensor is broken)
Temperature sensor :K thermocouple ×2 (temperature control, prevent over rise × 1 each)
External/internal installation: coated steel powder /SUS304(part of SUS443J1)
Power supply :AC100V50/60Hz line length :2.4m(3P plug)

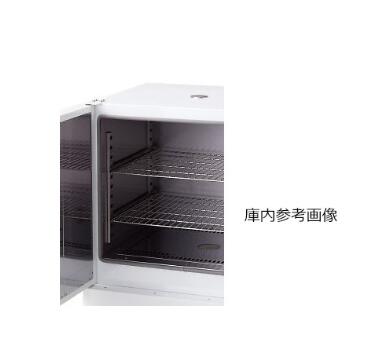

Accessories: shelf ×2 pieces · Shelf guide ×2 sets
※ Do not put combustible substances into the storage.
※希望在当地IQOQ时请另行咨询.报价时,需要安装地址.
【 Specification sheet 】
| Picture | Number | Model | External dimensions (mm) | Inside dimensions (mm) | The door | Maximum temperature arrival time | Temperature distribution (JTMK05) | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-2125-21-28 | OF-300V | 400×447×610 | 300×327×300 | Left | About 20 minutes | ±3℃(at270℃) | 1 set | 13,000.00 11,050.00 | 0 | 0 | 0 | 45天Left右 | **12 | - |
|
|

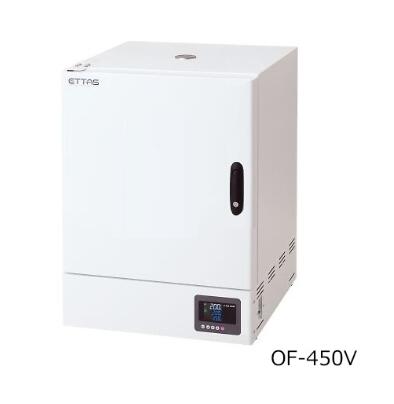

1-2125-22-28 | OF-450V | 550×567×760 | 450×447×450 | Left | About 45 minutes | ±8℃(at270℃) | 1 set | 15,000.00 12,750.00 | 0 | 0 | 0 | 45天Left右 | **12 | - |
|
|

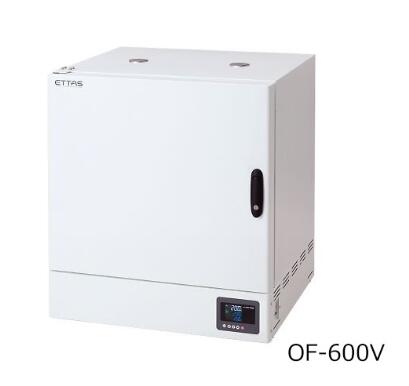

1-2125-23-28 | OF-600V | 700×617×810 | 600×497×500 | Left | About 55 minutes | ±8℃(at270℃) | 1 set | 18,000.00 15,300.00 | 0 | 0 | 0 | 45天Left右 | **12 | - |
|
|
1-2125-24-28 | OF-300V-R | 400×447×610 | 300×327×300 | Right | About 20 minutes | ±3℃(at270℃) | 1 set | 13,000.00 11,050.00 | 0 | 0 | 0 | 45天Left右 | **12 | - |
|
|
1-2125-25-28 | OF-450V-R | 550×567×760 | 450×447×450 | Right | About 45 minutes | ±8℃(at270℃) | 1 set | 15,000.00 12,750.00 | 0 | 0 | 0 | 45天Left右 | **12 | - |
|
|
1-2125-26-28 | OF-600V-R | 700×617×810 | 600×497×500 | Right | About 55 minutes | ±8℃(at270℃) | 1 set | 18,000.00 15,300.00 | 0 | 0 | 0 | 105天Left右 | **12 | - |
※日本在库的情况下,从日本寄送大概需要18天Left右
Freight charge is extra
