Features:

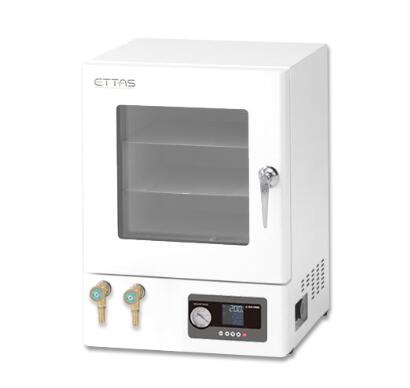

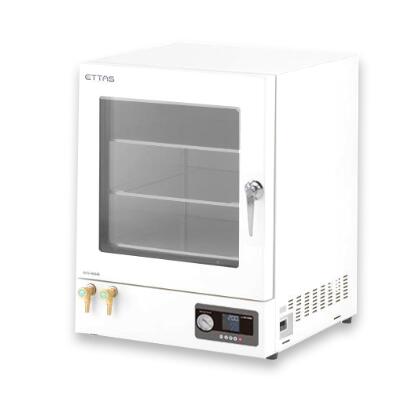

This product is a standard vacuum dryer.
In order to facilitate piping and operation, the vacuum pump connection valve and vacuum gauge are equipped in the front operating panel section
Double-layer doors are used, with toughened glass doors and polycarbonate protection doors.
Use heat-resistant washers to ensure good durability and air tightness.
This product is equipped with two sections of PV · SV disy, in order to confirm the measured value and set value, and use overtemperature protection set temperature disy
Temperature control, overtemperature protection Settings are standard digital Settings
Specifications:
Additional functions: timer function (ON · OFF · ON/OFF timer,SV START).
Sensor: K type thermocouple x2 (temperature control and overtemperature protection each 1)
Safety device: overtemperature protection function (digital setting type), self-diagnosis function (heater break detection, sensor abnormal detection), overcurrent circuit breaker
Appearance: Steel paint
Interior: SUS304
Partition te: Aluminum
阀(c-3771, c-3604)——
Vacuum gauge: Brass (C2680TW, C3604BD)
Door washer: silicone rubber
Heating method: tank heating method
Temperature setting range: 40 ~ 220℃
Vacuum range: 0.1 ~ 101kPa
Control method: PID control · SSR output
Valve diameter: outer diameter φ13mm
【 Specification sheet 】
| Picture | Number | Model | Storage capacity (L) | ▼ Observation window | External dimensions (mm) | Inside dimensions (mm) | Heater capacity | Sales
Packaging |
RMB(含税) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-2186-11 | AVO-200V | 8 | Reinforced glass (12mm thick), polycarbonate protective te | 343×376×509 | 200×200×200 | 800W | 1 set | 20,700.00 17,595.00 | 0 | 0 | 45 |
|
**12 | - |
|
|

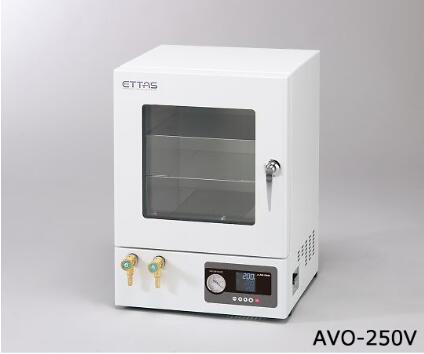

1-2186-12 | AVO-250V | 15 | Reinforced glass (12mm thick), polycarbonate protective te | 393×426×559 | 250×250×250 | 800W | 1 set | 24,900.00 21,165.00 | 0 | 0 | 11 |
|
**12 | - |
|
|
1-2186-13 | AVO-310V | 30 | Reinforced glass (12mm thick), polycarbonate protective te | 453×486×619 | 310×310×310 | 1360W | 1 set | 32,200.00 27,370.00 | 0 | 0 | 16 |
|
**12 | - |
|
|
1-2186-14 | AVO-450V | 91 | Reinforced glass (15mm thick), polycarbonate protective te | 594×630×770 | 450×450×450 | 1680W | 1 set | 68,500.00 58,225.00 | 0 | 0 | 3 |
|
**12 | - |
※ It takes about 18 days to ship from Japan in case of storage in Japan
