Features:
※点、検検査書付き商品とは,出荷時に制御・電動機関係の点検を実施し,検査書を発行するサービスです。—
※
①エラー発生時のお知らせ機能(安心・安全)②ワイヤレスデータロガー機能③3段PID制御④鮮やかな大型液晶画面⑤風量の可変—
【ワイヤレスロガーアプリ特長】—
——————————————————————————
マニュアル無しでも直観的に操作できます。—
読み出した記録データは自動的にCSV形式の添付ファイルに変換され,メールアドレスを入れるだけでパソコン等への送信ができ,ファイルはEXCEL等の表計算ソフトで開いて,グラフ化や編集,帳票作成が行なえます。—
記録したデータを読み出しても,消去するまでは電源を了してもデータは基板内に保持されます。—
記録の開始/停止,消去はアプリから行ないます。—
Specifications:
Temperature control mode: 3-level PID control,SSR output
Communication function: Specifications :Bluetooth Smart (Bluetooth 4.2)/Distance :Class 2 (about 10 m)
Recorder function :
▼ Recording mode: full stop (stop recording with full memory)
▼ Recording cycle :2 seconds /10 seconds /30 seconds /60 seconds /10 minutes /60 minutes
▼ Disy cycle :2 seconds /10 seconds /30 seconds /60 seconds /300 seconds
External application :
▼ Functions: record start/stop, record data read/delete/transfer to PC/list disy, trend chart disy (can be enlarged, reduced)
▼ Record format :CSV format
▼ Corresponding OS: after iOS 10
iPhone 5s·5c·6·6 Plus·6 s·6 s·6 s·6 s Plus·SE·7·7 Plus·8·8 Plus·X——
Additional functions: timer (ON timer, OFF timer, SV start, ON/OFF timer)/Maximum 10 steps ×8 modes of temperature gradient program/week/time specified timer
Safety device: digital device to prevent over-rise function, over-current circuit breaker, burnout mechanism (heater OFF when the sensor is broken)
Temperature sensor :K thermocouple ×2 (temperature control, prevent over rise × 1 each)
Exterior/interior: Coated steel powder /SUS 30 (part SUS 60 J 1)
Power supply :AC 10 V 50/60 Hz line length 60 m (3 P plug)
Accessories: shelf ×2 pieces · Shelf guide ×2 sets
Attachment file: Check check file
※ Products with inspection certificates refer to the AZONE original service that controls the delivery, checks the motor system, and issues inspection certificates.
Can correspond to the verification service (IQ/OQ) goods. Please be sure to inquire.
* Verification service refers to the service of qualification verification (IQ) and operation performance qualification verification (OQ) during installation at the customer's site, and submission of inspection documents
※ Do not put combustible substances into the storage.
【 Specification sheet 】
| Picture | Number | Model | Inside dimensions (mm) | The door | Temperature adjustment range | Maximum temperature arrival time | Temperature distribution (JTMK05) | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-9000-31-22 | OFW-300SB | 300×327×300 | Left | Room temperature 20~320℃ | About 30 minutes | ±5℃(at320℃) | 1 set | 17,800.00 15,130.00 | 0 | 0 | 0 | 67天Left右 | **12 | - |
|
|

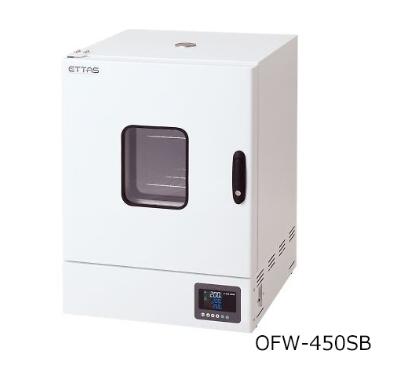

1-9000-32-22 | OFW-450SB | 450×447×450 | Left | Room temperature 20~320℃ | About 50 minutes | ±8℃(at320℃) | 1 set | 21,500.00 18,275.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|
1-9000-33-22 | OFW-600SB | 600×497×500 | Left | Room temperature 20~300℃ | About 90 minutes | ±10℃(at300℃) | 1 set | 25,500.00 21,675.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|
1-9000-34-22 | OFW-300SB-R | 300×327×300 | Right | Room temperature 20~320℃ | About 30 minutes | ±5℃(at320℃) | 1 set | 17,800.00 15,130.00 | 0 | 0 | 0 | 87天Left右 | **12 | - |
|
|
1-9000-35-22 | OFW-450SB-R | 450×447×450 | Right | Room temperature 20~320℃ | About 50 minutes | ±8℃(at320℃) | 1 set | 21,400.00 18,190.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|
1-9000-36-22 | OFW-600SB-R | 600×497×500 | Right | Room temperature 20~300℃ | About 90 minutes | ±10℃(at300℃) | 1 set | 25,400.00 21,590.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
※日本在库的情况下,从日本寄送大概需要18天Left右
Freight charge is extra
