Features:
※ Goods with inspection certificate refers to the products that have been inspected for control and motor at the time of leaving the factory and have been issued with inspection certificate
※ Charging IQ/OQ service.
Forced convection mode
3 sizes are available
Standard digital safety device
Bright large LCD screen
Color LCD disy with good visibility improves operability
In addition to easy to confirm the measured value and set value of PV,SV two-stage disy, but also use the anti-temperature setting temperature disy
Standard with 8 step 4 mode program functions, according to the amount of sample, size from 4 types to choose.
PID temperature control, can carry out high precision, stable temperature management
Specifications:
Temperature control range: room temperature 20~270°C
Temperature control mode :PID control,SSR output
Additional functions: program specifications → Maximum 8 steps ×4 modes of program functions
Safety device: digital set to prevent over-lift function, over-current circuit breaker, wire breaking mechanism (heater off when the sensor is broken)
Temperature sensor :K thermocouple ×2 (temperature control, prevent over rise × 1 each)
External/internal installation: coated steel powder /SUS304(part of SUS443J1)
Power supply :AC100V50/60Hz line length :2.4m(3P plug)

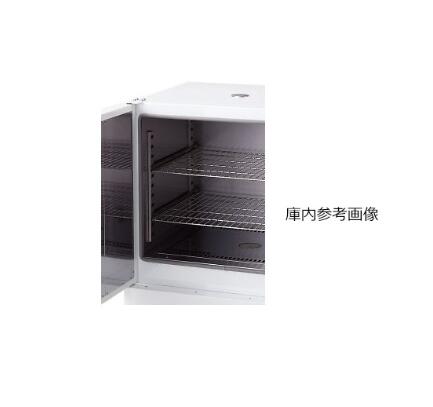

Accessories: shelf ×2 pieces · Shelf guide ×2 sets
Accessories: Check check file
※ Products that come with inspection documents refer to Azwan's original service that implements control at the factory, inspects electric organs, and issues inspection documents.
※ Provide IQ/OQ service for a fee.
※ Do not put combustible substances into the storage.
【 Specification sheet 】
| Picture | Number | Model | Inside dimensions (mm) | The door | Maximum temperature arrival time | Temperature distribution (JTMK05) | Temperature variation (JIS) | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-2125-31-22 | OFP-300V | 300×327×300 | Left | About 20 minutes | ±3℃(at270℃) | ±1℃(at270℃) | 1 set | 14,800.00 12,580.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|

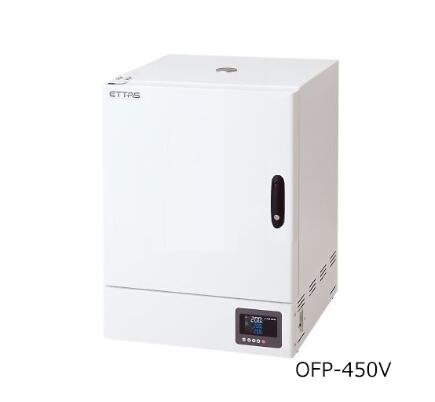

1-2125-32-22 | OFP-450V | 450×447×450 | Left | About 45 minutes | ±8℃(at270℃) | ±1℃(at270℃) | 1 set | 16,800.00 14,280.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|

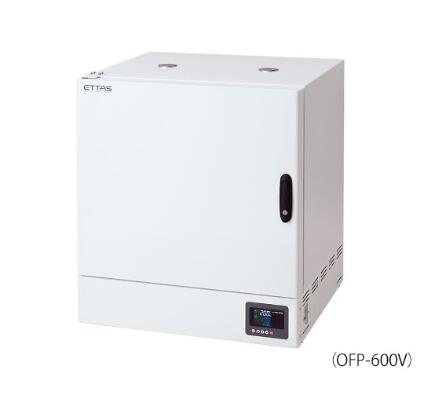

1-2125-33-22 | OFP-600V | 600×497×500 | Left | About 55 minutes | ±8℃(at270℃) | ±1.5℃(at270℃) | 1 set | 19,900.00 16,915.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|
1-2125-34-22 | OFP-300V-R | 300×327×300 | Right | About 20 minutes | ±3℃(at270℃) | ±1℃(at270℃) | 1 set | 14,800.00 12,580.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|
1-2125-35-22 | OFP-450V-R | 450×447×450 | Right | About 45 minutes | ±8℃(at270℃) | ±1℃(at270℃) | 1 set | 16,800.00 14,280.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|
1-2125-36-22 | OFP-600V-R | 600×497×500 | Right | About 55 minutes | ±8℃(at270℃) | ±1.5℃(at270℃) | 1 set | 19,900.00 16,915.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
※日本在库的情况下,从日本寄送大概需要18天Left右
Freight charge is extra
