Features:
准确控制库内温度.
In order to facilitate pipe distribution and operation, the vacuum pump connection valve and vacuum gauge are located at the front operating panel
Double doors made of tempered glass doors and polycarbonate for their protective effect.
Heat-resistant silicone pad, strong durability, good air tightness.
In addition to easy to confirm the measured value and set value of PV,SV two-stage disy, but also use to prevent excessive temperature disy
Standard timer (4 kinds), program operation (16 steps 8 modes). Functions include temperature recording (Bluetooth® communication) and output AC100V1A when errors occur
【 Wireless Recorder App features 】
The measured temperature and set temperature can be confirmed even at a distance.
Record the measured temperature and set temperature in the substrate memory at certain intervals.
Intuitive operation even without manual.
Read data will be automatically converted into CSV format attachments, just enter the email address can be sent to the computer and other attachments, attachments can be opened by EXCEL and other table calculation software, you can chart the data, or edit it, make a form
Read data, even if the power is off the data will be stored in the substrate until the data is deleted.
Start/stop recording from APP, delete record.
The record will automatically stop when the memory is full.
Specifications:
附带验证的商品是在发货前在AZONE实施FAT(FactoryAcceptanceTest)的AZONE原创服务.
Verification before delivery (FAT).
After ordering, we will send you the FAT n (n) and implement the FAT.-- after you sign and return
Attached documents :FAT Report/Proofreading Certificate with measuring instrument
※ Attached is Azwan's original FAT Instruction book (see the lower left sample of the screen).
Temperature point: temperature 1, vacuum degree
Additional functions: timer function/program function/week · time specified timer
Sensor :K thermocouple x 2 (temperature control and prevent excessive rise with 1 each)
Safety device: prevent excessive rise function (digital set), self-diagnosis function (heater break detection, sensor abnormal detection), overcurrent circuit breaker
通信功能:规格:BluetoothSmart(Bluetooth4.2)/距离:Class2(约10m)
Recorder function: Recording period :2 seconds /10 seconds /30 seconds /1 minute /10 minutes /60 minutes
Disy period :2 seconds /10 seconds /30 seconds /60 seconds /300 seconds
Recording mode: Full stop (stop recording with full memory)
Record format :CSV format
▼ Corresponds to OS:iOS11.4 and later
▼对应机种:iPhone5s・5c・6・6Plus・6s・6sPlus・SE・7・7Plus・8・8Plus・X
Additional functions: timer (ON timer, OFF timer, SV start, ON/OFF timer)/ Maximum 16 steps ×8 modes of temperature gradient program/week/time specified timer

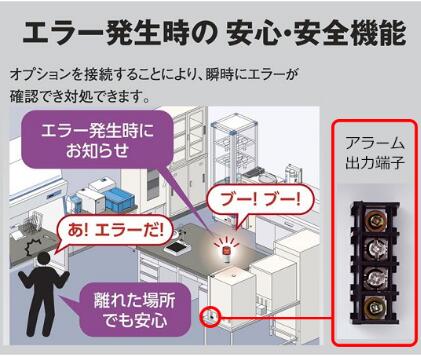

Error output :AC100V1A output (M4 terminal station)
Material
▼ Exterior: baking paint coating
:SUS30
▼ Shelf: Aluminum
▼ Valve, piping, fittings: Brass (C-3771,C-3604)
▼ Vacuum gauge: Brass (C2680TW,C3604BD)
▼ Door washer: silicone rubber
▼ Observation window: tempered glass (thick 10mm), polycarbonate protection te
Power cord length :60m
Accessories: shelf ×2 pieces
Heating mode: tank heating mode
Temperature setting range :10°C
Vacuum range :30kPa
Control mode :PID control ·SSR output
Valve diameter: outer diameter φ60mm
※ For on-site IQOQ, please consult separately. When quoting, installation address is required.
【 Specification sheet 】

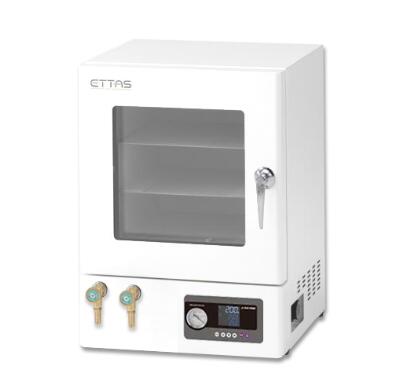

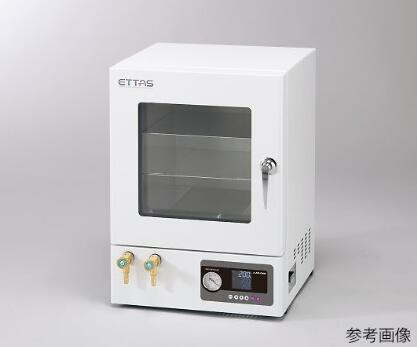

| Picture | Number | Model | Storage capacity (L) | External dimensions (mm) | Inside dimensions (mm) | Heater capacity | Power supply | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-7547-51-28 | AVO-200SB | 8 | 343×376×509 | 200×200×200 | 800W | AC100V50/60Hz8A | 1 set | 23,500.00 19,975.00 | 0 | 0 | 0 | 45 days or so | **12 | - |
|
|
1-7547-52-28 | AVO-250SB | 15 | 393×426×559 | 250×250×250 | 800W | AC100V50/60Hz8A | 1 set | 28,285.00 24,042.00 | 0 | 0 | 0 | 45 days or so | **12 | - |
|
|
1-7547-53-28 | AVO-310SB | 30 | 453×486×619 | 310×310×310 | 1360W | AC100V50/60Hz14A | 1 set | 35,780.00 30,413.00 | 0 | 0 | 0 | 45 days or so | **12 | - |
※ It takes about 18 days to ship from Japan in case of storage in Japan
Freight charge is extra
