Features:
実測値と設定値の確認が容易なPV・SV二段表示に加え,過昇温防止設定温度表示を採用しています。—

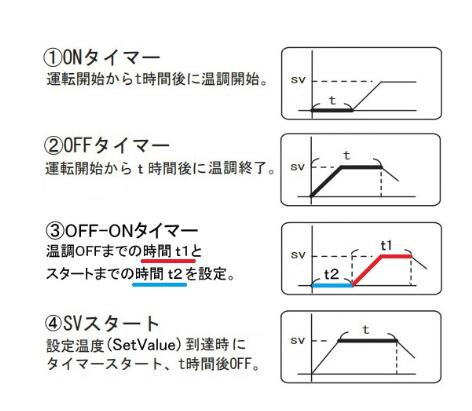

4種類のタイマー機能(在・・开/关・SVスタート)を標準装備し,試料の量・サイズに合わせて4タイプからお選びいただけます。—
——————————————————————————
※
Specifications:
Attached inspection book
Temperature adjustment range: room temperature 20~300℃
Temperature variation (JIS) :±3℃ (at 300℃)
Temperature control mode :PID control · SSR output
Additional functions: timer design, gas jacket natural convection →ON timer, OFF timer, SV start, ON/OFF timer
Safety device: independent device to prevent over-heating (can set the working temperature digitally), over-current circuit breaker, wire breaking mechanism (heater OFF when the sensor is broken)
Heater capacity :1400 W
Temperature sensor :K thermocouple ×2 (temperature control and prevention of excessive temperature increase × 1 each)
Exterior/Interior: steel powder coating/stainless steel (SUS 304)
Exhaust port :φ32mm×2
Power supply :AC 100 V 50/60 Hz line length 2 m (3 P plug)
Rated current: 14.5A
Shelf weight resistance :5 kg
Accessories: shelf × shelf weight :5 kg
Accessories: shelf ×2 pieces · Shelf rail ×2 sets
Attachment file: Check check file
※ Products with inspection books refer to the AZONE original service that controls the delivery, inspects the motor system, and issues inspection books.
Can correspond to the verification service (IQ/OQ) goods. Please be sure to inquire.
* Verification service refers to the service of qualification verification (IQ) and operation performance qualification verification (OQ) during installation at the customer's site, and submission of inspection documents
※ Do not put combustible substances into the storage.
【 Specification sheet 】
| Picture | Number | Model | Capacity (L) | Maximum temperature arrival time | Temperature distribution (JTMK05) | Temperature gradient (JIS) | Inside dimensions | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-9381-51-22 | EO-600V | 150 | About 70 minutes | ±7(at300℃) | 23℃(at300℃) | 600×500×500mm | 1 set | 14,100.00 11,985.00 | 0 | 0 | 0 | 27 days or so | **12 | - |
|
|
1-9381-52-22 | EO-700V | 135 | About 55 minutes | ±7℃(at300℃) | 25℃(at300℃) | 450×430×700mm | 1 set | 14,600.00 12,410.00 | 0 | 0 | 0 | 27 days or so | **12 | - |
※ It takes about 18 days to ship from Japan in case of storage in Japan
Freight charge is extra
