Features:

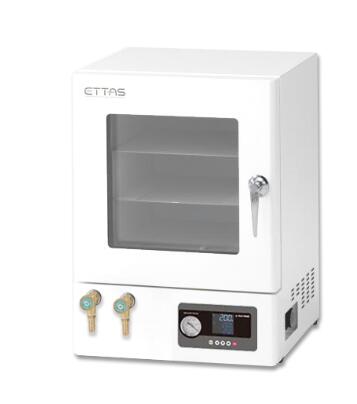

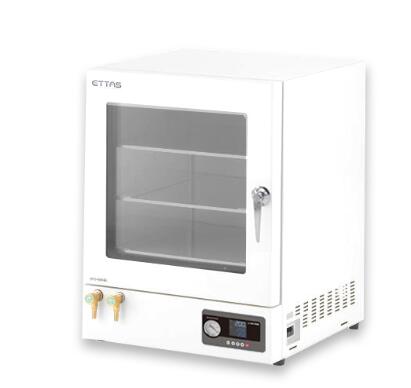

Vacuum dryer standard model.
The valve and vacuum gauge for the vacuum pump connection are configured in the front operating panel part for easy piping and operation
Double-layer doors (toughened glass doors and polycarbonate doors for protection)
Use heat-resistant packaging, durability, good air tightness.
In addition to easy to confirm the measured value and set value of PV,SV two-stage disy, but also use the anti-temperature setting temperature disy
Temperature control, anti-rise Settings can be set by numbers, standard models.
Specifications:
附带验证的商品是在发货前在AZONE实施FAT(FactoryAcceptanceTest)的AZONE原创服务.
Verification before delivery (FAT).
After ordering, we will send you the FAT n (n) and implement the FAT.-- after you sign and return
Attached documents :FAT Report/Proofreading Certificate with measuring instrument
※ Attached is Azwan's original FAT Instruction book (see the lower left sample of the screen).
Temperature point: temperature 1, vacuum degree

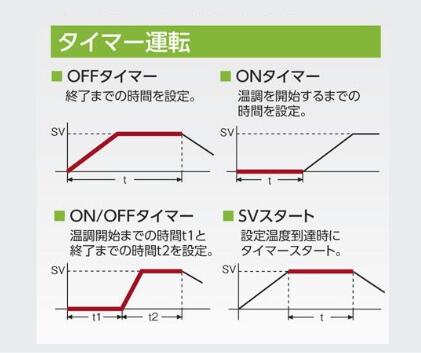

Additional functions: timer function (ON,OFF,ON,OFF timer,SV start)
Sensor :K thermocouple x 2 (temperature control, prevent overrise with 1 each)
Safety device: prevent over-rise function (digital set), self-diagnosis function (heater break detection, sensor abnormal detection), over-current circuit breaker
Material
▼ External installation: Baked steel coating
▼ Interior :SUS304
▼ Shelf: Aluminum
▼ Valve, piping, joint: brass (C-3771,C-3604)
▼ Vacuum meter: Brass (C2680TW,C3604BD)
▼ Door seal: silicone rubber
Heating mode: tank heating mode
Temperature setting range :40~220°C
Vacuum range :0.1~101kPa
Control mode :PID control,SSR output
Valve diameter: outer diameter φ13mm
※ Local IQOQ please consult separately if necessary. When quoting, installation address is required.
【 Specification sheet 】
| Picture | Number | Model | Storage capacity (L) | ▼ Observation window | External dimensions (mm) | Inside dimensions (mm) | Heater capacity | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-2186-12-28 | AVO-250V | 15 | Reinforced glass (12mm thick), polycarbonate protective te | 393×426×559 | 250×250×250 | 800W | 1 set | 26,437.00 22,471.00 | 0 | 0 | 0 | 45 days or so | **12 | - |
|
|
1-2186-13-28 | AVO-310V | 30 | Reinforced glass (12mm thick), polycarbonate protective te | 453×486×619 | 310×310×310 | 1360W | 1 set | 33,900.00 28,815.00 | 0 | 0 | 0 | 45 days or so | **12 | - |
|
|
1-2186-14-28 | AVO-450V | 91 | Reinforced glass (15mm thick), polycarbonate protective te | 594×630×770 | 450×450×450 | 1680W | 1 set | 66,000.00 56,100.00 | 0 | 0 | 0 | 45 days or so | **12 | - |
※ It takes about 18 days to ship from Japan in case of storage in Japan
Freight charge is extra
