Features:
【ETTAS · S series common features 】
Standard equipped with digital overlift prevention device.
Adopt three-level PID control method, reduce the overshoot and downshoot in a wide range of temperature range.4 kinds of timer functions, in addition to the week, time specified timer, but also equipped with 16 step 8 mode program function, is a comprehensive product
LCD disy with good visibility and operability.
With the connection option, you can immediately understand the error and take action.(
Alarm options
)
【 Wireless recorder application characteristics 】
The measured temperature and set temperature can be confirmed from a distance.
The measured temperature and the set temperature are stored in the memory in the substrate at a certain interval
Intuitive operation even without a manual.
The recorded data read is automatically converted into a CSV format attachment, which can be sent to the computer by simply entering the email address. Use EXCEL and other spreadsheet software to open files, draw charts, edit, create forms you can do.
Even if the recorded data is read, the data will remain in the board even if the power is turned off before deletion.
Start/stop and delete records from the application.
【6 safe and secure functions 】
(1) PV/SV.-- can be confirmed from a distance
Even without a manual, it can be operated intuitively.
(2) Transfer the recorded data to the computer, making charts, etc., is also very simple!
The recorded data read is automatically converted into a CSV format file, which you can easily transfer to your computer via email.③ Peace of mind in case of error · Security features
With connection options, errors can be confirmed and processed instantly.
(4) High precision temperature regulation 3-stage PID control
Low temperature area, medium temperature area, high temperature area can be respectively PID control. Will reduce overshoot, undershoot.
(5) Digital set to prevent overrise function
The function of preventing overrise of operating temperature can be set digitally. After reaching the set value, the heater is turned off.
Variable air volume (forced convection mode)
The simulation feeling can be set to HI,MID,LOW 3 stages. A slight infatuated body is not easy to fly away
Specifications:
温度控制范围:室温+20~300℃
Temperature variation (JIS) :±3℃ (at 300℃)
Temperature control mode: 3-level PID control,SSR output
Communication function: Specifications :Bluetooth Smart (Bluetooth 4.2)/Distance :Class 2 (about 10 m)
Recorder function :
▼ Recording mode: Full stop (stop recording with full memory)
▼ Recording cycle :2 seconds /10 seconds /30 seconds /60 seconds /10 minutes /60 minutes
▼ Disy cycle :2 seconds /10 seconds /30 seconds /60 seconds /300 seconds
External application :
▼ Functions: record start/stop, read/delete record data/transfer to PC/list disy, trend chart disy (can be enlarged, reduced)
▼ Record form :CSV format
▼对应机种:iPhone 5 s・5 c・6・6 Plus・6 s・6 s・6 s・6 s・6 s Plus・SE・7・7 Plus・8・8 Plus・X
Additional functions: timer (ON timer, OFF timer, SV start, ON/OFF timer)/Maximum 10 steps ×8 modes of temperature gradient program/week · Timing timer
Safety device: digital device to prevent over-lift function, over-current circuit breaker, and light burning mechanism (heater OFF when the sensor breaks the line)
Temperature sensor :K thermocouple ×2 (temperature control, prevent over rise × 1 each)
Power supply :AC 10 V 50/60 Hz line length 30 m (3 P plug)
Accessories: shelf ×2 pieces · Shelf rail ×2 sets
Accessories: Check check data
※ Inspection inspection attached to the goods refers to the inspection data, this is Azwan's original service, the implementation of control at the time of delivery, the inspection of electric engine related personnel, the issuance of inspection books.
Can correspond to the verification service (IQ/OQ) goods. Please be sure to inquire.
* Verification service refers to the service of qualification verification (IQ) and operation performance qualification verification (OQ) during installation at the customer's site, and submission of inspection documents
※ Do not put combustible substances into the storage.
【 Specification sheet 】
| Picture | Number | Model | Inside dimensions (mm) | The door | Maximum temperature arrival time | Temperature distribution (JTMK05) | Temperature gradient (JIS) | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-9004-41-22 | ONW-300SB | 300×327×300 | Left | About 35 minutes | ±4℃(at300℃) | 11℃(at300℃) | 1 set | 14,100.00 11,985.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|

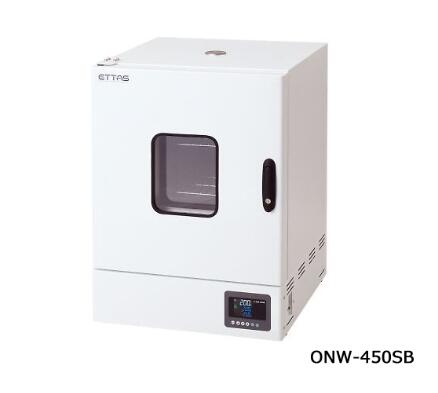

1-9004-42-22 | ONW-450SB | 450×447×450 | Left | About 40 minutes | ±8℃(at300℃) | 25℃(at300℃) | 1 set | 15,700.00 13,345.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|

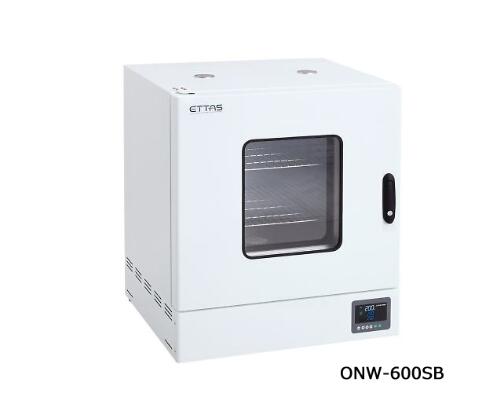

1-9004-43-22 | ONW-600SB | 600×497×500 | Left | About 80 minutes | ±6℃(at300℃) | 22℃(at300℃) | 1 set | 19,100.00 16,235.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|
1-9004-44-22 | ONW-300SB-R | 300×327×300 | Right | About 35 minutes | ±4℃(at300℃) | 11℃(at300℃) | 1 set | 14,100.00 11,985.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|
1-9004-45-22 | ONW-450SB-R | 450×447×450 | Right | About 40 minutes | ±8℃(at300℃) | 25℃(at300℃) | 1 set | 15,700.00 13,345.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|
1-9004-46-22 | ONW-600SB-R | 600×497×500 | Right | About 80 minutes | ±6℃(at300℃) | 22℃(at300℃) | 1 set | 19,100.00 16,235.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
※日本在库的情况下,从日本寄送大概需要18天Left右
Freight charge is extra
