Features:

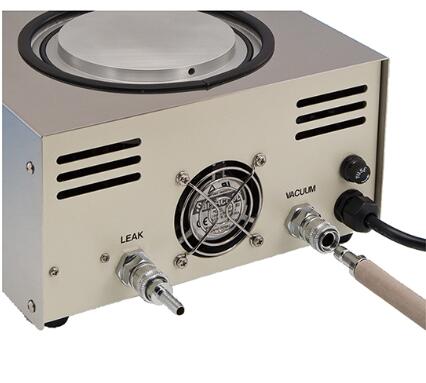

Use vacuum range /-0.1MPa ~ atmospheric pressure (this product is dedicated for decompression) heating time/about 25 minutes to 200℃ (heating time after automatic tuning is completed) Vacuum pump suction port/hose port φ6.5mm one-button type (leakage port is the same) safety device/built-in thermal fuse

Specifications:

Model: BV-001
Quality: 4.0kg
Height H(mm) : 290
Width W(mm) : 225
纵深D(mm)：240
Power supply: AC100V 50/60Hz 2.5A
Temperature adjustment range: 5 ~ 35℃
Heater capacity: 200W
Disy: Pressure disy/vacuum gauge, Bourdon tube type, scale -0.1MPa ~ 0 ~ 0.1MPa
Temperature sensor: K thermocouple
Temperature setting range: 40 ~ 200℃
Slot (inner diameter) size: φ105×90 (H) mm
Temperature control mode: PID control with automatic tuning function

Power supply Note :
The commodity power supply is AC100V, please be sure to use with 100V transformer.
Related transformer products, please refer to Chinese 2019 No. 477 page /2017 No. 884 page or directly consult our company.

【 Specification sheet 】

Picture	Number	Model	Sales Packaging	RMB(tax included)	Beijing inventory	Shanghai inventory	Japanese inventory	Refer to delivery date	Query NO.	Purchase quantity
	61-4427-75	050880-001	1	21,300.00 18,105.00	0	0	0	About 80 days	**22	-

※ It takes about 18 days to ship from Japan in case of storage in Japan
