Features:

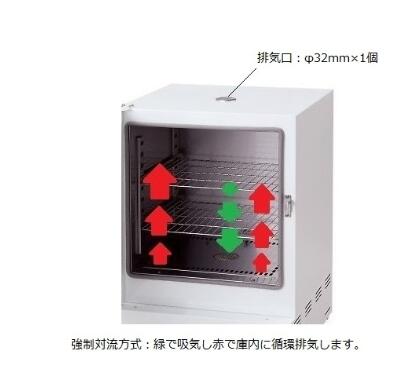

Forced convection mode
Available in 3 sizes
Rece the basic model
Digital safety device standard equipment
Bright large-size LCD screen
Use color LCD disy with excellent visibility to improve operability
In addition to the PV·SV two-stage disy that is easy to confirm the measured value and set value, the set temperature disy is also used to prevent over-heating
Standard equipped with 4 timer functions (ON,OFF,ON,OFF,SV start), can be selected from 4 types according to the size of the test material.
Temperature control using PID control, can achieve high precision, stable temperature management
Specifications:
The goods with verification are the original AZONE services of FAT (Factory AcceptanceTest) implemented on AZONE before shipment.
Verification before delivery (FAT).
After ordering, we will send you the FAT n (n) and implement the FAT.-- after you sign and return
Attached documents :FAT Report/Proofreading Certificate with measuring instrument
※ Attached is Azwan's original FAT Instruction book (see the lower left sample of the screen).
Temperature point :270℃ 9 points
Temperature control range: room temperature 20~270℃
Temperature control mode :PID control,SSR output
Additional functions: program specifications → Maximum 8 steps ×4 modes of program functions
Safety device: digital set to prevent over-lift function, over-current circuit breaker, wire breaking mechanism (heater off when the sensor is broken)
Temperature sensor :K thermocouple ×2 (temperature control, prevent over rise × 1 each)
Exterior/interior: Coated steel powder /SUS 304 (part SUS 443 J 1)
Power Supply :AC 100 V 50/60 Hz line length: 2.4m (3 P plug)
Accessories: shelf ×2 pieces · Shelf guide ×2 sets
※ Do not put combustible substances into the storage.
※ Please consult separately if you wish to visit local IQOQ. When quoting, installation address is required.
【 Specification sheet 】
| Picture | Number | Model | Inside dimensions (mm) | The door | Maximum temperature arrival time | Temperature distribution (JTMK05) | Temperature variation (JIS) | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-2125-31-28 | OFP-300V | 300×327×300 | Left | About 20 minutes | ±3℃(at270℃) | ±1℃(at270℃) | 1 set | 13,800.00 11,730.00 | 0 | 0 | 0 | 45天Left右 | **12 | - |
|
|
1-2125-32-28 | OFP-450V | 450×447×450 | Left | About 45 minutes | ±8℃(at270℃) | ±1℃(at270℃) | 1 set | 15,800.00 13,430.00 | 0 | 0 | 0 | 45天Left右 | **12 | - |
|
|
1-2125-33-28 | OFP-600V | 600×497×500 | Left | About 55 minutes | ±8℃(at270℃) | ±1.5℃(at270℃) | 1 set | 18,800.00 15,980.00 | 0 | 0 | 0 | 45天Left右 | **12 | - |
|
|
1-2125-34-28 | OFP-300V-R | 300×327×300 | Right | About 20 minutes | ±3℃(at270℃) | ±1℃(at270℃) | 1 set | 13,800.00 11,730.00 | 0 | 0 | 0 | 45天Left右 | **12 | - |
|
|
1-2125-35-28 | OFP-450V-R | 450×447×450 | Right | About 45 minutes | ±8℃(at270℃) | ±1℃(at270℃) | 1 set | 15,800.00 13,430.00 | 0 | 0 | 0 | 45天Left右 | **12 | - |
|
|
1-2125-36-28 | OFP-600V-R | 600×497×500 | Right | About 55 minutes | ±8℃(at270℃) | ±1.5℃(at270℃) | 1 set | 18,800.00 15,980.00 | 0 | 0 | 0 | 45天Left右 | **12 | - |
※日本在库的情况下,从日本寄送大概需要18天Left右
Freight charge is extra
