Features:
Color LCD disy with good visibility improves operability
In addition to easy to confirm the measured value and set value of PV,SV two-stage disy, but also use to prevent excessive temperature disy
Through natural convection to ensure that even powder, lighter material will not fly away.

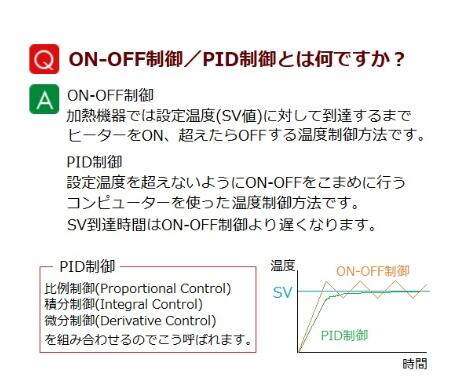

Temperature control using PID control, can be accurate and stable temperature management
Includes key to improve security.
Specifications:
附带验证的商品是在发货前在AZONE实施FAT(FactoryAcceptanceTest)的AZONE原创服务.
Verification before delivery (FAT).
After ordering, we will send you the FAT n (n) and implement the FAT.-- after you sign and return
Attached documents :FAT Report/Proofreading Certificate with measuring instrument
※ Attached is Azwan's original FAT Instruction book (see the lower left sample of the screen).
Temperature point :300°C9
Temperature adjustment range: room temperature 20~300°C
Temperature variation (JIS):±3°C(at300°C)
Temperature control mode :PID control · SSR output
Additional functions: timer design, gas jacket natural convection →ON timer, OFF timer, SV start, ON/OFF timer
Safety device: independent over-temperature prevention device (working temperature can be set digitally) · over-current circuit breaker · ignition mechanism (heater OFF when the sensor is broken)
Temperature sensor :K thermocouple ×2 (temperature control and overrise prevention × 1 each)
Exterior/interior: steel powder coating/stainless steel (SUS304)
Exhaust port :φ32mm×2
Power supply :AC100V50/60Hz line length 2m(3P plug)
Accessories: shelf ×2 pieces · Shelf guide ×2 sets
Field verification service (3P plug)IQ/OQ) is also compatible. Please do ask.
▼* On-site verification service is a service that performs installation qualification verification (IQ) and operation performance qualification verification (OQ) at the installation site and submits inspection documents
※ Do not put combustible substances into the storage.
※ Please consult separately if you wish to visit local IQOQ. When quoting, installation address is required.
【 Specification sheet 】
| Picture | Number | Model | Capacity (L) | Maximum temperature arrival time | Temperature distribution (JTMK05) | Temperature gradient (JIS) | Heater capacity | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-7477-51-28 | EO-300V | 27 | About 55 minutes | ±8℃(at300℃) | 31℃(at300℃) | 1000W | 1 set | 9,810.00 8,339.00 | 0 | 0 | 0 | 45 days or so | **12 | - |
|
|
1-7477-52-28 | EO-450V | 87 | About 60 minutes | ±7℃(at300℃) | 21℃(at300℃) | 1400W | 1 set | 10,900.00 9,265.00 | 0 | 0 | 0 | 45 days or so | **12 | - |
|
|
1-9381-51-28 | EO-600V | 150 | About 70 minutes | ±7(at300℃) | 23℃(at300℃) | 1400W | 1 set | 14,100.00 11,985.00 | 0 | 0 | 0 | 45 days or so | **12 | - |
|
|
1-9381-52-28 | EO-700V | 135 | About 55 minutes | ±7℃(at300℃) | 25℃(at300℃) | 1400W | 1 set | 14,600.00 12,410.00 | 0 | 0 | 0 | 45 days or so | **12 | - |
※ It takes about 18 days to ship from Japan in case of storage in Japan
Freight charge is extra
