Features:

実測値と設定値の確認が容易なPV・SV二段表示に加え,過昇温防止設定温度表示を採用しています。—
8ステップ4パターンのプログラム機能を標準装備し,試料の量・サイズに合わせて4タイプからお選びいただけます。—
——————————————————————————


※

Specifications:

With inspection book
Temperature adjustment range: room temperature 20~300℃
Temperature variation (JIS) :±3℃ (at 300℃)
Temperature control mode :PID control · SSR output
Additional functions: program function specifications · Gas jacket natural convection → program functions of up to 8 steps ×4 modes
Safety device: independent over-temperature prevention device (working temperature can be set digitally) · over-current circuit breaker · wire breaking mechanism (heater is closed when the sensor is broken)
Heater capacity :1400 W
Temperature sensor :K thermocouple ×2 (temperature control and overrise prevention × 1 each)
Exterior/Interior: steel powder coating/stainless steel (SUS 304)
Exhaust port :φ32mm×2
Power supply :AC 100 V 50/60 Hz line length 2 m (3 P plug)
Rated current: 14.5A
Shelf weight resistance :5 kg
Accessories: shelf ×2 pieces · Shelf load :5 kg
Accessories: shelf ×2 pieces · Shelf guide ×2 sets
Attachment file: Check check file
※ Products with inspection certificates refer to the AZONE original service that controls the delivery, checks the motor system, and issues inspection certificates.
Can correspond to the verification service (IQ/OQ) goods. Please be sure to inquire.
* Verification service refers to the service of qualification verification (IQ) and operation performance qualification verification (OQ) during installation at the customer's site, and submission of inspection documents
※ Do not put combustible substances into the storage.

【 Specification sheet 】


Number

Model

Capacity (L)

Maximum temperature arrival time

Temperature distribution (JTMK05)

Temperature gradient (JIS)

Inside dimensions

Sales Packaging

RMB(tax included)

Beijing inventory

Shanghai inventory

Japanese inventory

Refer to delivery date

Query NO.

Purchase quantity

1-9382-41-22

EOP-600V

150

About 70 minutes

±7(at300℃)

23℃(at300℃)

600×500×500mm

1 set

14,900.00 12,665.00

0

0

0

27 days or so

**12

-

1-9382-42-22

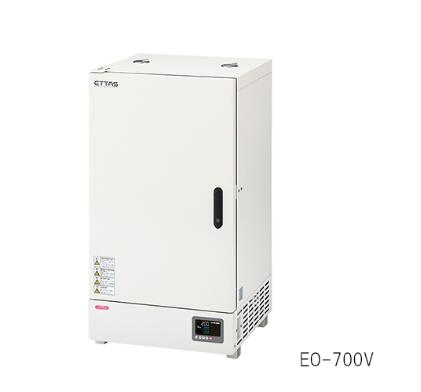

EOP-700V

135

About 55 minutes

±7℃(at300℃)

25℃(at300℃)

450×430×700mm

1 set

14,947.00 12,705.00

0

0

0

27 days or so

**12

-

※ It takes about 18 days to ship from Japan in case of storage in Japan

Freight charge is extra
