Features:

In addition to the weekly timer with clock function, it is also equipped with 16 steps and 8 mode program functions
Standard digital setting independent temperature rise prevention device.
Handle (bounce type) part with lock.

Specifications:

Temperature setting range (°C): Room temperature 50~650
Convection mode: natural convection

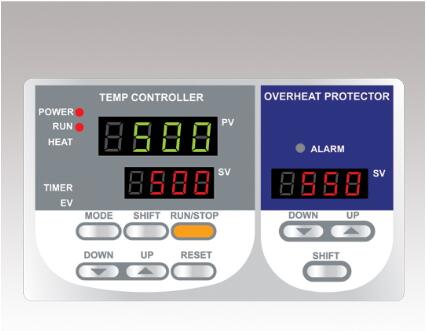

Temperature control mode: 3-stage PID control · SSR output
Function: timing function, program function
Safety device: digital temperature set independent heating prevention device · burn mechanism (heater is off when the sensor is broken) · overcurrent circuit breaker
Exterior/interior: Steel/stainless steel (SUS310)
Accessories: shelf guide rail, shelf ×2 sets (load resistance :15kg)
Accessories: Check check file
※ The product with inspection book refers to Azwan's original service that checks control and motor related personnel and distributes the inspection book upon delivery.
※ Provide IQ/OQ service for a fee.
※ Do not put combustible substances into the storage.

【 Specification sheet 】


Number

Model

Internal dimensions (mm)

Storage capacity

External dimensions

The weight

Power supply

Sales Packaging

RMB(tax included)

Beijing inventory

Shanghai inventory

Japanese inventory

Refer to delivery date

Query NO.

Purchase quantity

2-7833-11-22

HTO-300S

300×337×300

30L

510×597×820mm

About 33kg

100V AC 50/60Hz(3P plug)13.5A

1 set

26,200.00 22,270.00

0

0

0

67 days or so

**12

-

2-7833-12-22

HTO-450S

450×450×450

91L

660×707×970mm

About 50kg

AC100V50/60Hz Round terminal connection (without plug)18.5A

1 set

34,200.00 29,070.00

0

0

0

27 days or so

**12

-

※ It takes about 18 days to ship from Japan in case of storage in Japan

Freight charge is extra
