Features:
実測値と設定値の確認が容易なPV・SV二段表示に加え,過昇温防止設定温度表示を採用しています。—
8ステップ4パターンのプログラム機能を標準装備し,試料の量・サイズに合わせて4タイプからお選びいただけます。—
——————————————————————————
Specifications:
The goods with verification are the original AZONE services of FAT (Factory AcceptanceTest) implemented on AZONE before shipment.
Verification before delivery (FAT).
After ordering, we will send you the FAT n (n) and implement the FAT.-- after you sign and return
Attached documents :FAT Report/Proofreading Certificate with measuring instrument
※ Attached is Azwan's original FAT Instruction book (see the lower left sample of the screen).
Temperature point :300℃ 9 points
Temperature adjustment range: room temperature 20~300℃
Temperature variation (JIS) :±3℃ (at 300℃)
Temperature control mode :PID control · SSR output
Additional functions: program function specifications · Gas jacket natural convection → program functions of up to 8 steps ×4 modes
Safety device: independent over-temperature prevention device (working temperature can be set digitally) · over-current circuit breaker · wire breaking mechanism (heater is closed when the sensor is broken)
Temperature sensor :K thermocouple ×2 (temperature control and overrise prevention × 1 each)
Exterior/interior: Coated steel powder/stainless steel (SUS 304)
Exhaust port :φ32mm×2
Power supply :AC 100 V 50/60 Hz line length 2 m (3 P plug)
Accessories: shelf ×2 pieces · Shelf guide ×2 sets
On-site verification service (IQ/ rail ×2 group) OQ) is also supported. Please be sure to ask.
▼* On-site verification service is a service that performs installation qualification verification (IQ) and operation performance qualification verification (OQ) at the installation site and submits inspection documents
※ Do not put combustible substances into the storage.
※ Please consult separately if you wish to visit local IQOQ. When quoting, installation address is required.
【 Specification sheet 】
| Picture | Number | Model | Capacity (L) | Maximum temperature arrival time | Temperature distribution (JTMK05) | Temperature gradient (JIS) | Heater capacity | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-7478-41-28 | EOP-300V | 27 | About 55 minutes | ±8℃(at300℃) | 31℃(at300℃) | 1000W | 1 set | 10,300.00 8,755.00 | 0 | 0 | 0 | 45 days or so | **12 | - |
|
|

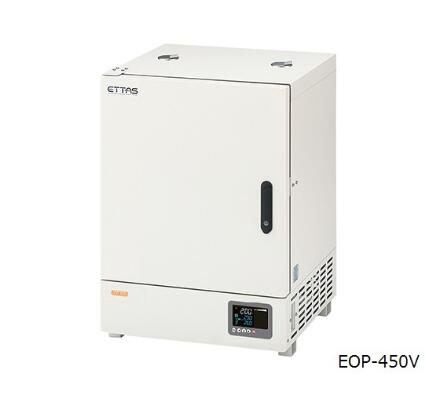

1-7478-42-28 | EOP-450V | 87 | About 60 minutes | ±7℃(at300℃) | 21℃(at300℃) | 1400W | 1 set | 11,700.00 9,945.00 | 0 | 0 | 0 | 45 days or so | **12 | - |
|
|

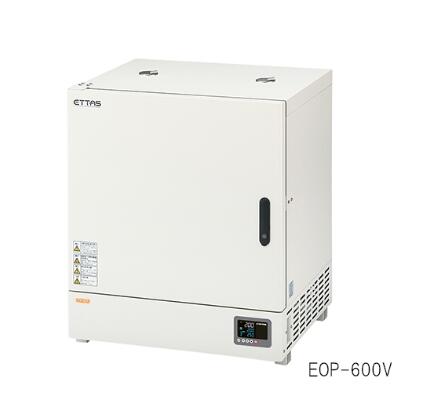

1-9382-41-28 | EOP-600V | 150 | About 70 minutes | ±7(at300℃) | 23℃(at300℃) | 1400W | 1 set | 14,900.00 12,665.00 | 0 | 0 | 0 | 45 days or so | **12 | - |
|
|
1-9382-42-28 | EOP-700V | 135 | About 55 minutes | ±7℃(at300℃) | 25℃(at300℃) | 1400W | 1 set | 14,947.00 12,705.00 | 0 | 0 | 0 | 45 days or so | **12 | - |
※ It takes about 18 days to ship from Japan in case of storage in Japan
Freight charge is extra
