Features:

Natural convection/forced convection switching type, one machine dual-use
Natural convection/forced convection can be switched by switching the gate.
Adopt 3-stage PID control to achieve less overshoot and temperature rise
Standard week, time specified timer and 16 steps 8 types of programming functions.
In addition to easy to confirm the measured value and set value of PV,SV two-stage disy, but also use to prevent excessive temperature disy

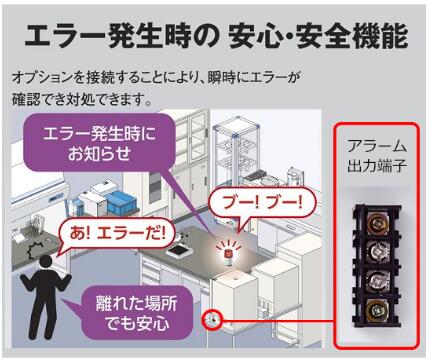

When an error occurs, you can output AC100V1A.
The PID control temperature controller is configured with the temperature curve adjustable programming function of up to 16 steps and 8 modes
Can remotely view the current temperature, can be chart disy (enlarge/shrink), record the start/stop operation

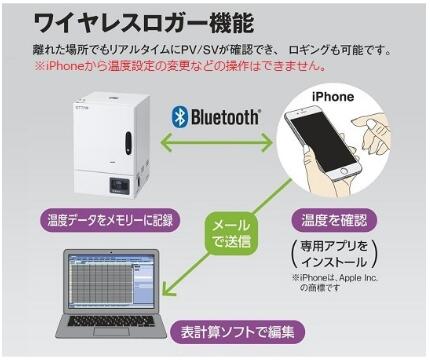

Using Bluetooth(R) communication, the current temperature can be viewed through the iPhone terminal, chart disy, record start/stop,PC transmission (CSV format) operation.
The iPhone APP is intuitive to operate without a manual.

Specifications:

附带验证的商品是在发货前在AZONE实施FAT(FactoryAcceptanceTest)的AZONE原创服务.
Verification before delivery (FAT).
After ordering, we will send you the FAT n (n) and implement the FAT.-- after you sign and return
Attached documents :FAT Report/Proofreading Certificate with measuring instrument
※ Attached is Azwan's original FAT Instruction book (see the lower left sample of the screen).
Temperature point :240°C9 points ×2
Temperature setting range (°C): Room temperature 20~240
Convection mode: natural convection/forced convection switching mode
Temperature control mode: 3-stage PID control · SSR output
Function: timing function, program function
Safety device: over-current circuit breaker, independent over-rise prevention function, burning mechanism (heater OFF when the sensor is broken)
Material: External/stainless steel melamine paint, internal/stainless steel (SUS304)
※ Do not put combustible substances into the storage.
※ Please consult separately if you wish to visit local IQOQ. When quoting, installation address is required.

【 Specification sheet 】


Number

Model

Internal dimensions (mm)

Storage capacity

External dimensions

The weight

Power supply

Sales Packaging

RMB(tax included)

Beijing inventory

Shanghai inventory

Japanese inventory

Refer to delivery date

Query NO.

Purchase quantity

2-7856-21-28

MOV-300SB

300×300×300

27L

455×440×650mm

About 30kg

100V AC 50/60Hz11.5A(3P plug)

1 set

26,232.00 22,297.00

0

0

0

45 days or so

**12

-

2-7856-22-28

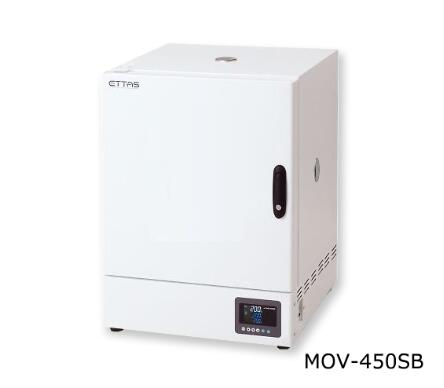

MOV-450SB

450×450×450

91L

605×590×792mm

About 50kg

100V AC 50/60Hz13.5A(3P plug)

1 set

31,066.00 26,406.00

0

0

0

45 days or so

**12

-

※ It takes about 18 days to ship from Japan in case of storage in Japan
