Features:
Forced pair flow mode
3
ベーシックタイプをモデルチェンジ
————————
実測値と設定値の確認が容易なPV・SV二段表示に加え,過昇温防止設定温度表示を採用しています。—
4種類のタイマー機能(在・・开/关・SVスタート)を標準装備し,試料の量・サイズに合わせて4タイプから選択できます。—
Specifications:
The goods with verification are the original AZONE services of FAT (Factory AcceptanceTest) implemented on AZONE before shipment.
Verification before delivery (FAT).
After ordering, we will send you the FAT n (n) and implement the FAT.-- after you sign and return
Attached documents :FAT Report/Proofreading Certificate with measuring instrument
※ Attached is Azwan's original FAT Instruction book (see the lower left sample of the screen).
Temperature point :270℃ 9 points
Temperature control range: room temperature 20~270℃
Temperature control mode :PID control,SSR output
Additional functions: timer specification →ON timer, OFF timer, SV start, ON/OFF timer
Safety device: digital set to prevent over-rise function, over-current circuit breaker, burning mechanism (heater OFF when the sensor is broken)
Temperature sensor :K thermocouple ×2 (temperature control, prevent over rise × 1 each)
Exterior/interior: Coated steel powder /SUS 304 (part SUS 443 J 1)
Power Supply :AC 100 V 50/60 Hz line length: 2.4m (3 P plug)
Accessories: shelf ×2 pieces · Shelf guide ×2 sets
※ Do not put combustible substances into the storage.
※ Please consult separately if you wish to visit local IQOQ. When quoting, installation address is required.
【 Specification sheet 】
| Picture | Number | Model | Inside dimensions (mm) | The door | Maximum temperature arrival time | Temperature distribution (JTMK05) | Temperature variation (JIS) | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-2126-21-28 | OFW-300V | 300×327×300 | Left | About 20 minutes | ±3℃(at270℃) | ±1℃(at270℃) | 1 set | 13,900.00 11,815.00 | 0 | 0 | 0 | 45天Left右 | **12 | - |
|
|

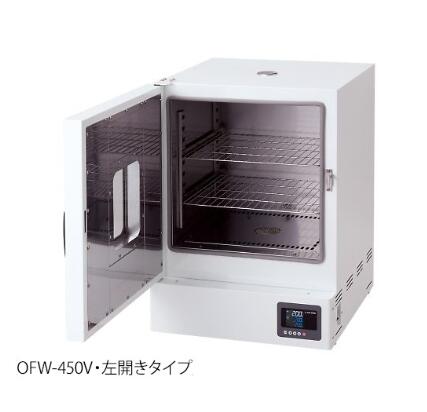

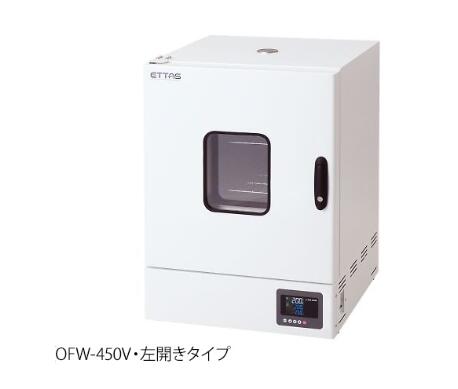

1-2126-22-28 | OFW-450V | 450×447×450 | Left | About 45 minutes | ±8℃(at270℃) | ±1℃(at270℃) | 1 set | 16,000.00 13,600.00 | 0 | 0 | 0 | 45天Left右 | **12 | - |
|
|
1-2126-23-28 | OFW-600V | 600×497×500 | Left | About 55 minutes | ±8℃(at270℃) | ±1.5℃(at270℃) | 1 set | 18,600.00 15,810.00 | 0 | 0 | 0 | 85天Left右 | **12 | - |
|
|
1-2126-24-28 | OFW-300V-R | 300×327×300 | Right | About 20 minutes | ±3℃(at270℃) | ±1℃(at270℃) | 1 set | 13,900.00 11,815.00 | 0 | 0 | 0 | 45天Left右 | **12 | - |
|
|
1-2126-25-28 | OFW-450V-R | 450×447×450 | Right | About 45 minutes | ±8℃(at270℃) | ±1℃(at270℃) | 1 set | 16,000.00 13,600.00 | 0 | 0 | 0 | 45天Left右 | **12 | - |
|
|
1-2126-26-28 | OFW-600V-R | 600×497×500 | Right | About 55 minutes | ±8℃(at270℃) | ±1.5℃(at270℃) | 1 set | 18,600.00 15,810.00 | 0 | 0 | 0 | 45天Left右 | **12 | - |
※日本在库的情况下,从日本寄送大概需要18天Left右
Freight charge is extra
