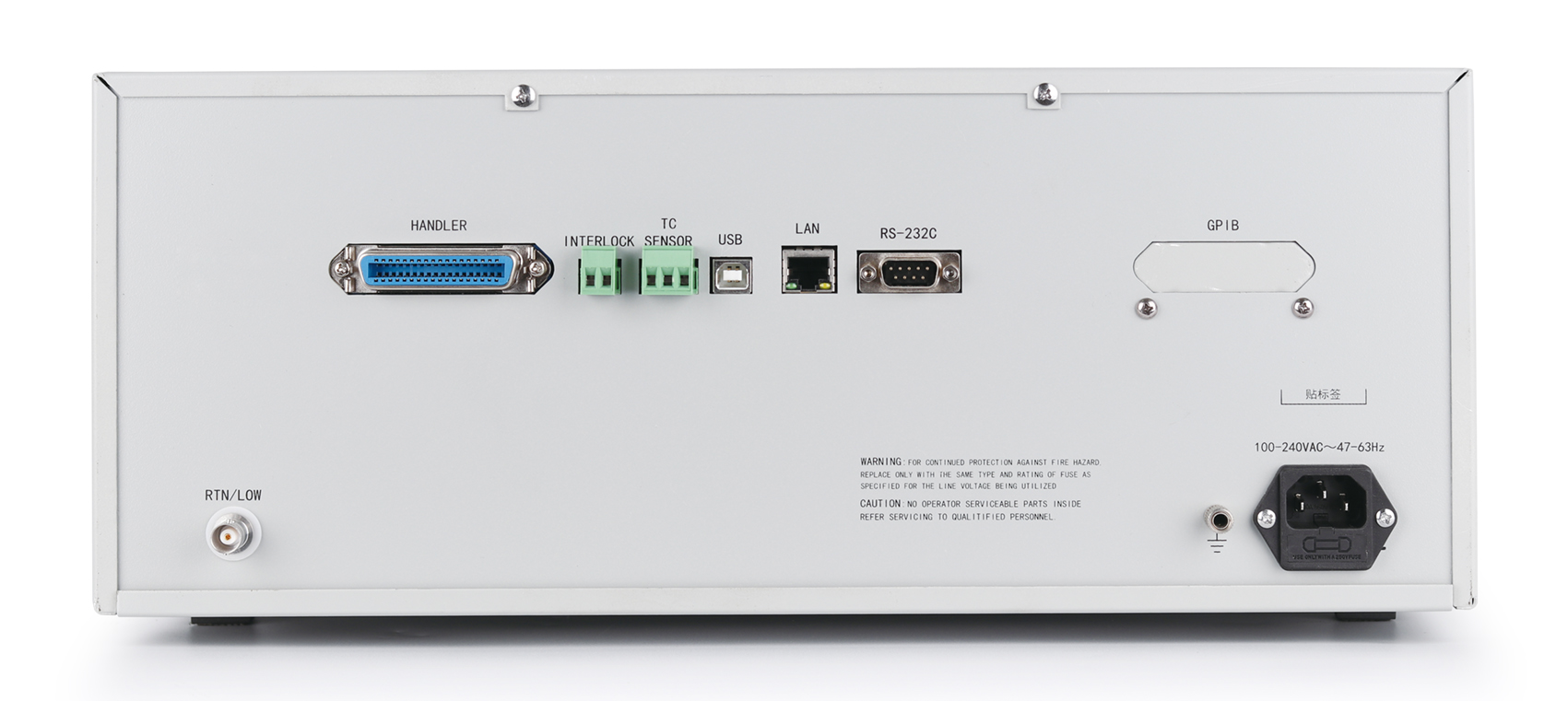

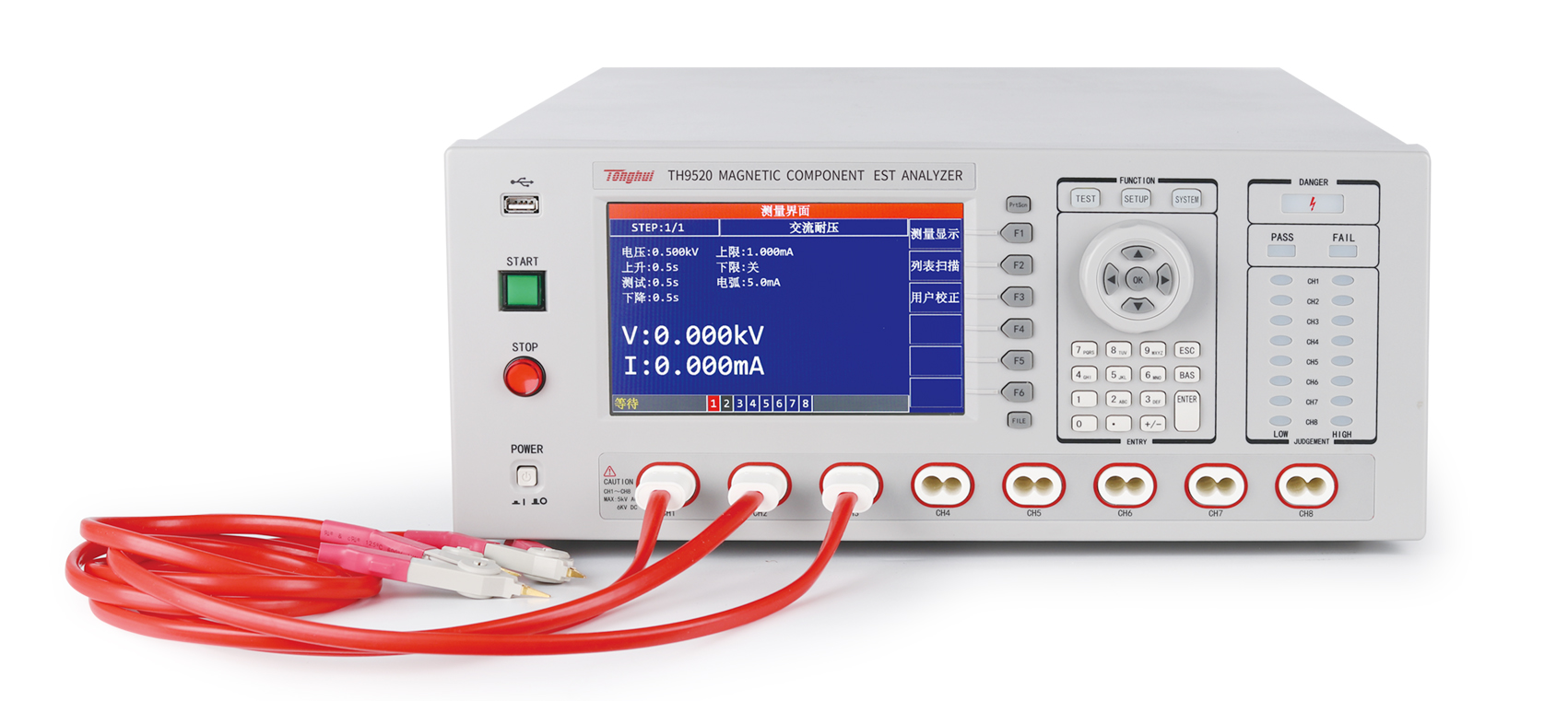

Technical parameters
Product model
TH9520
TH9520A
Number of channels
8
Withstand pressure test
Output voltage
AC
0.050 - 5.000kV Step by step 0.001kV , frequency 50Hz/60Hz ±0.1% Sinusoidal waveform
DC
0.050 - 6.000kV Step by step 0.01kV
Accuracy
±(1% Set value + 0.1% Full scale )
Adjust the rate
≤(1% Output + 0.1% Full scale ) Rated power
Current range
AC
Voltage ≤4.000kV ： 0.001mA - 120.0mA;
Voltage＞ 4.000kV ： 0.001mA - 100.0mA.
0.001mA - 40.0mA
DC
0.1μA - 20.00mA
0.1μA - 10.00mA
Accuracy
±(1% Read + 0.5% Full scale )
Output功率
AC
500VA
200VA
DC
120VA
60VA
ARC The arc
AC
1.0mA - 20.0mA , 0.1mA Step
DC
1.0mA - 10.0mA , 0.1mA Step
Insulation resistance test
Output voltage
Range
0.050 - 5.000kV Step by step 0.01kV
0.050 - 1.000kV Step by step 0.01kV
Accuracy
±(1% Set value + 0.1% Full scale )
±(1% Set value + 0.1% Full Range )
Resistance test range
0.100MΩ - 50.00GΩ Resolution: 0.1MΩ
0.100MΩ - 10.00GΩ Resolution: 0.1MΩ
测量Accuracy
≥500V
1.000MΩ - 1.000GΩ , ±(3% Read +5 One word )
1.000GΩ - 10.00GΩ , ±(7% Read +5 One word )
10.00GΩ - 50.00GΩ , ±(10% Read +5 One word )
<500V
0.100MΩ - 1.000GΩ , ±(7% Read +5 One word )
1.000GΩ - 50.00GΩ ,仅供参考无Accuracy要求
Time setting
Rise time
OFF , 0.1s - 999.9s Step by step 0.1s
Test time
0.7s - 999.9s Step by step 0.1s
Drop time
OFF , 0.1s - 999.9s Step by step 0.1s
Wait time
OFF , 0.1s - 999.9s Step by step 0.1s
Interturn insulation test
Output脉冲Voltage
0.1kV - 6.000kV , 0.01kV Step, ±5% Set the value ±15V
0.1kV - 3.000kV , 0.01kV Step, ±5% Set the value ±15V
Inductance test range
≥10μH
Pulse energy
The maximum 0.36 Joule
Waveform sampling
Sample rate: 12bit Sampling speed: 200MHz , 8 Level adjustable, storage depth: 12k Byte , sample average: 1 - 32
Number of applied pulses
The maximum到32个
Determination method
Area comparison, area difference comparison, corona discharge, phase difference comparison
OSC on short circuit detection function
Temperature compensation function
Optional Pt500A, temperature compensation, temperature conversion
Dc low resistance test /△ and Y resistance test Test signal
100 mΩ 1A , 1Ω 0.5A Other ≤3V
Test range
0.01mΩ - 1.2MΩ
Resistance
Range
0.01mΩ - 120.00mΩ
0.1mΩ - 1200.0mΩ
0.001Ω - 12.000Ω
0.01Ω - 120.00kΩ
0.1kΩ - 1200.0kΩ
Accuracy
±(0.5% Read +0.04% Full scale )
±(0.3% Read +0.03% Full scale )
±(0.2% Read +0.03% Full scale )
±(0.1% Read +0.03% Full scale )
±(0.2% Read +0.03% Full scale )
Inductance test
Standard with
Optional
Test parameters
Ls , Lp , Rs , Rp , Q
Measurement accuracy
0.5%
Test frequency
100Hz , 120Hz , 1kHz , 10kHz , 100kHz
Test signal电平
1.0Vrms , 10% Accuracy
