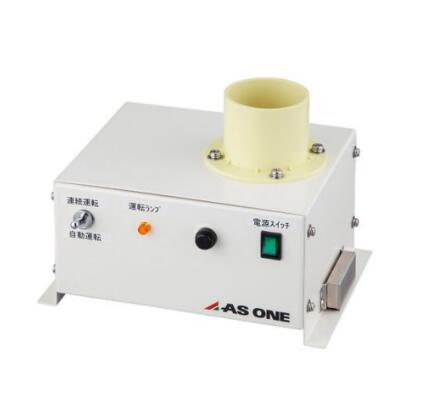

Features:

Auxiliary measuring hole exhaust to promote the discharge of steam and fume in the warehouse.

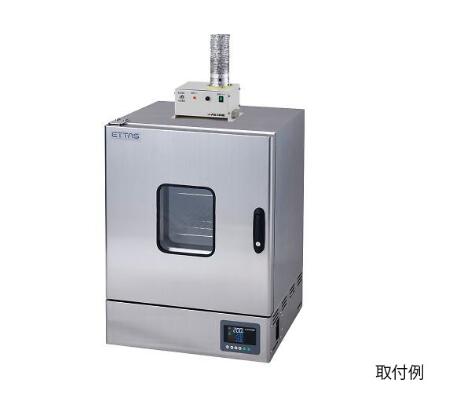

After installation of conduits (sold separately), exhaust gas can be easily delivered to the fume hood and ventilation fan.
When the internal temperature of the device rises, the automatic operation mode will automatically start to exhaust.

Specifications:

Pipe flange diameter (mm):Φ65
Dimension diameter (mm):220×195×160
Body material: steel (painting)
Air volume (50/60Hz):0.36/0.44m3/min※ Fan unit capacity
Maximum static pressure (50/60Hz):53/76Pa※ Fan unit capacity
Mode switching: continuous operation/automatic operation
Installation: Magnetic
Power supply :AC100V50/60Hz0.08A
Power cord length :2m(2P plug)
※ There is no function of returning air to the warehouse.
※ Set part of the surface temperature: maximum 90°C(dryer set temperature: standard 250°C or so)

Power supply Note :
The commodity power supply is AC100V, please be sure to use with 100V transformer.
Related transformer products, please refer to Chinese 2019 No. 477 page /2017 No. 884 page or directly consult our company.

【 Specification sheet 】

Picture	Number	Model	Sales Packaging	RMB(tax included)	Beijing inventory	Shanghai inventory	Japanese inventory	Refer to delivery date	Query NO.	Purchase quantity
	4-2689-01	EXH-01	1 set	6,890.00 5,857.00	0	0	4		**12	-

※ It takes about 18 days to ship from Japan in case of storage in Japan
