Features:

Can be heated up to 650℃
With clock function, on the basis of the weekly timer, it also configures the programming function of 16 steps and 8 modes.

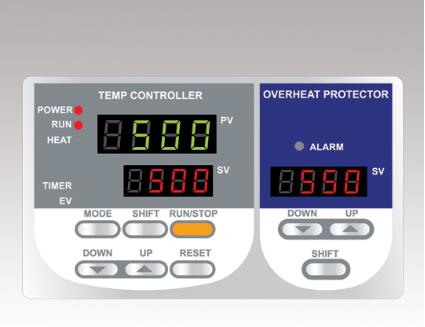

Standard digital setting type anti-overheating device
Handle part (pop-up) with lock.

Specifications:

附带验证的商品是在发货前在AZONE实施FAT(FactoryAcceptanceTest)的AZONE原创服务.
Verification before delivery (FAT).
After ordering, we will send you the FAT n (n) and implement the FAT.-- after you sign and return
Attached documents :FAT Report/Proofreading Certificate with measuring instrument
※ Attached is Azwan's original FAT Instruction book (see the lower left sample of the screen).
Temperature point :650°C9
Temperature setting range (°C): Room temperature 50~650
Convection mode: natural convection
Temperature control mode: 3-stage PID control ·SSR output
Function: timing function, program function
Safety device: digital temperature set independent heating prevention device · burn mechanism (heater is off when the sensor is broken)· overcurrent circuit breaker
Exterior/interior: Steel/stainless steel (SUS310)
Accessories: shelf rail, shelf ×2 sets (weight resistance :15kg)
Also supports local certification services (IQ/OQ). Please be sure to ask.
* Field verification service is the service of installation qualification verification (IQ) and Operation performance qualification verification (OQ) and submission of inspection documents at the installation site
※ Do not put combustible substances into the storage.
※ Please consult separately if you wish to visit local IQOQ. When quoting, installation address is required.

【 Specification sheet 】


Number

Model

Internal dimensions (mm)

Storage capacity

External dimensions

The weight

Power supply

Sales Packaging

RMB(tax included)

Beijing inventory

Shanghai inventory

Japanese inventory

Refer to delivery date

Query NO.

Purchase quantity

2-7833-11-28

HTO-300S

300×337×300

30L

510×597×820mm

About 33kg

100V AC 50/60Hz(3P plug)13.5A

1 set

26,200.00 22,270.00

0

0

0

85 days or so

**12

-

2-7833-12-28

HTO-450S

450×450×450

91L

660×707×970mm

About 50kg

AC100V50/60Hz Round terminal connection (without plug)18.5A

1 set

34,200.00 29,070.00

0

0

0

45 days or so

**12

-

※ It takes about 18 days to ship from Japan in case of storage in Japan

Freight charge is extra
