Features:

※ Goods with maintenance inspection book, factory control, motor system maintenance, issued inspection book after the factory.
※ Paid IQ/OQ service.
① Error notification function (peace of mind and safety)② Wireless data logger function ③ 3-stage PID control ④ Bright large LCD screen ⑤ variable air volume
【 Wireless recorder application characteristics 】
The measured temperature and set temperature can be confirmed even at a distance.
Record the measured temperature and set temperature in the substrate memory at certain intervals.
Intuitive operation even without manual.
Read data will be automatically converted into CSV format attachments, just enter the email address can be sent to the computer and other attachments, attachments can be opened by EXCEL and other table calculation software, you can chart the data, or edit it, make a form
Read data, even if the power is off the data will be stored in the substrate until the data is deleted.
Start/stop recording from APP, delete record.

Specifications:

Temperature control mode: 3-level PID control,SSR output
Additional functions: timer (ON timer, OFF timer, SV start, ON/OFF timer)/ Maximum 16 steps ×8 modes of temperature gradient program/week/time specified timer
Safety device: digital set to prevent over-lift function, over-current circuit breaker, flout mechanism (heater OFF when the sensor is broken)
Temperature sensor :K thermocouple ×2 (temperature control, prevent over rise × 1 each)
Exterior/interior :SUS430/SUS304(part of SUS443J1)
Power supply :AC100V50/60Hz line length 2.4m(3P plug)
Accessories: shelf ×2 pieces · Shelf guide ×2 sets
Attachment: Check inspection data
Products that correspond to the verification service (IQ/OQ). Please do ask.
* Verification service refers to the service of qualification verification (IQ) and operation performance qualification verification (OQ) during installation at the customer's site, and submission of inspection documents
Communication function: Specification :BluetoothSmart(Bluetooth 4.2)/ Distance :Class2(about 10 meters)
Recorder function :
▼ Recording mode: full stop (stop recording with full memory)
▼ Recording cycle :2 seconds /10 seconds /30 seconds /60 seconds /10 minutes /60 minutes
▼ Disy cycle :2 seconds /10 seconds /30 seconds /60 seconds /300 seconds
External applications :
▼ Functions: record start/stop, record data read/delete/transfer to PC/ disy list, trend chart disy (can be enlarged/reduced)
▼ Record format :CSV format
▼ Supported operating system :iOS11.4 or later
▼ Supported models :iPhone5s, 5c, 6.6 Plus, 6s, 6s, 6sPlus, SE, 7.7 Plus, 8.8 Plus, X
※ Do not put flammable substances into the storage.

【 Specification sheet 】


Number

Model

Inside dimensions (mm)

The door

Temperature adjustment range

Maximum temperature arrival time

Temperature distribution (JTMK05)

Sales Packaging

RMB(tax included)

Beijing inventory

Shanghai inventory

Japanese inventory

Refer to delivery date

Query NO.

Purchase quantity

1-8998-21-22

SOFW-300SB

300×327×300

Left

Room temperature 20~320℃

About 30 minutes

±5℃(at320℃)

1 set

20,700.00 17,595.00

0

0

0

67天Left右

**12

-

1-8998-22-22

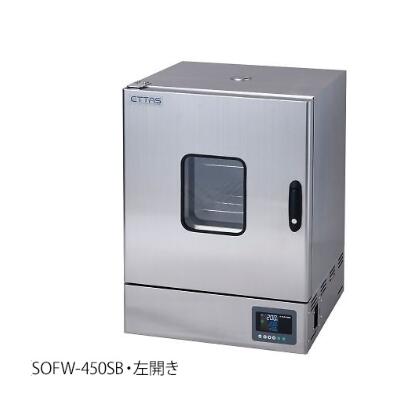

SOFW-450SB

450×447×450

Left

Room temperature 20~320℃

About 50 minutes

±8℃(at320℃)

1 set

23,900.00 20,315.00

0

0

0

27天Left右

**12

-

1-8998-23-22

SOFW-600SB

600×497×500

Left

Room temperature 20~300℃

About 90 minutes

±10℃(at300℃)

1 set

27,200.00 23,120.00

0

0

0

27天Left右

**12

-

1-8998-24-22

SOFW-300SB-R

300×327×300

Right

Room temperature 20~320℃

About 30 minutes

±5℃(at320℃)

1 set

20,700.00 17,595.00

0

0

0

27天Left右

**12

-

1-8998-25-22

SOFW-450SB-R

450×447×450

Right

Room temperature 20~320℃

About 50 minutes

±8℃(at320℃)

1 set

23,900.00 20,315.00

0

0

0

27天Left右

**12

-

1-8998-26-22

SOFW-600SB-R

600×497×500

Right

Room temperature 20~300℃

About 90 minutes

±10℃(at300℃)

1 set

27,200.00 23,120.00

0

0

0

27天Left右

**12

-

※日本在库的情况下,从日本寄送大概需要18天Left右

Freight charge is extra
