Features:

Very suitable for temperature control of target objects.
In order to facilitate pipe distribution and operation, the valve and vacuum gauge for vacuum pump connection are configured on the front operating panel
Double doors with reinforced glass doors and polycarbonate doors for protection.
Excellent durability and air tightness due to the use of heat-resistant silicon gaskets.
In addition to the PV·SV two-stage disy that is easy to confirm the measured value and set value, the set temperature disy is also used to prevent over-heating.

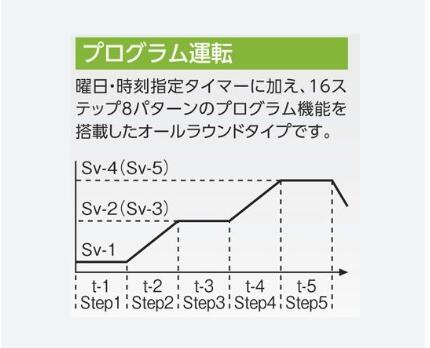

Standard timer (4 kinds) and program operation (16 steps 8 modes)

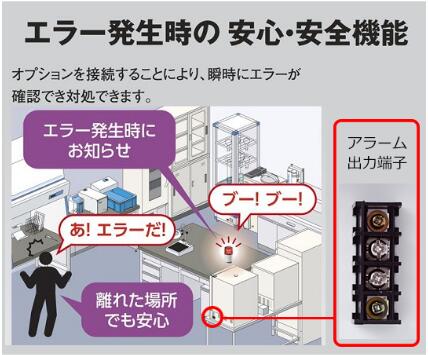

In addition to temperature recording (Bluetooth communication), it is also equipped with AC100V1A output in case of error.
Because the internal sensor directly measures the temperature of the specimen and adjusts the temperature, the gap between the specimen temperature and the set temperature is eliminated

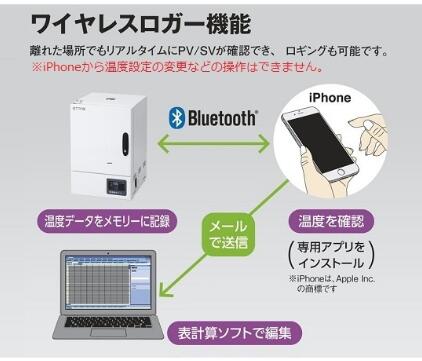

【 Wireless Recorder application features 】
The measured temperature and set temperature can be confirmed even from a distant position.
The measured temperature and set temperature are stored in the memory in the circuit board
Intuitive operation without instructions.
The recorded data is automatically converted into an attachment file in CSV format, which can be sent to the computer by simply entering the email address. The file can be opened by EXCEL and other table calculation software, and can be drawn, edited and created forms
Even if the recorded data is read, even if the power is turned off, the data remains in the board until it is deleted.
Start/stop and delete of records through the application.
Automatically stop recording when the memory is full.

Specifications:

Most suitable for the temperature control of the object.
In order to facilitate pipe distribution and operation, the valve and vacuum gauge for vacuum pump connection are configured in the front operation panel
Double doors with reinforced glass doors and polycarbonate doors for protection.
因为使用了耐热硅胶,以耐久性和密封性都很好.
In addition to the PV·SV two-stage disy that is easy to confirm the measured value and set value, the set temperature disy is also used to prevent over-heating
Standard equipped timer (4 kinds), program running (16 steps 8 modes). In addition to temperature recording (Bluetooth communication), AC100V1A output is also installed in case of error.
The gap between the detector temperature and the set temperature can be eliminated because the temperature is adjusted while the internal sensor is used to measure the detector temperature directly
【 Wireless recorder application characteristics 】
The measured temperature and set temperature can be confirmed from a distance.
The measured temperature and the set temperature are stored in the memory in the substrate at a certain interval
Intuitive operation even without a manual.
The recorded data read is automatically converted into a CSV format attachment, which can be sent to the computer by simply entering the email address. Use EXCEL and other spreadsheet software to open files, draw charts, edit, create forms you can do.
Even if the recorded data is read, the data will remain in the board even if the power is turned off before deletion.
Start/stop and delete records from the application.
When the memory is full, the recording will automatically stop.
Attachment file: Check check file
※ Products with inspection certificates refer to the AZONE original service that controls the delivery, checks the motor system, and issues inspection certificates.
Products that correspond to the verification service (IQ/OQ). Please do ask.
* Verification service refers to the service of qualification verification (IQ) and operation performance qualification verification (OQ) during installation at the customer's site, and submission of inspection documents

Power supply Note :
The commodity power supply is AC100V, please be sure to use with 100V transformer.
Related transformer products, please refer to Chinese 2019 No. 477 page /2017 No. 884 page or directly consult our company.

【 Specification sheet 】

Picture	Number	Model	Sales Packaging	RMB(tax included)	Beijing inventory	Shanghai inventory	Japanese inventory	Refer to delivery date	Query NO.	Purchase quantity
	1-7547-63-32	AVO-310SB-D	1 set	代替品Number::停止Sales	0	0	0	Another inquiry	**12	-

※ It takes about 18 days to ship from Japan in case of storage in Japan
