Features:
※点、検検査書付き商品とは,出荷時に制御・電動機関係の点検を実施し,検査書を発行するサービスです。—
※
①エラー発生時のお知らせ機能(安心・安全)②ワイヤレスデータロガー機能③3段PID制御④鮮やかな大型液晶画面—
デジタル式独立過昇防止装置を標準搭載しています。—
3段PID制御方式の採用により幅広い温度領域でのオーバーシュート・アンダーシュートが低減します。—
4種類のタイマー機能,曜日・時刻タイマーに加え,16ステップ8パターンのプログラム機能を搭載したオールラウンドタイプです。—
オプションを接続することで,瞬時にエラーがわかり対処できます。—
Specifications:
Temperature control range: room temperature 20~300℃
Temperature variation (JIS) :±3℃ (at 300℃)
Temperature control mode: 3-level PID control,SSR output
Communication function: Specifications :Bluetooth Smart (Bluetooth 4.2)/Distance :Class 2 (about 10 m)
Recorder function :
▼ Recording mode: Full stop (stop recording with full memory)
▼ Recording cycle :2 seconds /10 seconds /30 seconds /60 seconds /10 minutes /60 minutes
▼ Disy cycle :2 seconds /10 seconds /30 seconds /60 seconds /300 seconds
External application :
▼ Functions: record start/stop, read/delete record data/transfer to PC/list disy, trend chart disy (can be enlarged, reduced)
▼ Record format :CSV format
▼ Corresponding OS: after iOS 10
iPhone 5 5s·5c·6·6 Plus·6 s·6 s·6 s Plus·SE·7.7 Plus·8·8 Plus·X——
Additional functions: timer (ON timer, OFF timer, SV start, ON/OFF timer)/Maximum 10 steps ×8 modes of temperature gradient program/week/time specified timer
Safety device: digital set to prevent over-lift function, over-current circuit breaker, flout mechanism (heater OFF when the sensor is broken)
Temperature sensor :K thermocouple ×2 (temperature control, prevent over rise × 1 each)
Exterior/interior: Coated steel powder /SUS 30 (part SUS 60 J 1)
Power supply :AC 10 V 50/60 Hz line length 60 m (3 P plug)
Accessories: shelf ×2 pieces · Shelf guide ×2 sets
Attachment file: Check check file
※ Products with inspection certificates refer to the AZONE original service that controls the delivery, checks the motor system, and issues inspection certificates.
Can correspond to the verification service (IQ/OQ) goods. Please be sure to inquire.
* Verification service refers to the service of qualification verification (IQ) and operation performance qualification verification (OQ) during installation at the customer's site, and submission of inspection documents
※ Do not put combustible substances into the storage.
【 Specification sheet 】
| Picture | Number | Model | Inside dimensions (mm) | The door | Maximum temperature arrival time | Temperature distribution (JTMK05) | Temperature gradient (JIS) | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-9002-41-22 | ON-300SB | 300×327×300 | Left | About 35 minutes | ±4℃(at300℃) | 11℃(at300℃) | 1 set | 12,900.00 10,965.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|

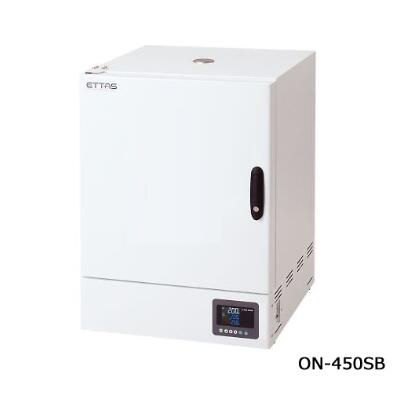

1-9002-42-22 | ON-450SB | 450×447×450 | Left | About 40 minutes | ±8℃(at300℃) | 25℃(at300℃) | 1 set | 14,300.00 12,155.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|

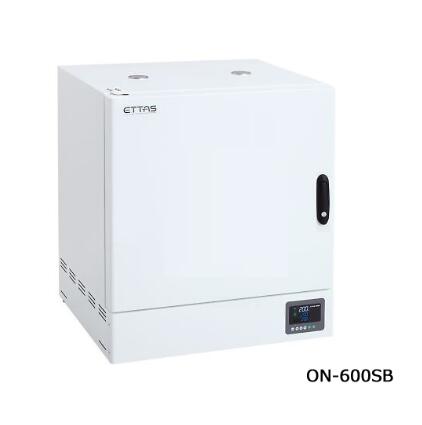

1-9002-43-22 | ON-600SB | 600×497×500 | Left | About 80 minutes | ±6℃(at300℃) | 22℃(at300℃) | 1 set | 17,500.00 14,875.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|

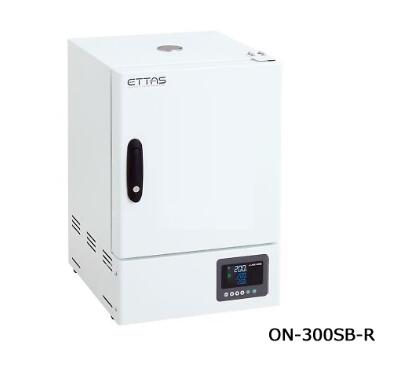

1-9002-44-22 | ON-300SB-R | 300×327×300 | Right | About 35 minutes | ±4℃(at300℃) | 11℃(at300℃) | 1 set | 12,900.00 10,965.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
|
|
1-9002-45-22 | ON-450SB-R | 450×447×450 | Right | About 40 minutes | ±8℃(at300℃) | 25℃(at300℃) | 1 set | 14,300.00 12,155.00 | 0 | 0 | 1 |
|
**12 | - |
|
|
1-9002-46-22 | ON-600SB-R | 600×497×500 | Right | About 80 minutes | ±6℃(at300℃) | 22℃(at300℃) | 1 set | 17,500.00 14,875.00 | 0 | 0 | 0 | 27天Left右 | **12 | - |
※日本在库的情况下,从日本寄送大概需要18天Left右
Freight charge is extra
