Features:

Color LCD disy with good visibility improves operability
In addition to easy to confirm the measured value and set value of PV,SV two-stage disy, but also use to prevent excessive temperature disy

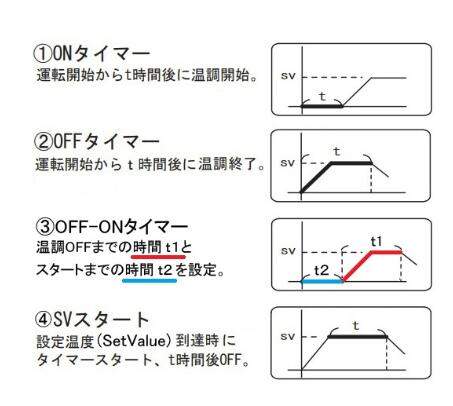

Standard 4 kinds of timer functions (starting from ON · OFF · ON/OFF · SV), can be selected from 4 types according to the number and size of the sample.
Through natural convection to ensure that even powder, lighter material will not fly away.
Temperature control using PID control, can be accurate and stable temperature management
Includes key to improve security.
※ Paid IQ/OQ service.

Specifications:

Attached inspection book
Temperature adjustment range: room temperature 20~300°C
Temperature variation (JIS):±3°C(at300°C)
Temperature control mode :PID control · SSR output
Additional functions: timer design, gas jacket natural convection →ON timer, OFF timer, SV start, ON/OFF timer
Safety device: independent device to prevent over-heating (can set the working temperature digitally), over-current circuit breaker, wire breaking mechanism (heater OFF when the sensor is broken)
Temperature sensor :K thermocouple ×2 (temperature control and prevention of excessive temperature increase × 1 each)
Exterior/interior: steel powder coating/stainless steel (SUS304)
Exhaust port :φ32mm×2
Power supply :AC100V50/60Hz line length 2m(3P plug)
Accessories: shelf ×2 pieces · Shelf guide ×2 sets
Attachment: Check check file
※ Inspection inspection documents attached to the inspection of the goods refers to the delivery of control, inspection by the relevant personnel of the electric organ, the issuance of the inspection of the original Azwan service.
Products that correspond to the verification service (IQ/OQ). Please do ask.
* Verification service refers to the service of qualification verification (IQ) and operation performance qualification verification (OQ) during installation at the customer's site, and submission of inspection documents
※ Do not put combustible substances into the storage.

【 Specification sheet 】


Number

Model

Capacity (L)

Maximum temperature arrival time

Temperature distribution (JTMK05)

Temperature gradient (JIS)

Heater capacity

Sales Packaging

RMB(tax included)

Beijing inventory

Shanghai inventory

Japanese inventory

Refer to delivery date

Query NO.

Purchase quantity

1-7477-51-22

EO-300V

27

About 55 minutes

±8℃(at300℃)

31℃(at300℃)

1000W

1 set

10,500.00 8,925.00

0

0

0

27 days or so

**12

-

1-7477-52-22

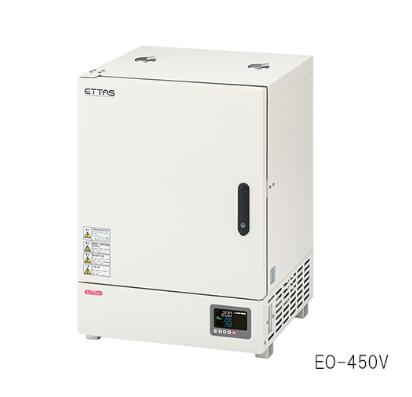

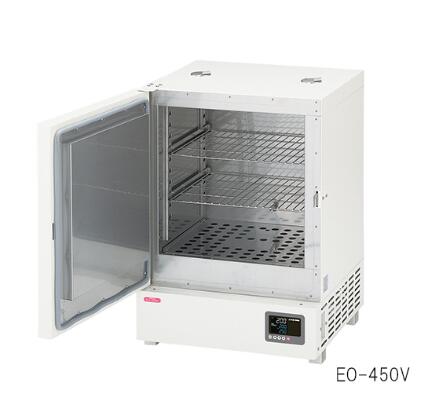

EO-450V

87

About 60 minutes

±7℃(at300℃)

21℃(at300℃)

1400W

1 set

12,000.00 10,200.00

0

0

0

27 days or so

**12

-

※ It takes about 18 days to ship from Japan in case of storage in Japan

Freight charge is extra
