Features:
Color LCD disy with good visibility improves operability
In addition to easy to confirm the measured value and set value of PV,SV two-stage disy, but also use to prevent excessive temperature disy
Standard 8-step 4-mode program function, can be selected from 4 types according to the number of samples, size.
Through natural convection to ensure that even powder, lighter material will not fly away.
Temperature control using PID control, can be accurate and stable temperature management
Includes key to improve security.
Specifications:
Temperature adjustment range: room temperature 20~300°C
Temperature variation (JIS):±3°C(at300°C)
Temperature control mode :PID control · SSR output
Additional functions: program function specifications · Gas jacket natural convection → program functions of up to 8 steps ×4 modes
Safety device: independent over-temperature prevention device (working temperature can be set digitally) · over-current circuit breaker · wire breaking mechanism (heater is closed when the sensor is broken)
Temperature sensor :K thermocouple ×2 (temperature control and overrise prevention × 1 each)
Exterior/interior: Spray steel powder/stainless steel (SUS304)
Exhaust port :φ32mm×2
Power supply :AC100V50/60Hz line length 2m(3P plug)
Accessories: shelf ×2 pieces · Shelf guide ×2 sets
Products that correspond to the verification service (IQ/OQ). Please do ask.
▼※ Verification service refers to the service that conducts installation qualification verification (IQ) and operation performance qualification verification (OQ) at the customer's site and submits inspection documents
※ Do not put combustible substances into the storage.
【 Specification sheet 】
| Picture | Number | Model | Capacity (L) | Maximum temperature arrival time | Temperature distribution (JTMK05) | Temperature gradient (JIS) | Heater capacity | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-7478-41 | EOP-300V | 27 | About 55 minutes | ±8℃(at300℃) | 31℃(at300℃) | 1000W | 1 set | 10,300.00 8,755.00 | 0 | 0 | 30 |
|
**12 | - |
|
|

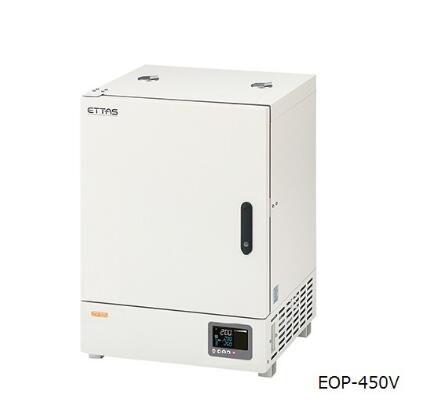

1-7478-42 | EOP-450V | 87 | About 60 minutes | ±7℃(at300℃) | 21℃(at300℃) | 1400W | 1 set | 11,700.00 9,945.00 | 0 | 0 | 49 |
|
**12 | - |
|
|

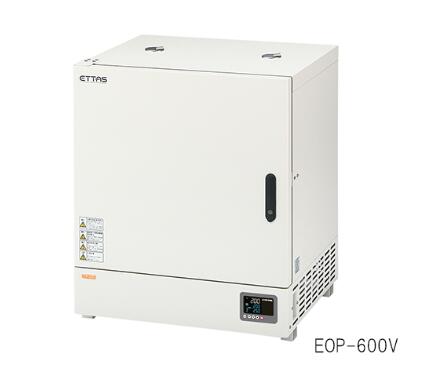

1-9382-41 | EOP-600V | 150 | About 70 minutes | ±7(at300℃) | 23℃(at300℃) | 1400W | 1 set | 14,900.00 12,665.00 | 0 | 0 | 33 |
|
**12 | - |
|
|
1-9382-42 | EOP-700V | 135 | About 55 minutes | ±7℃(at300℃) | 25℃(at300℃) | 1400W | 1 set | 14,947.00 12,705.00 | 0 | 0 | 9 |
|
**12 | - |
※ It takes about 18 days to ship from Japan in case of storage in Japan
Freight charge is extra
