Features:
① Error notification function (peace of mind and safety)② Wireless data logger function ③ 3-stage PID control ④ Bright large LCD screen ⑤ variable air volume
【 Wireless recorder application characteristics 】
The measured temperature and set temperature can be confirmed even at a distance.
Record the measured temperature and set temperature in the substrate memory at certain intervals.
Intuitive operation even without manual.
Read data will be automatically converted into CSV format attachments, just enter the email address can be sent to the computer and other attachments, attachments can be opened by EXCEL and other table calculation software, you can chart the data, or edit it, make a form
Read data, even if the power is off the data will be stored in the substrate until the data is deleted.
Start/stop recording from APP, delete record.
Specifications:
Temperature control mode: 3-level PID control,SSR output
Additional functions: timer (ON timer, OFF timer, SV start, ON/OFF timer)/ Maximum 16 steps ×8 modes of temperature gradient program/week/time specified timer
Safety device: digital set to prevent over-lift function, over-current circuit breaker, flout mechanism (heater OFF when the sensor is broken)
Temperature sensor :K thermocouple ×2 (temperature control, prevent over rise × 1 each)
Exterior/interior: stainless steel SUS304(SOFW), steel powder coating other /SUS304(part SUS443J1)
Power supply :AC100V50/60Hz line length 2.4m (3P plug)
Accessories: frame te ×2 pieces · Frame rail ×2 sets
通信功能:规格:BluetoothSmart(Bluetooth4.2)/距离:Class2(约10米)
Recorder function :
▼ Recording mode: full stop (stop recording with full memory)
▼ Recording cycle :2 seconds /10 seconds /30 seconds /16 seconds /304 minutes /60 minutes
▼ Disy cycle :2 seconds /10 seconds /30 seconds /60 seconds /300 seconds
External application :
▼ Functions: record start/stop, record data read/delete/transfer to PC/ list disy, trend chart disy (scalable)
▼ Record format :CSV format
▼ Supported operating system :iOS10 or later
▼支持的Model:iPhone5s·5c·6·6Plus·6s·6sPlus·SE·7·7Plus·8·8Plus·X
※ Do not put flammable substances into the storage.
【 Specification sheet 】

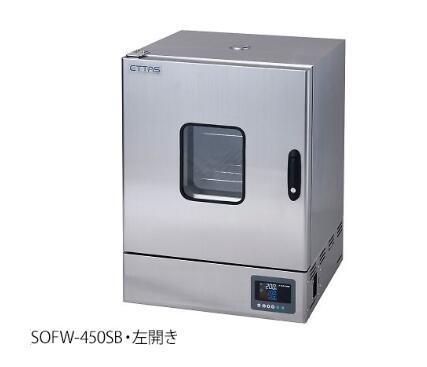

| Picture | Number | Model | Inside dimensions (mm) | The door | Temperature adjustment range | Maximum temperature arrival time | Temperature distribution (JTMK05) | Sales
Packaging |
RMB(含税) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-8998-21 | SOFW-300SB | 300×327×300 | Left | Room temperature 20~320℃ | About 30 minutes | ±5℃(at320℃) | 1 set | 19,600.00 16,660.00 | 0 | 0 | 0 | 58天Left右 | **12 | - |
|
|
1-8998-22 | SOFW-450SB | 450×447×450 | Left | Room temperature 20~320℃ | About 50 minutes | ±8℃(at320℃) | 1 set | 22,900.00 19,465.00 | 0 | 0 | 3 |
|
**12 | - |
|
|
1-8998-23 | SOFW-600SB | 600×497×500 | Left | Room temperature 20~300℃ | About 90 minutes | ±10℃(at300℃) | 1 set | 27,200.00 23,120.00 | 0 | 0 | 3 |
|
**12 | - |
|
|
1-8998-24 | SOFW-300SB-R | 300×327×300 | Right | Room temperature 20~320℃ | About 30 minutes | ±5℃(at320℃) | 1 set | 19,600.00 16,660.00 | 0 | 0 | 0 | 78天Left右 | **12 | - |
|
|
1-8998-25 | SOFW-450SB-R | 450×447×450 | Right | Room temperature 20~320℃ | About 50 minutes | ±8℃(at320℃) | 1 set | 22,900.00 19,465.00 | 0 | 0 | 1 |
|
**12 | - |
|
|
1-8998-26 | SOFW-600SB-R | 600×497×500 | Right | Room temperature 20~300℃ | About 90 minutes | ±10℃(at300℃) | 1 set | 27,200.00 23,120.00 | 0 | 0 | 5 |
|
**12 | - |
※日本在库的情况下,从日本寄送大概需要18天Left右
