Features:
Natural convection/forced convection switching type, one machine dual-use

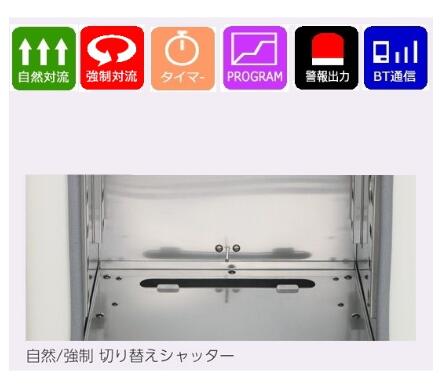

Natural convection/forced convection can be switched by switching the gate.
Adopt 3-stage PID control to achieve less overshoot and temperature rise
Standard week, time specified timer and 16 steps 8 types of programming functions.
In addition to easy to confirm the measured value and set value of PV,SV two-stage disy, but also use to prevent excessive temperature disy

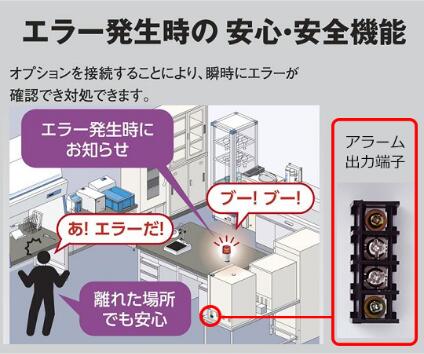

When an error occurs, you can output AC100V1A.
The PID control temperature controller is configured with the temperature curve adjustable programming function of up to 16 steps and 8 modes
Can remotely view the current temperature, can be chart disy (enlarge/shrink), record the start/stop operation
Using Bluetooth®(R) communication, the current temperature can be viewed through the iPhone terminal, chart disy, record start/stop,PC transmission (CSV format) operation.
The iPhone APP is intuitive to operate without a manual.
Specifications:
Temperature setting range (°C): Room temperature 20~240
Convection mode: natural convection/forced convection switching mode
Temperature control mode: 3-stage PID control · SSR output
Function: timing function, program function
Safety device: over current circuit breaker, independent over rise prevention function, burn mechanism (heater OFF when the sensor is broken)
Material: Exterior/steel melamine paint, interior/stainless steel (SUS304)
※ Do not put combustible substances into the storage.
【 Specification sheet 】
| Picture | Number | Model | Internal dimensions (mm) | Storage capacity | External dimensions | The weight | Power supply | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
2-7856-21 | MOV-300SB | 300×300×300 | 27L | 455×440×650mm | About 30kg | 100V AC 50/60Hz11.5A(3P plug) | 1 set | 21,900.00 18,615.00 | 0 | 0 | 8 |
|
**12 | - |
|
|

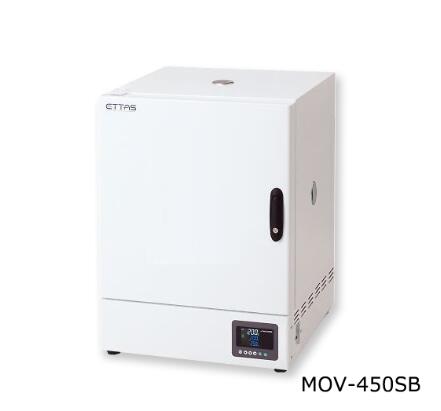

2-7856-22 | MOV-450SB | 450×450×450 | 91L | 605×590×792mm | About 50kg | 100V AC 50/60Hz13.5A(3P plug) | 1 set | 26,000.00 22,100.00 | 0 | 0 | 5 |
|
**12 | - |
※ It takes about 18 days to ship from Japan in case of storage in Japan
