Features:

Both interior and exterior are made of stainless steel, with good corrosion resistance and durability
The use of hot air forced circulation, high temperature distribution accuracy

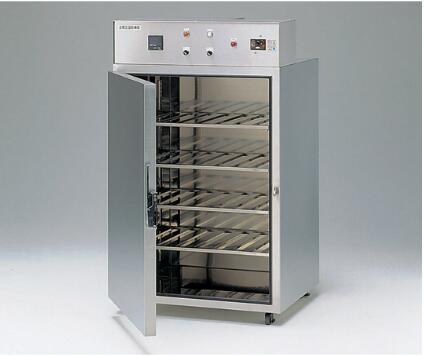

The shelf can be pulled forward, and the spacing can be freely changed

Specifications:

Convection mode: forced convection mode
Temperature setting range: room temperature 20~150°C
Temperature control mode/Accuracy/sensor :PID control /±1°C/K thermocouple
Inside and outside: stainless steel (SUS304)
Power supply: 3-phase 200V50/60Hz
Shelf load :60kg/ piece
※ Freight, handling fee, installation fee, assembly fee, etc. are also required. Please consult.
This is a product that supports verification services (IQ/OQ). Please do ask.
* Verification service is the service of installation qualification verification (IQ) and Operation performance qualification verification (OQ) and submission of inspection documents at the customer's site
※ Use wooden packaging (wooden frame, pallet, etc.)
※ Do not put combustible substances into the storage.

【 Specification sheet 】


Number

Model

Inside dimensions (mm)

External dimensions (mm)

Heater capacity

Storage capacity

The weight

Sales Packaging

RMB(tax included)

Beijing inventory

Shanghai inventory

Japanese inventory

Refer to delivery date

Query NO.

Purchase quantity

1-5197-01

FC-1000

750×580×1060

850×775×1495

Straight fin heater 3kW

461L

150kg(with shelf 165kg)

1 set

105,700.00

0

0

0

About 50 days

**22

-

1-5197-02

FC-2000

1000×760×1220

1100×1000×1770

Straight fin heater 6kW

927L

240kg(280kg with shelf)

1 set

151,000.00

0

0

0

About 55 days

**22

-

※ It takes about 18 days to ship from Japan in case of storage in Japan

Freight charge is extra
