Features:
Color LCD disy with good visibility improves operability
In addition to easy to confirm the measured value and set value of PV,SV two-stage disy, but also use to prevent excessive temperature disy
Standard 8-step 4-mode program function, can be selected from 4 types according to the number of samples, size.
Through natural convection to ensure that even powder, lighter material will not fly away.
Temperature control using PID control, can be accurate and stable temperature management
Includes key to improve security.
※ Paid IQ/OQ service.
Specifications:
With inspection book
Temperature adjustment range: room temperature 20~300°C
Temperature variation (JIS):±3°C(at300°C)
Temperature control mode :PID control · SSR output
Additional functions: program function specifications · Gas jacket natural convection → program functions of up to 8 steps ×4 modes
Safety device: independent over-temperature prevention device (working temperature can be set digitally) · over-current circuit breaker · wire breaking mechanism (heater is closed when the sensor is broken)
Temperature sensor :K thermocouple ×2 (temperature control and overrise prevention × 1 each)
Exterior/interior: Coated steel powder/stainless steel (SUS304)
Exhaust port :φ32mm×2
Power supply :AC100V50/60Hz line length 2m(3P plug)
Accessories: shelf ×2 pieces · Shelf guide ×2 sets
Attachment: Inspection book
※ With inspection inspection book, the so-called goods refer to the control at the time of delivery, the inspection of electric engine related personnel, the issue of inspection book of Azwan's original service.
Products that correspond to the verification service (IQ/OQ). Please do ask.
* Verification service refers to the service of qualification verification (IQ) and operation performance qualification verification (OQ) during installation at the customer's site, and submission of inspection documents
※ Do not put combustible substances into the storage.
【 Specification sheet 】
| Picture | Number | Model | Capacity (L) | Maximum temperature arrival time | Temperature distribution (JTMK05) | Temperature gradient (JIS) | Heater capacity | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-7478-41-22 | EOP-300V | 27 | About 55 minutes | ±8℃(at300℃) | 31℃(at300℃) | 1000W | 1 set | 11,300.00 9,605.00 | 0 | 0 | 0 | 27 days or so | **12 | - |
|
|

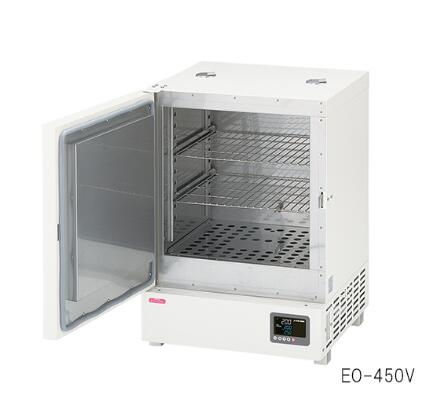

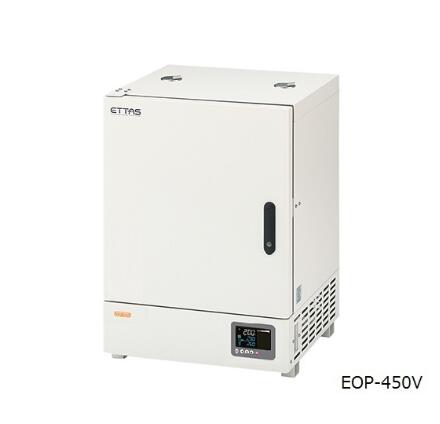

1-7478-42-22 | EOP-450V | 87 | About 60 minutes | ±7℃(at300℃) | 21℃(at300℃) | 1400W | 1 set | 12,800.00 10,880.00 | 0 | 0 | 0 | 27 days or so | **12 | - |
※ It takes about 18 days to ship from Japan in case of storage in Japan
Freight charge is extra
