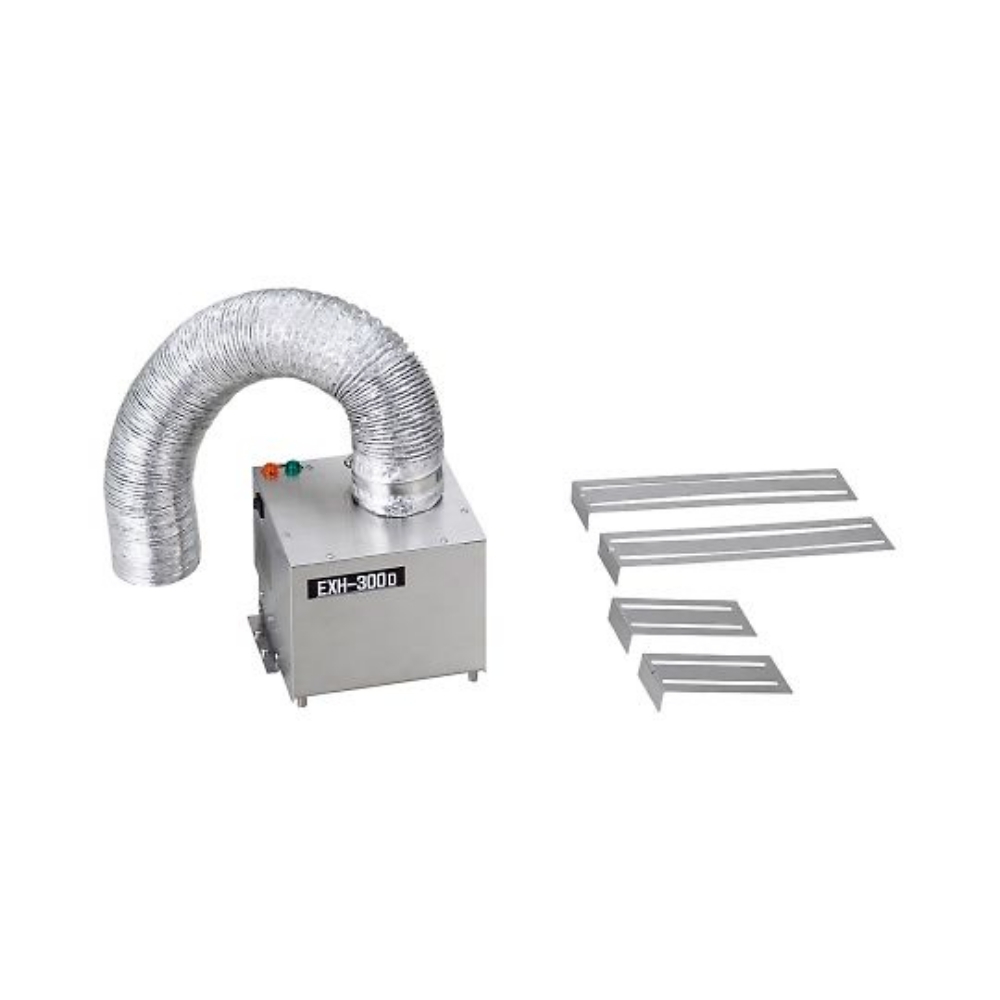

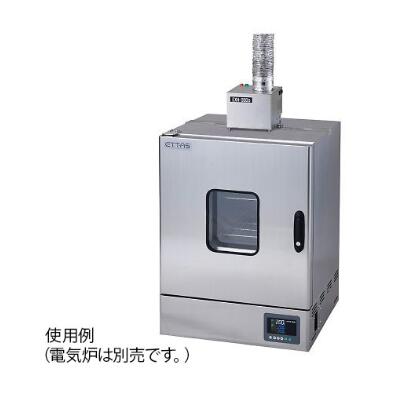

Features:

Forced discharge of fetid, toxic gas produced by electric furnace.
Use the attached exhaust pipe to discharge the generated gas to the outdoor and ventilation equipment and exhaust the smoke
The upper part of the electric furnace is adsorbed with a magnet, which is convenient for disassembly.
Can switch the continuous operation mode and the automatic operation mode that detects the heat from the electric furnace and starts to exhaust
The exhaust gas of the electric furnace is discharged to the ventilation equipment

Specifications:

Size (mm):175×175×200
Weight (kg): about 2
Suction and exhaust mode: forced exhaust by fan
Air volume (50/60Hz):0.44/0.36m3/min(capacity of fan unit)
Maximum static pressure (50/60Hz):53/76Pa(fan unit capacity)
Fixed width :240~700mm
Accessories :Φ75mm heat-resistant pipe about 2.5m, hose belt ×2, fixed rod ×4
Power supply :AC100V50/60Hz0.11A(cable length: about 2m)
Power consumption :8W
※ No power switch. Is connected to the socket can run specifications.

Power supply Note :
The commodity power supply is AC100V, please be sure to use with 100V transformer.
Related transformer products, please refer to Chinese 2019 No. 477 page /2017 No. 884 page or directly consult our company.

【 Specification sheet 】

Picture	Number	Model	Sales Packaging	RMB(tax included)	Beijing inventory	Shanghai inventory	Japanese inventory	Refer to delivery date	Query NO.	Purchase quantity
	4-2150-01	EXH-300D	1 set	17,200.00 14,620.00	0	0	11		**12	-

※ It takes about 18 days to ship from Japan in case of storage in Japan
