Features:
High performance model with excellent chemical resistance.
In order to facilitate pipe distribution and operation, the valve and vacuum gauge for vacuum pump connection are configured in the front operation panel
Double doors with reinforced glass doors and polycarbonate doors for protection.
Because of the use of heat-resistant fluorine rubber gasket, so durability and air tightness are very good
In addition to the PV·SV two-stage disy that is easy to confirm the measured value and set value, the set temperature disy is also used to prevent over-heating. Based on the V series, all the air receiving parts are made of stainless steel with excellent chemical resistance, fluororubbers, ceramic coating, etc.(not explosion-proof structure)
Specifications:
The goods with verification are the original AZONE services of FAT (Factory AcceptanceTest) implemented on AZONE before shipment.
Verification before delivery (FAT).
After ordering, we will send you the FAT n (n) and implement the FAT.-- after you sign and return
Attached documents :FAT Report/Proofreading Certificate with measuring instrument
※ Attached is Azwan's original FAT Instruction book (see the lower left sample of the screen).
Temperature point: temperature 1, vacuum degree

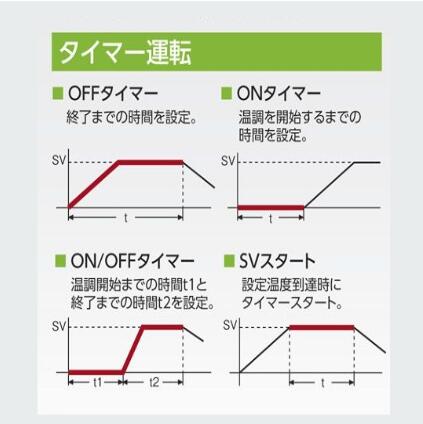

Additional functions: timing function (ON·OFF·ON/OFF timer ·SV start)
Sensor :K thermocouple x 2 (temperature control and prevent excessive rise with 1 each)
Safety device: prevent excessive rise function (digital set), self-diagnosis function (heater break detection, sensor abnormal detection), overcurrent circuit breaker
Material
▼外装:烤钢涂装
▼ Interior :SUS 304 resistance ceramic coating
▼ Shelf: aluminum resistant ceramic coating
▼ Piping, joint :SUS 304 resistance ceramic coating
▼ Valve, vacuum gauge: stainless steel (SUS 316, PTFE)
▼ Door washer: fluorine rubber
▼ Observation window: tempered glass (12mm thick), polycarbonate protection te
Power cord length: 2.5m
Accessories: shelf ×2 pieces
加热方式:罐体加热方式
Temperature setting range :40~220℃
Vacuum range :0.1~101 kPa
Control mode :PID control · SSR output
Valve diameter: outer diameter φ13mm
※ Please negotiate separately if you want to use the local IQOQ. When quoting, installation address is required.
【 Specification sheet 】
| Picture | Number | Model | Storage capacity (L) | External dimensions (mm) | Inside dimensions (mm) | Heater capacity | Power supply | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
2-1200-11-28 | AVO-200V-CR | 8 | 343×396×509 | 200×200×200 | 800W | AC100V50/60Hz8A | 1 set | 30,100.00 25,585.00 | 0 | 0 | 0 | 165 days or so | **12 | - |
|
2-1200-12-28 | AVO-250V-CR | 15 | 393×446×559 | 250×250×250 | 800W | AC100V50/60Hz8A | 1 set | 34,919.00 29,681.00 | 0 | 0 | 0 | 165 days or so | **12 | - |
|
2-1200-13-28 | AVO-310V-CR | 30 | 453×506×619 | 310×310×310 | 1360W | AC100V50/60Hz14A | 1 set | 42,743.00 36,332.00 | 0 | 0 | 0 | 45 days or so | **12 | - |
※ It takes about 18 days to ship from Japan in case of storage in Japan
