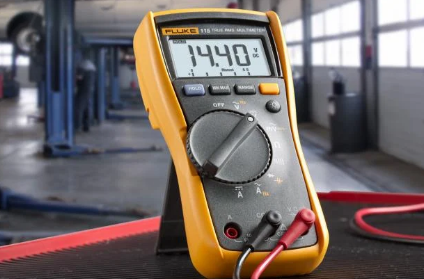

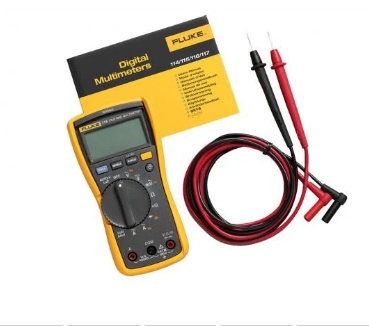

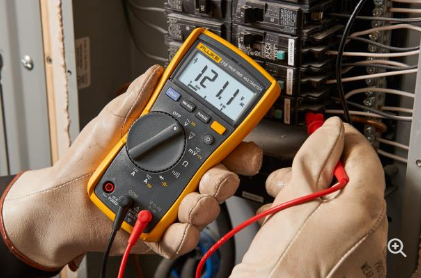

Fluke 115C true RMS digital multimeter
Designed for electrical technicians and manufactured by Fluke.
Fluke 115C是供现场维护技术人员使用的紧凑型真有效值仪表,为电气和电子测试的应用提供解决方案.
In addition, Fluke 114 electrical measurement multimeter, Fluke 116C HVAC multimeter with temperature and microampthm measurement function and Fluke 117C true RMS multimeter with non-contact voltage measurement function for electricians
Product specifications: Fluke 115C true RMS digital multimeter
| Technical specifications | ||
| The highest voltage between any terminal and ground | 600 V | |
| Overvoltage protection | 6 kV peak, in accordance with IEC 61010-1 600 VCAT III, pollution Level 2 | |
| The disy screen | Numbers: 6000 counts, updated 4 times per second | |
| The bar chart | 33 segments, 32 updates per second | |
| Operating temperature | -10°c - 50°c | |
| Storage temperature | -40°c - 60°c | |
| Battery type | 9 V Alkaline battery,NEDA 1604A/ IEC 6LR61 | |
| Battery life | Usually 400 hours, no backlight | |
| Precision specification | ||
| Dc millivolts | Range/resolution | 600.0 mV / 0.1 mV |
| Precision | ± ([percent reading] [count times]): 0.5percent 2 | |
| Dc voltage | Range/resolution | 6.000 V / 0.001 V
60.00 V / 0.01 V 600.00 V / 0.1 V |
| Precision | ± ([percent reading] [count times]): 0.5percent 2 | |
| Ac voltage (millivolts) -1 true RMS | Range/resolution | 600.0 mV / 0.1 mV |
| Precision | 1.0percent 3 (DC,45 Hz to 500 Hz)
2.0% 3(500赫兹- 1千赫)—— |
|
| Ac voltage ¹ true RMS | Range/resolution | 6.000 V / 0.001 V
60.00 V / 0.01 V 600.0 V / 0.1 V |
| Precision | 1.0percent 3 (DC,45 Hz to 500 Hz)
2.0% 3(500赫兹- 1千赫)—— |
|
| On-off | Range/resolution | 600 Ω / 1 Ω |
| Precision | When the buzzer is on. 20 Ω, when closed > 250 Ω; Detect
Open or short circuit 500 μs or longer. |
|
| Ohm | Range/resolution | 600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ |
| Precision | 0.9% + 1 | |
| Range/resolution | 40.00 MΩ / 0.01 MΩ | |
| Precision | 5% + 2 | |
| Diode test | Range/resolution | 2.00 V / 0.001 V |
| Precision | 0.9% + 2 | |
| Capacitance | Range/resolution | 1000 nF / 1 nF
10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100μf --- 1000μf |
| Precision | 1.9% + 2 | |
| Range/resolution | > 1000 μF | |
| Precision | 5% + 20% | |
| Lo-Z Capacitance | The range of | 1 nF - 500 μF—— |
| Precision | 10% + 2 µδΠΝ | |
| True RMS of AC current (ampere)
(45 Hz ~ 500Hz)—— |
Range/resolution | 6.000 A / 0.001 A
10.00 A / 0.01 A |
| Precision | 1.5% + 3
20 A overload up to 30 seconds |
|
| Dc amperes | Range/resolution | 6.000 A / 0.001 A
10.00 A / 0.01 A |
| Precision | 1.0% + 3
20 A overload up to 30 seconds |
|
| Hz (voltage or current input) ² | Range/resolution | 99.99 Hz / 0.01 Hz
999.9 Hz / 0.01 Hz 9.999 kHz / 0.001 kHz 50.00 kHz / 0.01 kHz |
| Precision | 0.1% + 2 | |
| 1. 有交流电压The range of（除开 Auto-V/LoZ）均为The range of的 1% 至 .Auto-V/LoZ 的起始范围为 0.0 V.
2. The frequency is AC coupling, and the AC voltage is 5Hz to 30 kHz. 2. Temperature error (accuracy) does not include the error of the thermocouple probe 2. The frequency is AC coupling, ranging from 5 Hz to 50 kHz at AC voltage. The frequency is DC coupled, 45 Hz to 5 kHz for AC current. 2. Temperature range/resolution: -40 °F to 752 °F / 0.2 °F. |
||
| Mechanical and general specifications | ||
| Size | 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in) | |
| The weight of | 550 g | |
| Warranty period | Three years | |
