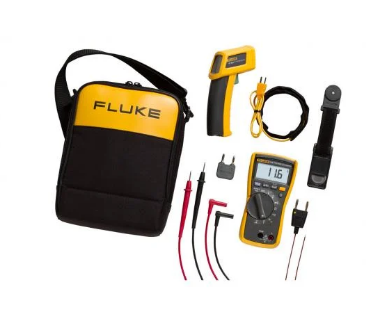

Fluke 116C palmtop true RMS digital multimeter
Designed for electrical technicians and manufactured by Fluke.

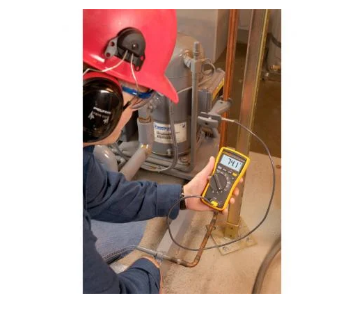

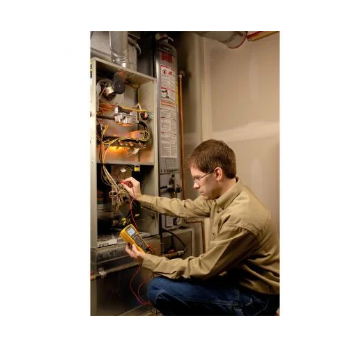

Fluke 116C digital multimeter measures current and is designed specifically for HVAC professionals. It has various digital multimeter current measurement functions required for HVAC meters, including temperature and microampere measurements for rapid troubleshooting of HVAC equipment and flame sensors
In addition,Fluke 114 electrical measurement with multimeter,Fluke 115C multimeter and with non-contact voltage measurement function of electrical technical personnel with Fluke 117C multimeter
Product specifications: Fluke 116C palmtop true RMS digital multimeter
| Technical specifications | ||
| The highest voltage between any terminal and ground | 600 V | |
| Overvoltage protection | 6 kV peak, in accordance with IEC 61010-1 600 VCAT III, pollution Level 2 | |
| The disy screen | Numbers: 6000 counts, updated 4 times per second | |
| The bar chart | 33 segments, 32 updates per second | |
| Operating temperature | -10°c - 50°c | |
| Storage temperature | -40°c - 60°c | |
| Battery type | 9 V Alkaline battery,NEDA 1604A/ IEC 6LR61 | |
| Battery life | Usually 400 hours, no backlight | |
| Precision specification | ||
| Dc millivolts | Range/resolution | 600.0 mV / 0.1 mV |
| Precision | ± ([percent of reading] [number of counts]) : 0.5percent 2 | |
| Dc voltage | Range/resolution | 6.000 V / 0.001 V
60.00 V / 0.01 V 600.00 V / 0.1 V |
| Precision | ± ([percent of reading] [number of counts]) : 0.5percent 2 | |
| Automatic volt | Range/resolution | 600.0 V / 0.1 V |
| Precision | 2.0percent 3 (DC,45 Hz to 500 Hz)
4.0% 3(500赫兹- 1千赫)—— |
|
| Ac voltage (millivolts) -1 true RMS | Range/resolution | 600.0 mV / 0.1 mV |
| Precision | 1.0percent 3 (DC,45 Hz to 500 Hz)
2.0% 3(500赫兹- 1千赫)—— |
|
| Ac voltage ¹ true RMS | Range/resolution | 6.000 V / 0.001 V
60.00 V / 0.01 V 600.0 V / 0.1 V |
| Precision | 1.0percent 3 (DC,45 Hz to 500 Hz)
2.0% 3(500赫兹- 1千赫)—— |
|
| On-off | Range/resolution | 600 Ω / 1 Ω |
| Precision | When the buzzer is on. 20 Ω, when closed > 250 Ω; Detect
Open or short circuit 500 μs or longer. |
|
| Ohm | Range/resolution | 600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ |
| Precision | 0.9% + 1 | |
| Range/resolution | 40.00 MΩ / 0.01 MΩ | |
| Precision | 5% + 2 | |
| Diode test | Range/resolution | 2.00 V / 0.001 V |
| Precision | 0.9% + 2 | |
| Capacitance | Range/resolution | 1000 nF / 1 nF
10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100μf --- 1000μf |
| Precision | 1.9% + 2 | |
| Range/resolution | > 1000 μF | |
| Precision | 5% + 20% | |
| Lo-Z Capacitance | The range of | 1 nF - 500 μF—— |
| Precision | 10% + 2 µδΠΝ | |
| Temperature squared
(Type K thermocouple) |
Range/resolution | -40℃- 400℃/ 0.1℃ |
| Precision | 1% + 10² | |
| Range/resolution | -40°f - 752°f / 0.2°f | |
| Precision | 1% + 18² | |
| Ac μA true RMS (45 Hz to 500 Hz) | Range/resolution | 600.0 μA / 0.1 μA |
| Precision | 1.5% + 3 | |
| Dc microampere | Range/resolution | 600.0 μA / 0.1 μA |
| Precision | 1.0% + 2 | |
| Hz (voltage or current input) ² | Range/resolution | 99.99 Hz / 0.01 Hz
999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 Hz 50.00 kHz / 0.01 Hz |
| Precision | 0.1% + 2 | |
| 1. 有交流电压The range of（除开 Auto-V/LoZ）均为The range of的 1% 至 .Auto-V/LoZ 的起始范围为 0.0 V.
2. Temperature error (accuracy) does not include the error of the thermocouple probe 3. The frequency is AC coupling, with AC voltage ranging from 5 Hz to 50 kHz. The frequency is DC coupled, 45 Hz to 5 kHz for AC current. 4. 温度Range/resolution：-40°f - 752°f / 0.2°f. |
||
| Mechanical and general specifications | ||
| Size | 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in) | |
| The weight of | 550 g | |
| Warranty period | Three years | |
