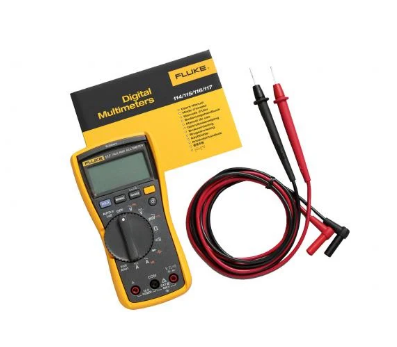

Product Overview: Fluke 117C non-contact voltage measuring multimeter
Designed for electrical technicians and manufactured by Fluke.

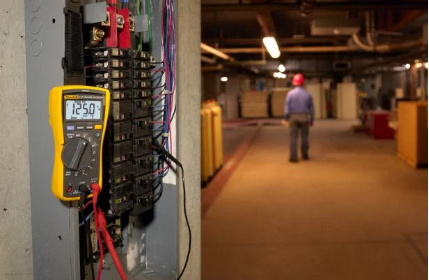

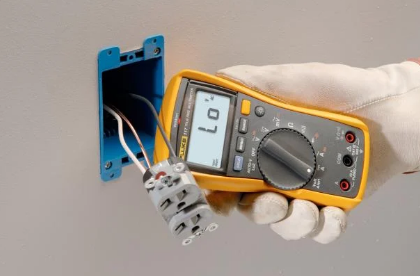

Compact true RMS meter suitable for commercial applications. Fluke 117C is suitable for use in demanding environments such as commercial buildings, hospitals and schools. Fluke 117C includes integrated non-contact voltage detection function to help complete the measurement work more quickly
In addition,Fluke 114 electrical measurement multimeter,Fluke 115C multimeter and Fluke 116C HVAC multimeter with temperature and microampere current measurement function
Product specification: Fluke 117C non-contact voltage measuring multimeter
| Technical specifications | ||
| The highest voltage between any terminal and ground | 600 V | |
| Overvoltage protection | 6 kV peak, in accordance with IEC 61010-1 600 VCAT III, pollution Level 2 | |
| A Fuse at the input end | 11 A,1000 V fast fuse (Fluke PN 803293) | |
| The disy screen | Numbers: 6000 counts, updated 4 times per second | |
| The bar chart | 33 segments, 32 updates per second | |
| Operating temperature | -10°c - 50°c | |
| Storage temperature | -40°c - 60°c | |
| Battery type | 9 V Alkaline battery,NEDA 1604A/IEC 6LR61 | |
| Battery life | Usually 400 hours, no backlight | |
| Precision specification | ||
| Dc millivolts | Range/resolution | 600.0 mV / 0.1 mV |
| Precision | ± ([percent of reading] [number of counts]) : 0.5percent 2 | |
| Dc voltage | Range/resolution | 6.000 V / 0.001 V
60.00 V / 0.01 V 600.00 V / 0.1 V |
| Precision | ± ([percent of reading] [number of counts]) : 0.5percent 2 | |
| Automatic volt | Range/resolution | 600.0 V / 0.1 V |
| Precision | 2.0percent 3 (DC,45 Hz to 500 Hz)
4.0% 3(500赫兹- 1千赫)—— |
|
| Ac voltage (millivolts) -1 true RMS | Range/resolution | 600.0 mV / 0.1 mV |
| Precision | 1.0percent 3 (DC,45 Hz to 500 Hz)
2.0% 3(500赫兹- 1千赫)—— |
|
| Ac voltage ¹ true RMS | Range/resolution | 6.000 V / 0.001 V
60.00 V / 0.01 V 600.0 V / 0.1 V |
| Precision | 1.0percent 3 (DC,45 Hz to 500 Hz)
2.0% 3(500赫兹- 1千赫)—— |
|
| On-off | Range/resolution | 600 Ω / 1 Ω |
| Precision | When the buzzer is on. 20 Ω, when closed > 250 Ω; Detect
Open or short circuit 500 μs or longer. |
|
| Ohm | Range/resolution | 600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ |
| Precision | 0.9% + 1 | |
| Range/resolution | 40.00 MΩ / 0.01 MΩ | |
| Precision | 5% + 2 | |
| Diode test | Range/resolution | 2.00 V / 0.001 V |
| Precision | 0.9% + 2 | |
| Capacitance | Range/resolution | 1000 nF / 1 nF
10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100μf --- 1000μf |
| Precision | 1.9% + 2 | |
| Range/resolution | > 1000 μF | |
| Precision | 5% + 20% | |
| Lo-Z Capacitance | The range of | 1 nF - 500 μF—— |
| Precision | 10% + 2 µδΠΝ | |
| Ac ampere true RMS (45 Hz to 500 Hz) | Range/resolution | 6.000 A / 0.001 A
10.00 A / 0.01 A |
| Precision | 1.5% + 3
20 A continuous overload up to 30 seconds |
|
| Dc amperes | Range/resolution | 6.000 A / 0.001 A 10.00 A / 0.01 A |
| Precision | 1.0% + 3
20 A continuous overload up to 30 seconds |
|
| Hz (voltage or current input) ² | Range/resolution | 99.99 Hz / 0.01 Hz
999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 Hz 50.00 kHz / 0.01 Hz |
| Precision | 0.1% + 2 | |
| 1. 有交流电压The range of（除开 Auto-V/LoZ）均为The range of的 1% 至 .Auto-V/LoZ 的起始范围为 0.0 V.
2. Temperature error (accuracy) does not include the error of the thermocouple probe 2. The frequency is AC coupling, ranging from 5 Hz to 50 kHz at AC voltage. The frequency is DC coupled, 45 Hz to 5 kHz for AC current. 2. Temperature range/resolution: -40 °F to 752 °F / 0.2 °F. |
||
| Mechanical and general specifications | ||
| Size | 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in) | |
| The weight of | 550 g | |
| Warranty period | Three years | |
