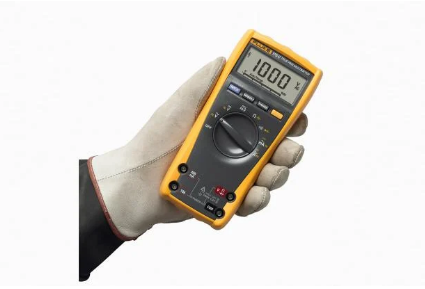

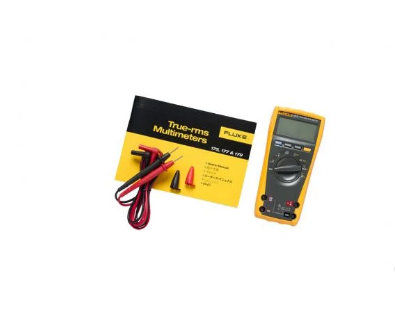

Fluke 175C true RMS digital multimeter
Three Fluke 170C series digital multimeter models durable, fully applicable to industrial field applications of digital multimeter. Bad environment and high pressure is easy to damage the multimeter, but for Fluke170C series digital multimeter is a negligible matter
Product specifications: Fluke 175C true RMS digital multimeter
| Technical index | ||
| Dc voltage | Precision ¹ | ±(0.15% + 2) |
| Maximum resolution to ground | 0.1 mV | |
| The maximum value | 1000 V | |
| Ac voltage | Precision ¹ | ±(1.0% + 3) |
| Maximum resolution to ground | 0.1 mV | |
| The maximum value | 1000 V | |
| Direct current | Precision ¹ | ±(1.0% + 3) |
| Maximum resolution to ground | 0.01 mA | |
| The maximum value | 10 A | |
| Ac current | Precision ¹ | ±(1.5% + 3) |
| Maximum resolution to ground | 0.01 mA | |
| The maximum value | 10 A | |
| Resistance | Precision ¹ | ±(0.9% + 1) |
| Maximum resolution to ground | 0.1 Ω | |
| The maximum value | 50 MΩ | |
| Capacitance | Precision ¹ | ±(1.2% + 2) |
| Maximum resolution to ground | 1 nF | |
| The maximum value | 10,000 µF | |
| Frequency | Precision ¹ | ±(0.1% + 1) |
| The maximum value分辨率 | 0.01 Hz | |
| The maximum value | 100 kHz | |
| 1. Accuracy refers to the best accuracy of each function | ||
| Environmental indicators | ||
| Operating temperature | -10°c - 50°c | |
| Storage temperature | -30°c - 60°c | |
| Humidity (no condensation) | 0% – 90% (0 °C – 35 °C)
0% – 70% (35 °C – 50 °C) |
|
| Safety specifications | ||
| Class of overvoltage | En 61010-1
En 61010-1: 600v cat iv—— |
|
| Agency approval | UL,CSA, TUV are listed,VDE to be determined | |
| Mechanical and general specifications | ||
| Size | 43 x 90 x 185 mm | |
| The weight of | 420 g | |
| Warranty period | For life | |
| Battery life | Alkaline battery usually ~200 hours, no backlight | |
