Product overview: Fluke 279FC economic multimeter thermal imager
Fluke Connect
Fluke Connect connects your meter to your phone via Bluetooth to help you get more done faster and safer
Wirelessly communicate with smartphones up to 20 ft / 6.1 m away (free of obstructions) to save measurements and images
Troubleshoot better by analyzing trends in real time and monitoring real-time measurements on your phone's screen
Create and email reports in the field. The report is not enough? Fluke Connect features ShareLive video calling, which disys live video and measurements on the same screen
Measuring ability
1000 V AC and DC voltage measurement
Can measure up to 2500 A AC current (with optional iFlex flexible current probe)
Temperature measurement range -- 10 °C to 200 °C (14 °F to 392 °F)
Can measure resistance up to 50 MΩ
On and off
Diode test
Minimum and maximum recording functions automatically capture reading changes
Frequency
9999 µF Capacitance measurement
可测量非线性信号的真There is效值电压和电流
Other functions
CAT IV 600 V,CAT III 1000 V Safety measurement class
Rechargeable lithium batteries and chargers
Three year warranty
The strap (optional) allows you to suspend the meter while using the probe
软便携包 (选配)
Discover. Save. Share.
Fluke 279FC economical multimeter thermal imager can help you quickly discover, repair, verify and report a variety of electrical problems, so that you have the confidence to solve any problem
Find the problem immediately

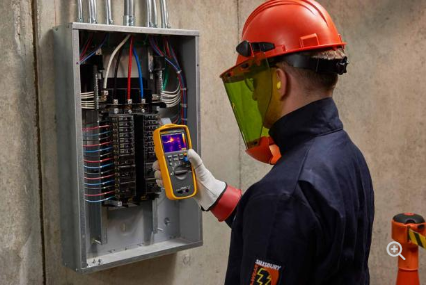

The thermal imaging multimeter is a first-line fault diagnosis tool for electrical equipment. It can be used to check hot spots in high-voltage equipment and transformers, and detect heat exposure of fuses, wires, insulators, connectors, splices, and switches. Scanning with 279 FC thermal imager can quickly detect many electrical problems from a safe distance. By combining the two tools into one tool, the thermal imaging multimeter can reduce the burden and increase productivity
More features
Compatible with iFlex (Flexible Current Clamp), expands your measuring capabilities and measures current deep into narrow, hard-to-reach Spaces (up to 2500 A AC current). With the wide, full-color LCD disy, you can view images and readings more easily and clearly. A rechargeable battery with a battery life of more than 10 hours gives you a full day's use under normal conditions
Transmission of measurement results

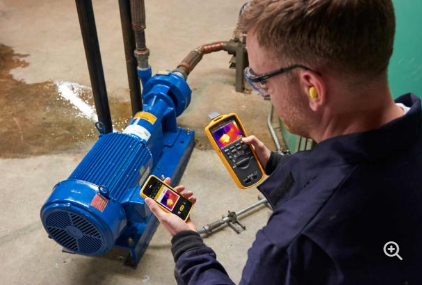

With the built-in Fluke Connect®, results can be wirelessly transmitted to your phone to quickly report and verify completion. Troubleshoot better by analyzing trends in real time and monitoring real-time measurements on your smartphone screen. Create and email reports in the field.
Product specifications: Fluke 279FC economic multimeter thermal imager
| DMM | |
| Basic DC accuracy | 0.09% |
| Bandwidth | 1percent 45 Hz to 65 Hz, full time low-pass filter |
| 电压 | 1000 V AC/DC |
| Ac current | iFlex Flexible Current probe (supplied with 279 FC/iFlex) |
| Resistance | 50 MΩ |
| Frequency | 100 kHz |
| Capacitance | 9,999 µF |
| On and off性（带蜂鸣器） | There is |
| Diode test | There is |
| Minimum/maximum record | There is |
| Disy hold | There is |
| Infrared thermal imager | |
| Infrared resolution | 102 x 77 |
| 图像捕获Frequency | 8 Hz |
| Field of view | 36° (w) x 27° (h) |
| NETD | ≤200 mK |
| Infrared spectral band | 7.5 to 14 microns |
| The center point | 是（带The center point温度） |
| Focusing mechanism | Prime focus |
| Temperature range (optional °C and °F) | -10 °C to 200 °C (14 °F to 392 °F) Accuracy: ±5 °C (9 °F) or (±5percent of test results) |
| Emissivity | 0.95 Fixed |
| Background compensation | Fixed at 20 °C |
| 内存存储 | About 100 images (inside) |
| File format | Non-radiation.is2 |
| General technical index | |
| Battery type | Rechargeable lithium battery (charge time: 4.5 hours) |
| Operating temperature | -10°c - 50°c(14°f - 122°f |
| Storage temperature | -20°c - 60°c(-4°f - 140°f |
| Relative humidity | 0% - 90%(0°C - 35°C)(32°F - 95°F
0% - 75%(35℃- 40℃)(95°F - 104°F 0% - 45%(40°C - 50°C)(104°F - 122°F |
| Altitude | 2000 m (6,561 feet) |
| Temperature coefficient | 温度过 28 °C 或低于 18°C 时（过 82 °F 或低于 64° F 时）,温度每升高或降低 1 °C,规定的精度值上调 0.1 x |
| Protection level | (IP) IP40 (when not working) |
| 无线Frequency | 2.4 GHz ISM band,20 m range |
| Authentication | CE、CSA、FCC |
| Meet safety standards | IEC 61010-1: Pollution Level 2; IEC 61010-2-033: CAT III 1000 V/CAT IV 600 V |
| Electromagnetic compatibility (EMC) | EN 61326-1：2012 |
| Size | 215.9 x 93.9 x 57.1 mm (8.5 x 3.7 x 2.25 in) |
| The weight of | 0.793 kg (1.75 lb) |
| Warranty period | There is限Three year warranty |
