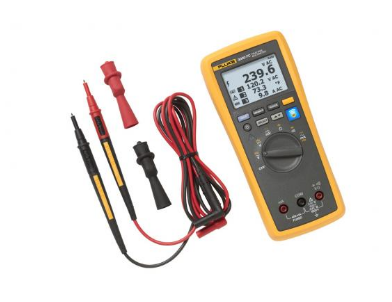

Discover. Save. Share. All data available on site. Fluke 3000 FC True RMS Wireless Multimeter with Fluke Connect® application and ShareLive™ video calling. With its accuracy, reliability and ease of use,Fluke 3000 FC wireless multimeter becomes the ideal solution for professional and technical personnel. Fluke 3000 FC has passed independent tests for safe use in 600V Class IV /1000 V Class III environments, and has all the functions required to troubleshoot and repair many problems in electrical and electronic systems Fluke 3000 FC provides you with true RMS voltage and current measurements,6000 count resolution, manual and automatic ranges, as well as frequency, capacitance, resistance, on-off and diode measurements. In addition,Fluke 3000 FC provides a higher base accuracy of 0.09percent, a digital disy disying up to three auxiliary measurements from a remote module, and a bright white backlight Wear less personal protective equipment to work safely near electrical panels
The Fluke 3000 FC True RMS Wireless multimeter and Fluke Connect wireless test tool ce the tool rather than your body near the live electrical panel. Simple. Simply disconnect the power supply to the cabinet, wear personal protective equipment and open the panel to connect to a variety of remote modules, including voltage modules, current clamps, flexible current loops or thermometers. The reading on the 3000 FC wireless multimeter is then taken from a safe distance. You can disy meter measurements and readings from up to 3 wireless modules and reduce the risk of arc flashes by separating yourself from hazardous measurement conditions Better yet,Fluke 3000 FC Series wireless multimeter can send measurement data to your smart phone, enabling you to save measurement data from the field and share it with your team anytime and anywhere Look for relevant events that don't bring your work to a standstill
Timing is all the more important when trying to find the cause of a complex problem. Often you need to take measurements in one location and see activity on different parts of the system at the same time. We have solved this problem with Fluke Connect - connect your remote modules in one location and then use Fluke 3000 FC multimeter for measurements up to 20 meters. You will be able to view the interaction between remote test points in real time on one screen. You can even download the measurement data to a PC for further analysis Fluke Connect and other functions of the FC 3000 multimeter

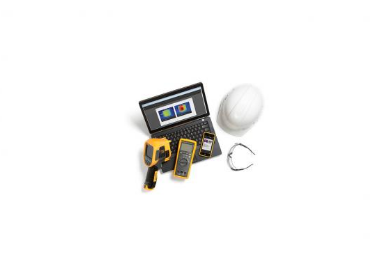

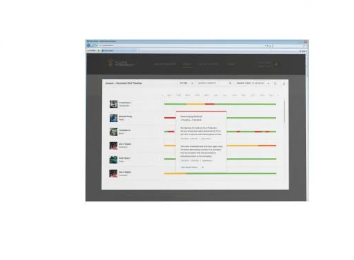

Add laptop and record, analyze and diagnose. Use Fluke Connect wireless module to record a period of time, and monitor the circuit load changes of an hour, a shift or a week By walking through a running remote module and downloading the recorded data, you can collect the recorded data from the module using the Fluke Connect wireless USB adapter Perform the analysis using your PC and share the results using Fluke Cloud™ storage and ShareLive™ video calls. Look at data or charts to get information from team members
Fluke 3000 FC series wireless multimeter
Product specifications: Fluke 3000 FC series wireless multimeter
| Ac voltage | |||||
| Range ¹/ resolution |
|
600.0 mV / 0.1 mV
6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V |
|||
| Precision² ³4 | 45赫兹，500赫兹—— | 1.0% + 3 | |||
| 500赫兹--- 1千赫 | 2.0% + 3 | ||||
| 1. Ac voltageThe range of已为The range of的 1% 至 .
2. The maximum peak factor of the full scale is not more than 500 V ≤ 3, and the linear reduction to the peak factor < at 1000 V; 1.5. 3. For non-sinusoidal waveforms, the crest factor up to 3 is usually plus or minus (2percent of reading 2percent of full scale). 4. Do not exceed 107 V-Hz. |
|||||
| Dc voltage, connectivity, resistance, diode testing and capacitance | |||||
| Function | The range of | Resolution | Precision | ||
| mV | 600.0 mV | 0.1 mV | 0.09 % + 2 | ||
| V | 6.000 V | 0.001 V | 0.09 % + 2 | ||
| 60.00 V | 0.01 V | ||||
| 600.0 V | 0.1 V | ||||
| 1000 V | 1 V | 0.15 % + 2 | |||
| Ω | 600 Ω | 1 Ω | < At 25 Ω, the meter buzzes, and the buzzer detects an open or short circuit of 250 μs or longer | ||
| Ω | 600.0 Ω | 0.1 Ω | 0.5 % + 2 | ||
| 6.000 kΩ | 0.001 kΩ | 0.5 % + 1 | |||
| 60.00 kΩ | 0.01 kΩ | ||||
| 60.00 kΩ | 0.1 kΩ | ||||
| 600.0 kΩ | 0.001 MΩ | ||||
| 50.00 MΩ | 0.01 MΩ | 1.5 % + 3 | |||
| Diode test | 2.000 V | 0.001 V | 1 % + 2 | ||
| µF | 1000 nF | 1 nF | 1.2 % + 2 | ||
| 10.00 μF | 0.01 μF | ||||
| 100.0 μF | 0.1 μF | ||||
| 9999 μF1 | 1 μF | 10 % 典型 | |||
| 1 在 9999 μF The range of下测量 1000 μF Capacitance时,测量Precision为 1.2 % + 2. | |||||
| Ac and DC current | |||||
| mA Exchange
(45赫兹，1千赫)—— |
The range of¹ /Resolution | 60.00 mA / 0.01 mA
400.0 mA3 / 0.1 mA |
|||
| Precision | 1.5% + 3 | ||||
| mA DC² | The range of¹ /Resolution | 60.00 mA / 0.01 mA
400.0 mA³ / 0.1 mA |
|||
| Precision | 0.5% + 3 | ||||
| 1. 有交流电流The range of均已为The range of的 5% 至 .
2. Input load voltage (typical value) : 400 mA Input 2 mV/mA. 3. Press 400 mA to specify accuracy, overload is 600 mA. |
|||||
| Frequency | |||||
| The range of/Resolution | 99.99 Hz / 0.01 Hz
999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 kHz 99.99 kHz / 0.01 kHz |
||||
| Precision¹ | 0.1% + 1 | ||||
| 1. 电压Frequency为 99.99 kHz,电流Frequency为 10 kHz. | |||||
| Input characteristics | |||||
| Input characteristics | |||||
| Function | Overload
Protect |
Input impedance
(nominal value) |
Common-mode rejection ratio (1 kΩ non-equilibrium) | Normal suppression | |
 |
1100 V root mean square | > 10 MΩ <100 pF | 在直流且Frequency为 50 Hz 或 60 Hz 时大于 120 dB | Greater than 60 dB-- at 50 Hz or 60 Hz | |
 |
1100 V root mean square | > 10 MΩ <100 pF | 在直流且Frequency为 60 Hz 以下时大于 60 dB |
|
|
 |
1100 V root mean square | > 10 MΩ <100 pF | 在直流且Frequency为 50 Hz 或 60 Hz 时大于 120 dB | Greater than 60 dB-- at 50 Hz or 60 Hz | |
| Open circuit test voltage | Full scale voltage | Typical short-circuit current | |||
| To 6 MΩ | 50 MΩ | ||||
 |
1100 V root mean square | <2.7 V DC | <0.7 V DC | <0.9 V DC | <350 mA |
 |
1100 V root mean square | <2.7 V DC | Dc 2.000 V | <1.1 mA | |
| mA Function | |||||
| OverloadProtect | Fuses,44/100 A,1000 V, fast fusion | ||||
| Overload | 600 mA Overload长达 2 分钟,少 10 分钟停顿 | ||||
| 小值/值记录Precision | |||||
| 直流Function | Duration > A total of 12 changes for 350 milliseconds | ||||
| 交流Function | Duration > There are 40 changes in 900 milliseconds | ||||
| General technical index | |||||
| The highest voltage between any terminal and ground | 1000 V DC or AC root mean square | ||||
| Ω A 输入的熔断Protect | 0.44A (44/100 A, 440 mA),1000 V rapid fusing, Fluke specified parts only | ||||
| Disy screen (LCD) | Update rate | 4/ s | |||
| Volts, amperes, ohms | 6000 times | ||||
| Frequency | 10000 times | ||||
| Capacitance | 1000 times | ||||
| Battery type | Three AA alkaline batteries,NEDA 15A IEC LR6 | ||||
| Battery life | At least 250 hours | ||||
| Radio frequency communication | 2.4 GHZ ISM band | ||||
| Radio frequency communicationThe range of | Open air, barrier-free | As far as 20 meters | |||
| There are barriers, drywall | The farthest distance is 6.5 meters | ||||
| There are barriers, concrete walls, or steel electrical enclosures | The farthest is 3.5 meters | ||||
| Temperature | 工作Temperature | -10°c - 50°c | |||
| 储存Temperature | -40°c - 60°c | ||||
| Temperature系数 | 0.1 X（规定Precision）/ °C（<18 °C 或 > 28 °C） | ||||
| Relative humidity | 0% - 90%(0°C - 35°C
0% - 75%(35°C - 40°C 0% - 45%(40°C - 50°C |
||||
| Altitude | 工作Altitude | 2,000 m | |||
| 储存Altitude | 12000 m | ||||
| Electromagnetic compatibility
EMI, RFI, EMC, RF |
EN 61326-1:2006、EN 61326-2-2:2006
ETSI EN 300 328 V1.7.1:2006、ETSI EN 300 489 V1.8.1:2008 All applicable requirements of subpart C 15.207,15.209,15.249 of FCC Part 15 FCCID : FCC: T68–FDMMBLE IC: 6627A–FDMMBLE |
||||
| Meet safety standards | ANSI/ISA 61010 -- 1 / (82.02.01) : 3rd Edition
CAN / CSA-C22.2 No 61010-1-12:第3版: UL 61010-1:3rd Edition IEC / EN 61010–1:2010 |
||||
| Authentication | CSA, FCC, CE | ||||
| Protection (IP) level | IP54 | ||||
| Pollution level | 2 | ||||
| Dimensions (height x width x length) | 4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in) | ||||
| The weight of | 340 g (12 oz) | ||||
| Warranty period | Three years | ||||
| Not compatible with the Fluke CNX test tool | |||||
