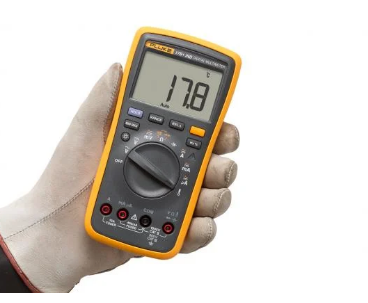

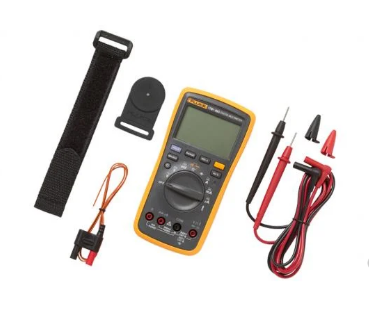

Fluke 17B+IND Digital Multimeter--Shenzhen Selen Technology Co., Ltd

Product Specifications: Fluke 17B IND digital multimeter

Function		The range of			Resolution		Precision
Ac voltage (40 Hz 到 500Hz)1		4.000 V 40.00 V 400.0 V 1000 V			0.001 V 0.01 V 0.1 V 1 V		1.0 % + 3
Dc voltage		4.000 V 40.00 V 400.0 V 1000 V			0.001 V 0.01 V 0.1 V 1 V		0.5 % + 3
Ac voltage（毫伏）		400.0 mV			0.1 mV		3.0 % + 3
Dc voltage（毫伏）		400.0 mV			0.1 mV		1.0 % + 10
二极管测试2		2.000 V			0.001 V		10%
Resistance (Ohm)		400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ			0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ		0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5% + 3
电容3		40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 1000 μF 2000 μF			0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF 1 μF		2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5
频率1 Hz (10赫兹至100千赫)——		50.00 H2 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz			0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz		0.1 % + 3
占空比1		1% ~ 99%——			0.10%		1 %,典型情况4
Ac current μA (40赫兹至400赫兹)——		400.0 μA 4000 μA			0.1 μA 1 μA		1.5 % + 3
Ac current mA (40赫兹至400赫兹)——		40.00 mA 400.0 mA			0.01 mA 0.1 mA		1.5 % + 3
Ac current A (40赫兹至400赫兹)——		4.000 A 10.00 A			0.001 A 0.01 A		1.5 % + 3
Dc current μA		400.0 μA 4000 μA			0.1 μA 1 μA		1.5 % + 3
Dc current mA		40.00 mA 400.0 mA			0.01 mA 0.1 mA		1.5 % + 3
Dc current A		4.000 A 10.00 A			0.001 A 0.01 A		1.5 % + 3
Temperature		50 °C- 400 °C 0 °C- 50 °C -55 °C- 0 °C			0.1C		2 % ± 1 °C ± 2 °C 9 % ± 2 °C
Backlight		-			-		There is
1 There is电流、频率和占空比的范围都是The range of的 1 % 到 100 %.未低于The range of 1 % 的输入值. 2 Generally, the open circuit test voltage is 2.0V and the short circuit current < 0.6 mA. 3 规格不包括测试引线电容和电容板引起的误差（The range of为 40 nF 时,误差为 1.5 nF）. 4 This usually means that the frequency is 50 Hz or 60 Hz and the duty cycle is between 10 percent and 90 percent
Function	Overload protection			Input impedance (nominal value)		Common-mode rejection ratio		Conventional mode inhibition ratio
Ac voltage	1000 V1			>10 MΩ <100 pF		Under direct current, At 50 Hz or 60 Hz, the value is greater than 60 dB		-
Ac voltage（毫伏）	400 mV			>1MΩ,<100 pF		At 50 Hz or 60 Hz, greater than 80 dB		-
Dc voltage	1000 V1			>10 MΩ <100 pF		Under direct current,50 Hz 或 60 Hz 时,大于 100 dB		在 At 50 Hz or 60 Hz, the value is greater than 60 dB
Dc voltage（毫伏）	400 mV			>1MΩ,<100 pF		At 50 Hz or 60 Hz, greater than 80 dB		-
1 106 V Hz Maximum value
General technical index
The highest voltage between any terminal and ground			1000 V
Disy screen (LCD)			6000 counts, updated 3 times per second
Battery type			2 AA,NEDA 15A,IEC LR6
Battery life			Minimum 500 hours (50 hours in LED test mode without load). With load, battery life depends on the type of LED being tested.)
Temperature
工作Temperature			0°c - 40°c
储存Temperature			-30°c - 60°c
Relative humidity
Operating humidity			Non-condensing (< - 10 ° C) From 10 °C to 30 °C, less than or equal to 90percent RH; 30 °C to 40 °C is less than or equal to 75percent
			40 MΩ The range of From 10 °C to 30 °C, less than or equal to 80percent RH; 30 °C to 40 °C is less than or equal to 70percent
Altitude
工作Temperature			2000 m
储存Temperature			12000 m
Temperature系数			0.1 X（Precision）/°C (<18 °C 或>28 °C)
Current input fuse protection			440 mA,1000 V fast melting, only specified Fluke parts. 11A,1000V fast melting, only for specified Fluke parts.
Volume (height x width x length)			183 x 91 x 49.5 mm
The weight of			455 g
IP level			IP 40
Security			IEC 61010-1,IEC61010-2-030 CAT III 600 V,CAT II 1000 V, pollution level 2
Electromagnetic environment			IEC 61326-1: Portable
A 类设备（工业广播和通信设备）1 1 This product meets the industry (Class A) electromagnetic wave equipment requirements, sales or users should take note of this. The equipment is suitable for business environment, not for home use
