Product specifications: Fluke T5-1000 voltage fluctuation tester
| Technical specifications | ||
| On/off test buzzer | Threshold value | < 25 Ω open,> 400 Ω off |
| Voltage indicator LED | Threshold value | 30 V AC guaranteed open |
| Environmental indicators | ||
| Operating temperature | -10°c - 50°c | |
| Storage temperature Temperature | -30°c - 60°c | |
| Humidity (no condensation) | 0% - 95%(5°C - 30°C | |
| 0% - 75%(30°C - 40°C | ||
| 0% - 45%(40°C - 50°C | ||
| Dust/water proof | There is | |
| Working altitude | The maximum is 2000 m | |
| Temperature coefficient | 0.1x (precision specified) /°C (< 18 °C or > 28 °C) | |
| Safety specifications | ||
| Class of overvoltage | CAT III 1000 V AC/DC | |
| CAT IV 600 V AC/DC | ||
| Institutional certification | Ul, csa + vde | |
| Maximum voltage | Any connection between the terminal and the ground | |
| Mechanical and general specifications | ||
| Size | 30.5 x 51 x 203 mm | |
| The weight of | 300 g | |
| Warranty period | Two years | |
| Battery life | Zinc chloride battery 200 hours, alkaline battery 400 hours | |
| Battery type | Two AA zinc chloride batteries | |
| Low battery indicator | There is | |
| Current sensor opening | 12.9 mm | |
| Calibration period | One year | |
| Test conductor | Type | The flexible and durable wire is suitable for use at 1000 V voltage |
| Field receable conductor with male seat wearing sheath banana plug connector | ||
| Probe | Two probes -- one red, one black | |

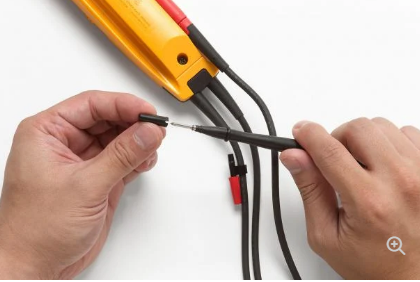

| 可拆卸 Slim-Reach 测试Probe探针 | ||
| Type | TP1 Slim Reach 测试Probe | |
