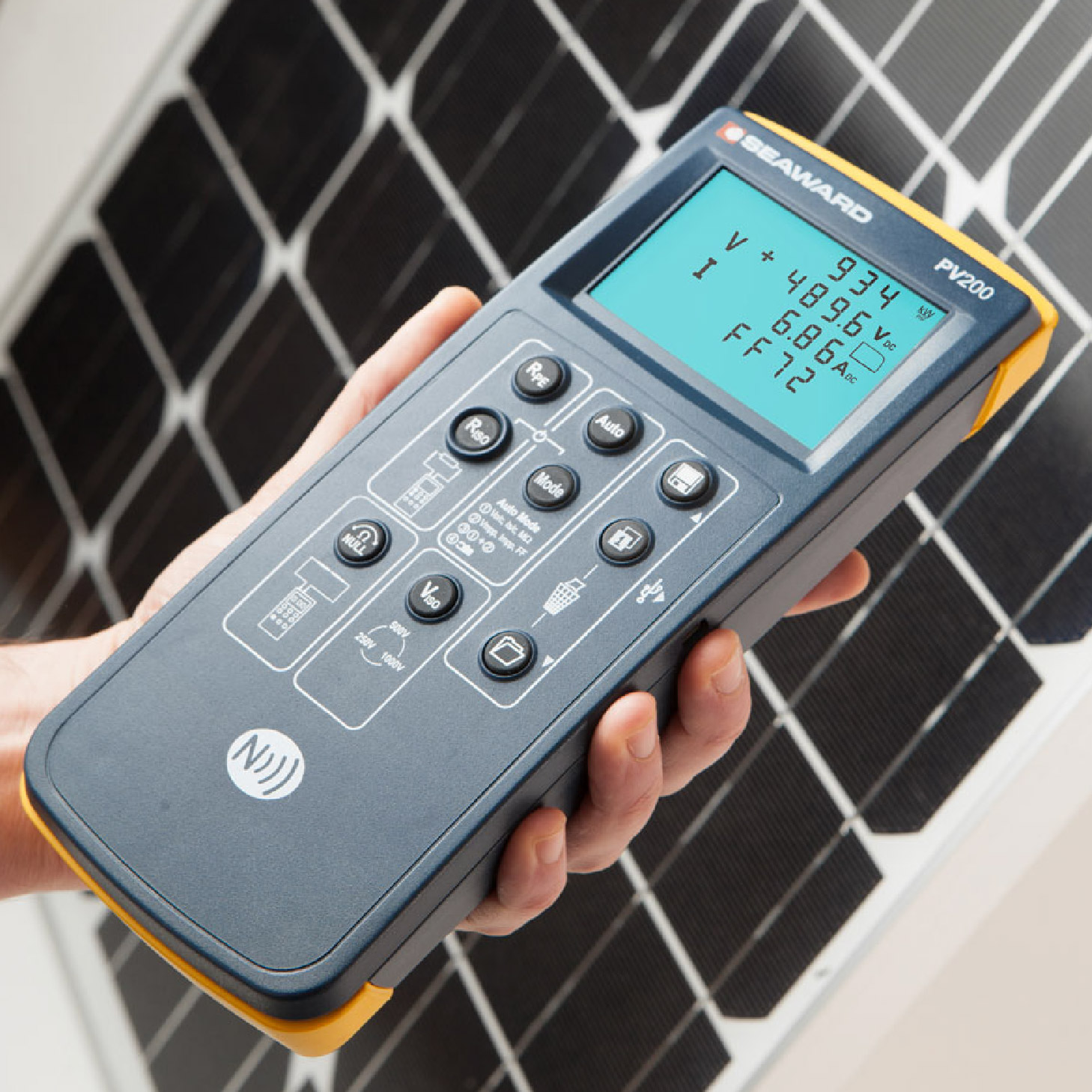

The PV200 provides an efficient and effective test and diagnostic solution for photovoltaic systems, capable of conducting in-service tests according to IEC 62446 standards and fast and accurate testing of IV curves according to IEC 61829. With the use of Solar Surver 200R irradiance meter,PV200 can convert the measured data to STC standard value. Whether using PVMobile or SolarCert Elements PC software, it supports direct comparison with the factory calibration value of PV module

Connect the device directly to the lead of a single PV module or PV string, and the test can be easily completed in seconds with the push of a button

The high-contrast disy is clearly visible in direct sunlight and can disy the open circuit voltage, short circuit current, maximum power point voltage, current and power, as well as the fill factor of the PV module or system under test, insulation resistance (measured as part of the automatic inspection program or separately). If the measured IV curve deviates significantly from the expected curve, the PV200 alerts the user to the need for further analysis

The PV200 can be connected to the pvmobile Android application through wireless NFC for data transmission, instant browsing on the APP detailed, multi-color IV characteristic curve and power curve. PVMobile disys the measured IV and power curves, and visually analyzes the curve shape to diagnose common problems such as shadows, defective components, and poor electrical connections

Key features of SEAWARD PV200 :

■ Small size, handheld portable

■ Cost-effective diagnostic tools for PV systems

■ Simple, fast push-button operation

■ Comply with international standards IEC 62446:2016 and IEC61829: 2015 integrated operation test and IV curve tracking

■ Use the PVMobile Android APP to instantly view the detailed IV curve on site

■ Convert the measured IV curve to STC standard values via the PVMobile application or SolarCert

■ Send PDF report back to office via PVMobile APP

■ Can test photovoltaic modules or clusters

■ Clearly view the results in direct sunlight

■ Wireless reception of irradiance and temperature data measured by Solar Survey 200R

■ System performance is fully traceable

■ Compatible with SolarCert Elements v2

电气/分析测试功能

■ IV curve tracking according to IEC 61829

■ Ground continuity

Insulation resistance (automatic short-circuit current test and point to point test)

■ AC/DC voltage measurement

■ 1000VDC open-circuit voltage measurement

■ Maximum power point voltage of up to 1000VDC

■ Short-circuit current up to 15ADC

■ Automatic fill factor calculation

■ Maximum operating current 40A (using current pliers)

■ Maximum DC power 40KW
