Product Overview: 1000FLT fluorescent lamp tester
Eliminate the trial-and-error in fluorescent lamp testing
A single tester can complete all basic lighting tests in less than 30 seconds, saving time and reducing costs

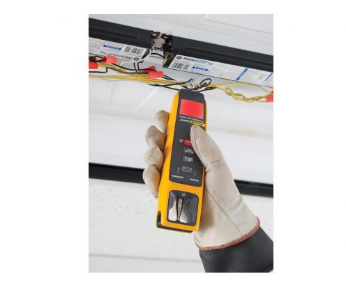

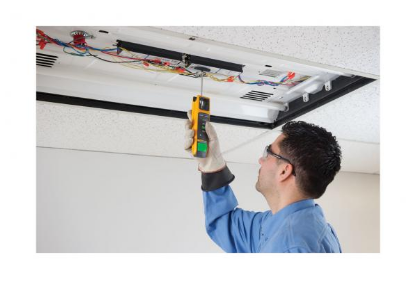

Lamp stick test: The lamp stick can be tested without removing it from the fixture
Ballast test: Easily determine whether the ballast is working properly
Non-contact voltage: Quick check voltage condition
Metal needle continuity test: Test whether the filament is fully connected
镇流器类型测试： Without disassembling the fixtures, determine whether electronic or inductive ballasts are being used - find out which ones are more energy-wasting
Fluke 1000FLT is an essential tool if you need to turn on a large number of fluorescent lights for your work
Product specification: 1000FLT fluorescent lamp tester
| General technical index | |
| Lamp stick test maximum output | 3000 V peak |
| Ballast test | 20 kHz |
| Ballast type discriminator | Distance ≤3m (10 ft) |
| Metal needle through - breaking test | <1 kΩ |
| NCV (VoltAlert™) | 85 to 400 V (AC)
45 to 67 Hz ≤10 cm (4 in) distance |
|
|
|
| Environmental indicators | |
| Temperature | 工作Temperature：-10 °C 至 +50 °C（14 °F 至 +122 °F）
存放Temperature：-40 °C 至 +60 °C（-40 °F 至 +140 °F） |
| Relative humidity | The maximum is 85percent |
|
|
|
| Safety specifications | |
| Safety level | IEC 61010-1, Pollution Level 2 |
|
|
|
| Mechanical and general specifications | |
| Size | 21.5 x 3.0 x 6.5 cm (8.5 x 1.2 x 2.6 in) |
| The weight of | 0.37 kg（0.80 lb） |
| Battery type | 4 AA alkaline batteries IEC LR6 |
| Battery life | Forty hours |
| Automatic shutdown | After 20 minutes of idleness |
| Low battery indicator | When the battery is low, the power button indicator blinks (usually after 85percent of the battery is consumed) |
| Altitude (operation) | <2000 m |
| Electromagnetic environment | EN 61326-1: Portable |
| Electromagnetic compatibility | CE IEC: CISPR Group 11:2, Class A |
| Group 2 covers all ISM RF devices where RF energy is generated and used (or only used) in the form of electromagnetic radiation, inductance and/or capacitive coupling for material handling or inspection/analysis purposes in the frequency range 9 kHz to 400 GHz | |
| Class A equipment is suitable for use in non-residential locations and/or directly connected to a low voltage supply network | |
| EE.UU. FCC Part 15 Subpart B: Test Free Equipment (in accordance with Clause 15.103) | |
| South Korea Class A equipment only (industrial broadcasting and communication equipment) | |
| The product meets the requirements of industrial (Class A) electromagnetic wave equipment, the seller or user should take note of this. This device is intended for use in a business environment, not a home environment | |
| Impact resistance | 2 meter fall |
| Warranty period | Three years |
