Product specification: Fluke 1AC-II Series VoltAlert™ Non-contact test Pen
| Technical index | |

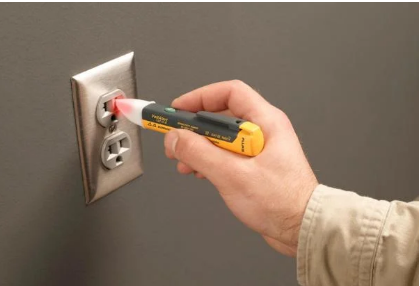

| Operating principle | The static electrostatic field generated by the AC voltage is sensed through the insulating skin (without touching the bare wire). When the probe glows red and the detector beeps (if it is not turned off), the presence of voltage is indicated |
| Voltage detection range | Standard voltages 90 V AC to 1000 V AC or 200 V AC to 1000 V AC (depending on product model),45 Hz to 405 Hz; Also available are 20 V to 90 V control circuit models |
| Probe type of detector | Flat or round (depending on the model) |
| Light source | A high brightness red LED indicator |
| Institutional certification | |
| Safety level | 1000 V,CAT IV |
| IP level | IP 40 |
| Operating temperature | -10°c - 50°c |
| Operating humidity range | 0% 95%(0°C 30°C) 0% 75%(30°C 40°C) 0% 45%(40°C 55°C)—— |
| Operating altitude | 3000 meters |
| Battery | 随附 2 节 AAA 碱性Battery |
Note: The product cannot detect loose static electricity
