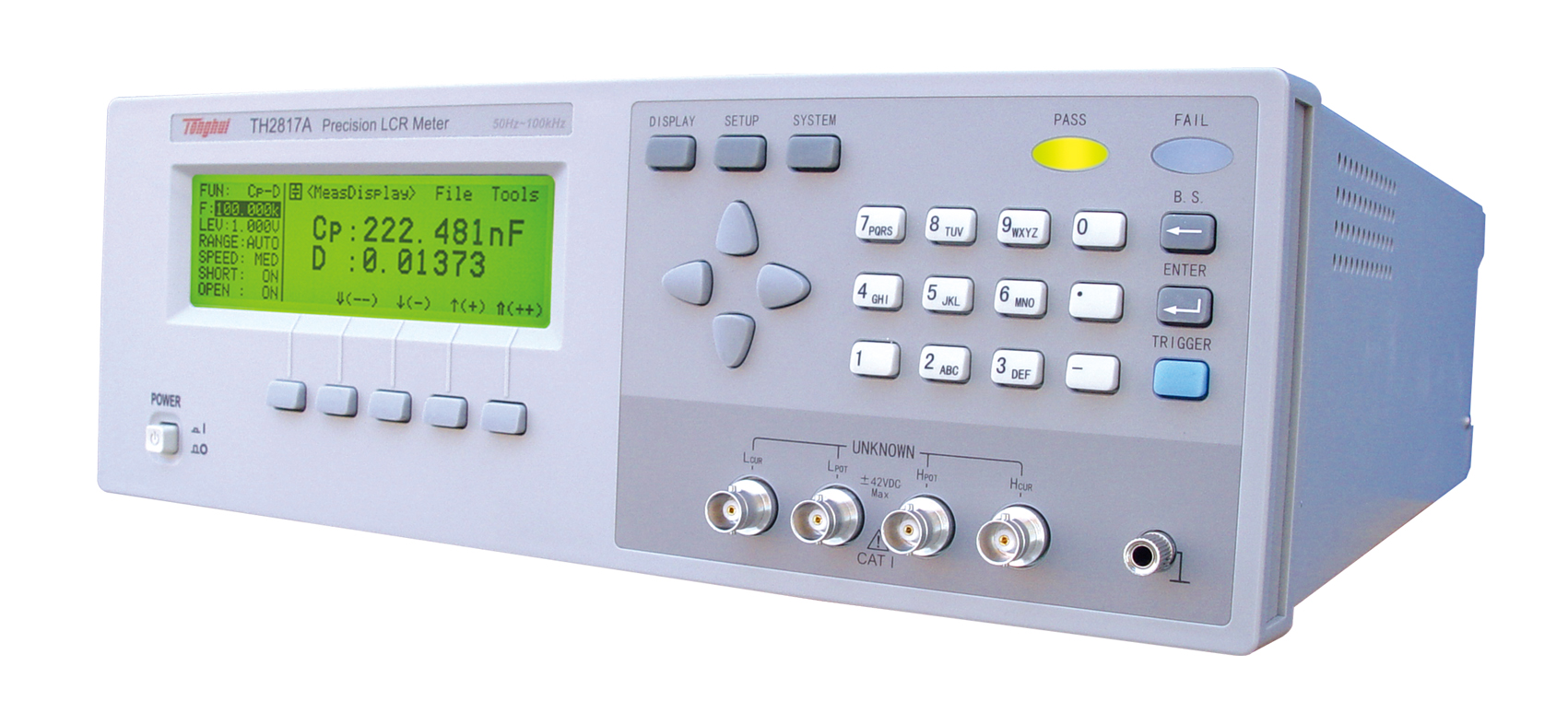

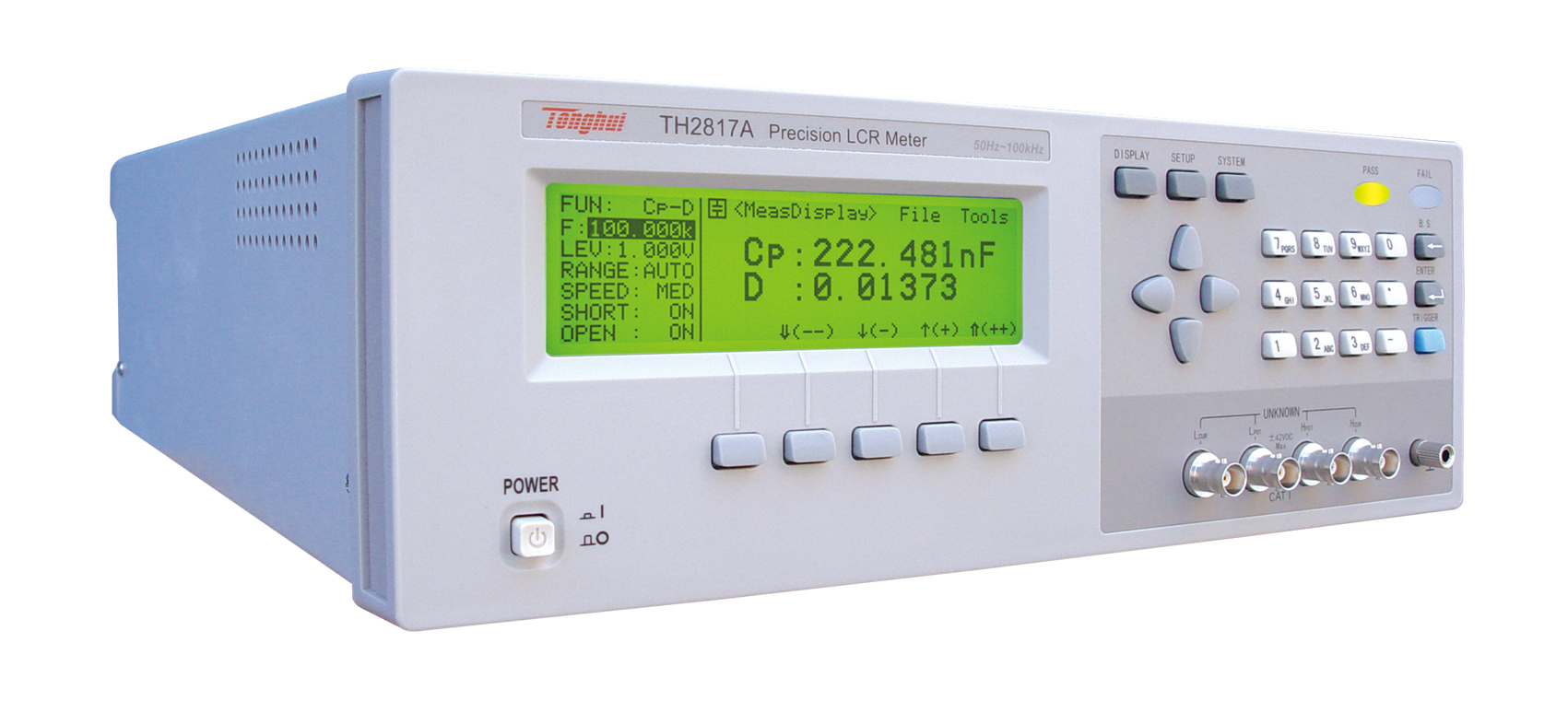

Technical parameters
Test parameters
|Z|,C,L,X,B,R,G,D,Q,θ
The monitor
240x64 点阵LCDThe monitor,6位读数分辨率
Test frequency
TH2817A
50Hz,60Hz,100Hz,120Hz, 200Hz,400Hz,500Hz,1kHz, 2kHz,4kHz,5kHz,10kHz, 20kHz,40kHz,50kHz,100kHz , a total of 16 frequency points
Test level range
10mVrms-2. 0Vrms,10mV Step by step
Basic accuracy
0.05%
Disy range
|Z|,R,X
0.00001Ω-99.9999MΩ
G,B
0.00001μS-999.999S
C
0.00001pF-999.999mF
L
0.00001μH-9.99999kH
D
0.00001-9.99999
Q
0.00001-99999.9
θ(DEG)
-179.999°-179.999°
θ(RAD)
-3.14159-3.14159
△ %
-999.999%-999.999%
Measure the speed of
Fast: 30 times/s, medium speed: 10 times/s, slow speed: 1.5 times/s
Equivalent circuit
Series, parallel
Range mode
Automatic, keep
Trigger mode
Internal, manual, external, Bus
The average number of times
1-255 (TH2816B None)
Zero clearing function
Open circuit, short circuit, load correction
The measuring end
5 End
Disy mode
Direct reading, ΔABS, Δpercent, V/I(voltage/current monitoring), stop number and stop count
List scan
4 点频率, 电平, 直流偏置List scan测试
Comparator function
TH2817A
四档（三档合格,一档不合格)另有一个附属档
Memory
12 Group internal instrument Settings for storage/call

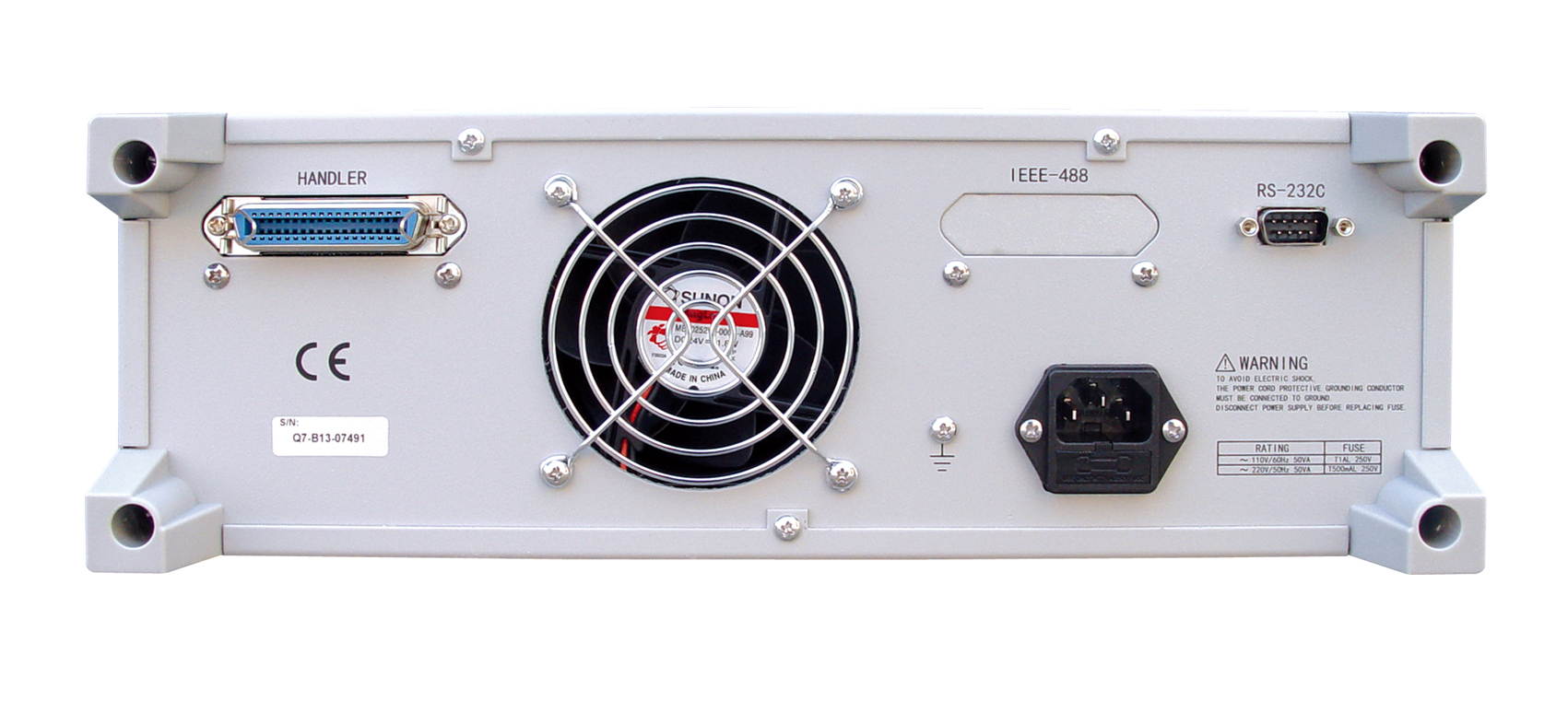

Interface
TH2817A
RS-232C,HANDLER ,GPIB(optional)
Attachment
| Standard configuration | |||||
| Part name | Model number |
|
|
|
|
| 四End夹具 | TH26005A |
|
|
|
|
| 短路片 | TH26010 |
|
|
|
|
| 带盒四End绝缘带锁Kelvin测试线 | TH26011AS |
|
|
|
|
| Optional | |||||
| Part name | Model number |
|
|
|
|
| Magnetic ring clamp | TH26008A |
|
|
|
|
| Patch test line with box | TH26009B |
|
|
|
|
| Patch test line with box | TH26029B |
|
|
|
|
