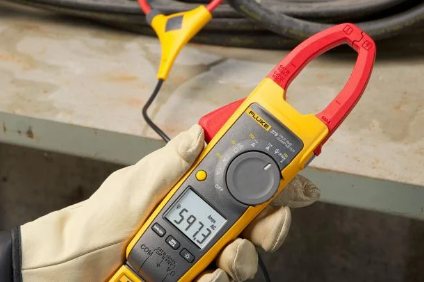

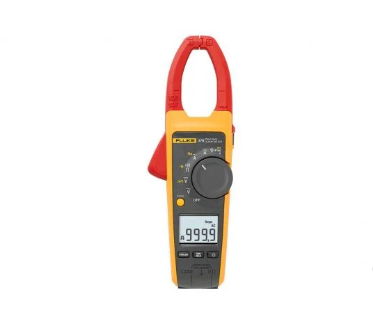

iFlex® Fluke 376 true root mean square AC/DC clamp table

Take all measurements at all times

Fluke 376 clamp meter provides higher performance and is ideal for a wide range of current measurements. Fluke 376 can measure true RMS voltage and current, in AC and DC mode, can read up to 1000 V voltage and 1000 A current

In addition,Fluke 376 includes A new iFlex™ flexible current probe that extends the range to 2500 A ac while providing improved disy flexibility to measure uncomfortably sized conductors for easy access to wires. Fluke 376 is a direct recement for Fluke 337 forceps table

Meet the following safety standards
EN/IEC 61010-1:2001; 1000V CAT III, 600V CAT IV

Product specifications: iFlex® Fluke 376 true root mean square AC/DC clamp table

Electrical technical specification
Alternating current through the clamp
The range of		374 and 375 376	600.0 A 999.9 A
Resolution			0.1 A
Accuracy			2%±5‰(10-100赫兹)—— 2.5%±5‰(100-500赫兹)——
Crest factor (50/60 Hz)			3 (500 A) (375 and 376 only) 2.5(600a / h)—— 1.42 (at 1000 A) (376 only) C.F. > 2 hours, an increase of 2percent
Ac current through the flexible current probe
The range of			2500 A
Resolution		374 and 375	0.1 A (≤ 600 A) 1 A (≤ 2500 A)
		376	0.1 A (≤ 999.9 A) 1 A (≤ 2500 A)
Accuracy			3%±5‰(5 - 500赫兹)——
Crest factor (50/60Hz)			3.0 (at 1100 A) (375 and 376 only) 2.5(1400a / h)—— 1.42(2500 a / h)—— C.F. > 2 hours, an increase of 2percent
The best distance		i2500-10 Flex	i2500-18 Flex	Error
	A	0.5 in (12.7 mm)	1.4 in (35.6 mm)	± 0.5%
	B	0.8 in (20.3 mm)	2.0 in (50.8 mm)	± 1.0%
	C	1.4 in (35.6 mm)	2.5 in (63.5 mm)	± 2.0%
The main conductor in the middle of the measuring uncertainty is in the best position, has no external electric or magnetic field and is within the operating temperature range
Direct current
The range of		374 and 375 376	600.0 A 999.9 A
Resolution			0.1 A
Accuracy			2percent ± 5 digits
Ac voltage
The range of		374 and 375 376	600.0 V 1000 V
Resolution		374 and 375 376	0.1 V 0.1 V (≤ 600.0 V) 1 V (≤ 1000 V)
Accuracy			1.5%±5‰(20 - 500赫兹)——
Dc voltage
The range of		374 and 375 376	600.0 V 1000 V
Resolution		374 and 375 376	0.1 V 0.1 V (≤ 600.0 V) 1 V (≤ 1000 V)
Accuracy			1percent ± 5 digits
Millivolt DC
The range of		375 and 376	500.0 mV
Resolution			0.1 mV
Accuracy			1percent ± 5 digits
Frequency (by clamp)
The range of		375 and 376	5.0 - 500.0 Hz
Resolution			0.1 Hz
Accuracy			0.5percent ± 5 digits
Trigger level			5 – 10 Hz,≥10 A
			10 – 100 Hz,≥5 A
			100 – 500 Hz,≥10 A
Frequency (through the flexible current probe)
The range of		375 and 376	5.0 - 500.0 Hz
Resolution			0.1 Hz
Accuracy			0.5percent ± 5 digits
Trigger level			5 – 20 Hz,≥25 A
			20 – 100 Hz,≥20 A
			100 – 500 Hz,≥25 A
Resistance
The range of		374 375 and 376	6000 Ω 60 kΩ
Resolution		374	0.1 Ω (≤ 600 Ω) 1 Ω (≤ 6000 Ω)
		375 and 376	0.1 Ω (≤ 600 Ω) 1 Ω (≤ 6000 Ω) 10 Ω (≤ 60 kΩ)
Accuracy			1percent ± 5 digits
Capacitance
The range of			1000 μF
Resolution			0.1 μF (≤ 100 μF) 1 μ F (≤ 1000 μF)
Accuracy			1percent ± 4 digits
Mechanical specifications
Dimensions (length x width x height)			246 mm x 83 mm x 43 mm
The weight of			388 g
Jaw opening			34 mm
Flexible current probe diameter			7.5 mm
Flexible current probe cable length (End to wire connector)			1.8 m
Environmental indicators
Operating temperature			10 °C – +50 °C
Storage temperature			-40 °C – +60 °C
Operating humidity			Non-condensing (< 10 -- °C) ≤90% RH(10℃~ 30℃)—— ≤75% RH(30℃~ 40℃)—— ≤45% RH(40℃~ 50℃)——
Working altitude			3000 meters
Storage elevation			12000 meters
Electromagnetic compatibility (EMC)			EN 61326-1:2006
Temperature coefficient			Above 28 °C or below 18 °C, per degree Celsius Increased the specified accuracy by 0.1 times
Safety specifications
Meet safety standards			CAN/CSA-C22.2 No. 61010-1-04 ANSI/UL 61010-1:2004 ANSI/ISA-61010-1 (82.02.01):2004 En / iec 61010-1:2001 1000V Measurement Class (CAT) III 600V Measurement Class (CAT) IV Pollution level 2 EN/IEC 61010-2-032:2002 EN/IEC 61010-031:2002+A1:2008
Institutional certification
Battery			2 AA,NEDA 15A,IEC LR6
