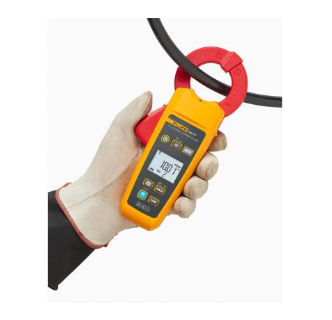

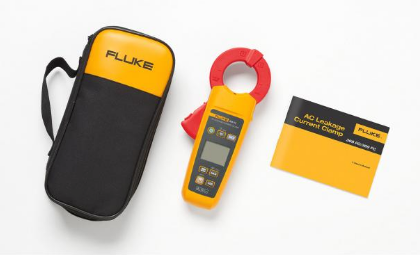

Fluke 368/CN and 368 FC/CN microampere true RMS leakage current clamp meter

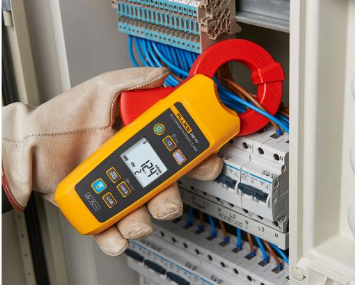

Reduce down time - find leakage current, no need to remove equipment from the production line
Fluke 368 FC True RMS Leakage current Clamp meter helps users continuously detect, archive, record and compare leakage current readings to prevent unnned shutdowns and detect intermittent GFCI and RCD trips in a timely manner, all without removing equipment from the production line
Fluke 368 FC has a 40 mm tongs mouth diameter and can be used in combination with large wires. The meter clamp is completely shielded to accurately capture very weak leakage signals while minimizing external electromagnetic interference
368 FC is also available for wireless data connection via Fluke Connect. As part of Fluke Connect®, the industry's largest software system, with more than 40 wireless test tools, 368 FC allows you to continuously track changes in leakage current, helping to identify potential failures before small problems lead to serious failures
* 368 has the same electrical properties and measuring functions as 368 FC except FC and related functions
Product specifications: Fluke 368/CN and 368 FC/CN microampere true RMS leakage current clamp meter
| Electrical technical specifications | ||
| Measuring function | Ac current | |
| Ac current量程 | 3 mA、30 mA、300 mA、3 A、30 A、60 A | |
| Range selection | mA/A: Manually select
3 mA / 30 mA / 300 mA: Automatically selects 3 A / 30 A / 60 A: Automatically selects |
|
| Range/resolution | 3 mA¹ / 0.001 mA | |
| 30 mA / 0.01 mA | ||
| 300 mA / 0.1 mA | ||
| 3 A / 0.001 A | ||
| 30 A / 0.01 A | ||
| 60 A / 0.1 A | ||
| Accuracy -- Activate filter (40 to 70 Hz), shut filter (40 to 1 kHz) ² | 3 mA – 30 A
60 A |
1percent 5 digits
2percent 5 digits |
| Frequency | 40hz - 1 kHz | |
| Peak coefficient | ="3" | |
| After calibration, the accuracy is valid for one year. Accuracy is expressed as ± (percent number of readings). The reference temperature condition is 23 ± 5 °C and the maximum relative humidity is 80percent
¹ The minimum value is 10 μA true effective value 2 . |
||
| The characteristics of the body | ||
| Disy screen (LCD) | Digital reading: 3300 words | |
| Disy update rate | 4 times per second | |
| Maximum measured conductor diameter | 40 mm | |
| Size | 234 x 101 x 46 mm | |
| The weight of | 500 g | |
| Battery | 2 AA,IEC LR6,NEDA 15A, Basic | |
| Battery寿命 | 在不使用背光灯和聚光灯的情况下,预计Battery寿命可以过 150 小时 | |
| Automatic shutdown | 钳表将在 15 分钟无操作后Automatic shutdown | |
| Safety and environmental norms | ||
| General safety | IEC 61010-1: Pollution Level 2 | |
| Measurement safety | IEC 61010-2-032：CAT III 600 V / CAT IV 300 V | |
| Operating temperature | -10°c - 50°c | |
| Storage temperature | -40°c - 60°c | |
| Operating humidity | No condensation (< 10 °C) | |
| 90percent relative humidity (10 °C to 30 °C) | ||
| 75percent relative humidity (30 °C to 40 °C) | ||
| 45percent relative humidity (40 °C to 50 °C) | ||
| Protection level | IEC 60529: IP30 (Jaws closed) | |
| Working altitude | 2000 m | |
| Storage elevation | 12000 m | |
| Current sensor action class | IEC 61557-13: 2 μ g，≤30a / m | |
| Electromagnetic compatibility (EMC) | ||
| International standard | ||
| IEC 61326-1 | Industrial electromagnetic environment | |
| CISPR 11 | Group 1 Category B | |
| The first group | The device needs to generate and/or use radiofrequency energy associated with conducted energy within the device, which is essential for its own internal function | |
| Grade B | The device is suitable for household appliances as well as any device directly connected to a low voltage network powering a residential building. When connected to the test target, the device may exceed the launch stage specified in CISPR 11 requirements
Korea (KCC) : Type of equipment (Industrial Radio and communication equipment) |
|
| Grade A | This product meets the requirements of industrial electromagnetic equipment, sellers or users should pay attention to. This device is designed for use in a commercial environment, not a residential one
USA (FCC) : 47 CFR 15 Subpart B. This product may be treated as duty-free equipment in accordance with Section 15.103 |
|
