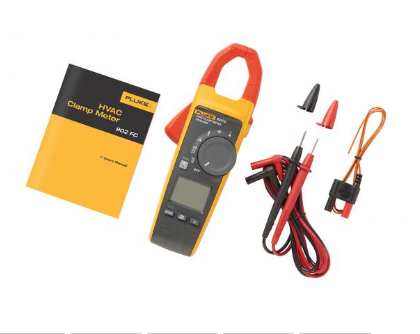

Product specifications: Fluke 902FC 600A true RMS wireless pliers table
| Function | ||
| Alternating current (through the jaws) |
|
|
| Resolution | 0.1 A | |
| Accuracy | 2.0%±5‰(45-65赫兹)—— | |
| 2.5%±5‰(65-400赫兹)—— | ||
| The range of | 600.0 A | |
| Crest factor (50Hz or 60Hz) | 2.5 MIN@220 A
> 1.4 MIN@600 A CF> Increase by 2percent-- at 400 A |
|
| Ac voltage |
|
|
| Resolution | 0.1 V | |
| Accuracy | 1.5percent ± 5 digits | |
| The range of | 600.0 V | |
| V dc |
|
|
| Resolution | 0.1 V | |
| Accuracy | 1.5percent ± 5 digits | |
| The range of | 600.0 V | |
| Ohm |
|
|
| Resolution | 0.1/1/10 | |
| Accuracy | 1percent ± 5 digits | |
| The range of | 600/6000/60.00 kΩ | |
| Capacitance |
|
|
| Resolution | 0.1/1 µF | |
| Accuracy | 1percent ± 4 digits | |
| The range of | 100.0/1000 µF | |
| µA |
|
|
| Resolution | 0.1 µA | |
| Accuracy | 1percent ± 5 digits | |
| The range of | 200 µA | |
| Contact temperature |
|
|
| Resolution | 0.1 C/F | |
| Accuracy | 1percent ± 8 bits | |
| The range of | -40 - 400°c(-40°f - 752°f | |
| On/off test buzzer |
|
|
| Buzzer volume | 75 dBA (rated) 15 cm.-- from the front of the box | |
| The threshold | <=1030 Ω | |
| Mechanical and general specifications | ||
| The maximum voltage between any terminal and ground | 1000 V | |
| Battery type | 2 AA alkaline batteries,NEDA 15A,IEC LR6 | |
| Temperature | 工作：-10 °C 至 +50 °C（14 °F 至 +122 °F）
Storage: -40 °C to 60 °C (-40 °F to 140 °F) |
|
| Operating humidity | Non-condensing (< 10 °C [50 °F]), relative humidity ≤90 percent (10 °C to 30 °C [50 °F to 86 °F]), relative humidity ≤75 percent (30 °C to 40 °C (86 °F to 104 °F)), relative humidity ≤45 percent (40 °C to 50 °C (104 °F to 122 °F)) | |
| Altitude | Work: 3,000 m (9,842 ft)
Storage: 1,2000 m (39,370 ft) |
|
| Size | 230 x 83.7 x 45.4mm (9.06 x 3.30 x 1.39 in) | |
| Weight (instrument only) | 419 g (15 oz) | |
| Security | IEC 61010-1, Pollution Level 2
IEC 61010-2-032：CAT III 1000 V / CAT IV 600 V IEC 61010-2-033：CAT III 1000 V / CAT IV 600 V |
|
| Protection level | IEC 60529: IP30, when not in operation | |
| Radio frequency certification | FCC ID:T68-FBLE IC:6627A-FBLE | |
| Electromagnetic compatibility (EMC) | International standard: IEC 61326-1: Portable, Electromagnetic Environment,IEC 61326-2-2 CISPR Group 11:1, Class A, Korea (KCC) : Class A Equipment (Industrial Broadcasting and communication equipment) USA (FCC) : 47 CFR 15 B subpart. This product is deemed to be exempt from inspection in accordance with Clause 15.103 | |
| Temperature系数 | For higher than 28°C or lower than 18°C, 0.1 × specified precision -- is added per degree Celsius | |
| Low-pass filter parameters | Built-in,800Hz | |
| Warranty period | Three years | |
