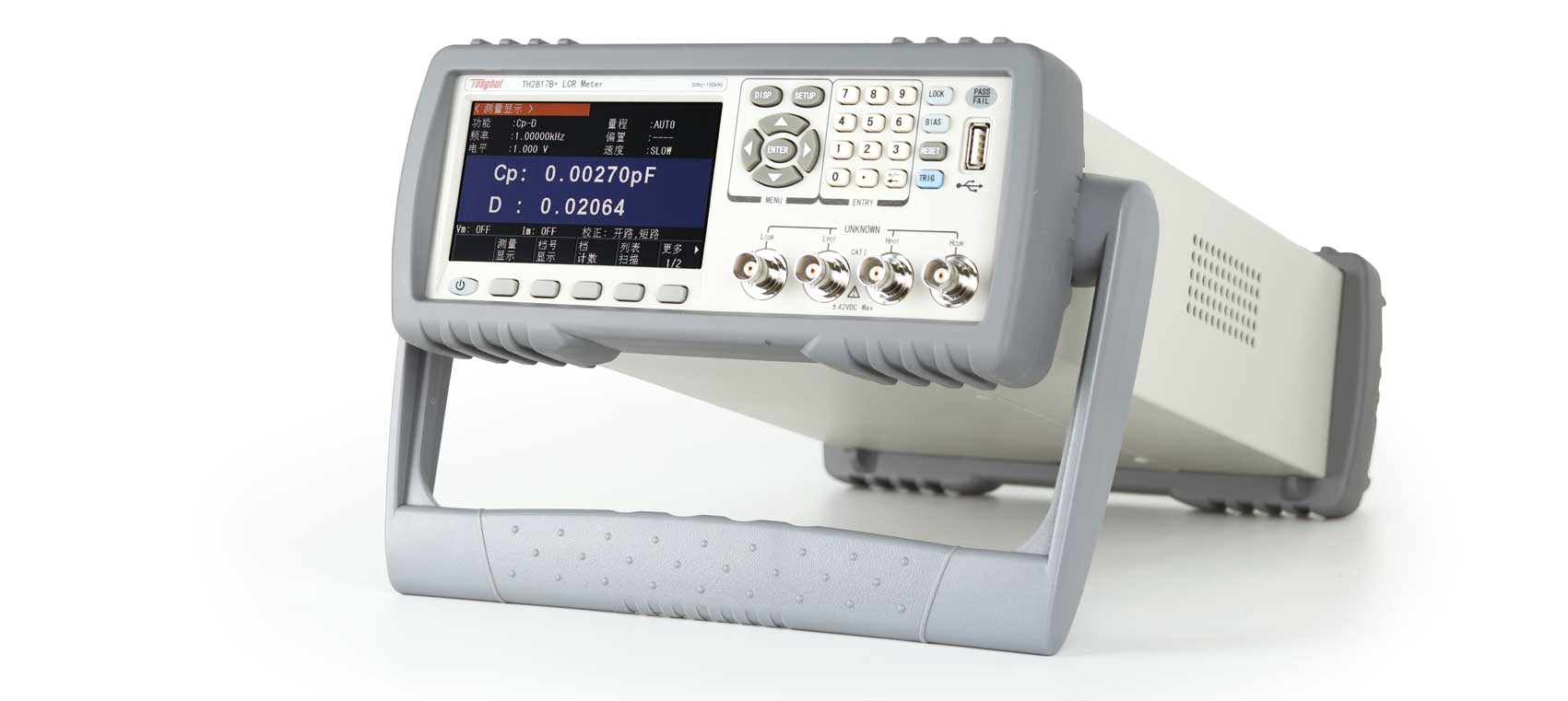

The monitor

4.3 Inch TFT LCD

The reading

6 位The reading分辨率

Test parameters

L 、 C 、 R 、 |Z| 、 D 、 Q 、 X 、 θd 、 θr 、 Vm 、 Im 、 △ %

Basic accuracy

0.1%

Equivalent mode

Tandem , Parallel

Range mode

Automatic , Keep

Trigger mode

Inside , External , Manual , Bus

Measure the speed of

Fast :19ms Medium speed :83ms Slow down :333ms

Zero clearing function

Open circuit, short circuit, load

Test end configuration

5 End

Test signal frequency

100Hz,120Hz,1kHz,10kHz

Output impedance

10 Ω 、 100 Ω

AC Test signal level

0.01Vrms 、 0.02Vrms 、 0.05Vrms 、 0.1Vrms 、 0.25Vrms 、 0.3Vrms( To be customized ) 、 0.5Vrms 、 1Vrms

LCR Parameter disy range

|Z|,R,X

0.00001 Ω - 99.9999M Ω

C

0.00001pF - 9.99999F

L

0.00001uH - 99.9999KH

D

0.00001 - 9.99999

Q

0.00001 - 99999.9

△ %

-999.999% - 999.999%

θr

-3.14159 - 3.14159

θd

-179.999 - 179.999

The average number of times

1-255

Mathematical operation

Direct reading, △ ABS , △ %

Trigger delay

0 - 60.000s , 1ms Step by step

Step by step延时

0 - 60.000s , 1ms Step by step

List scan

10 点List scan每扫描点可单独分选可对频率, AC Voltage scanning test

Comparator function

10 File sorting, BIN1-BIN9,NG,AUX

File counting function

PASS , FALL The front panel LED Show

Inside非易失性Memory

40 Group LCRZ Instrument setup file

External USB Memory

Instrument setup file, CSV Data file

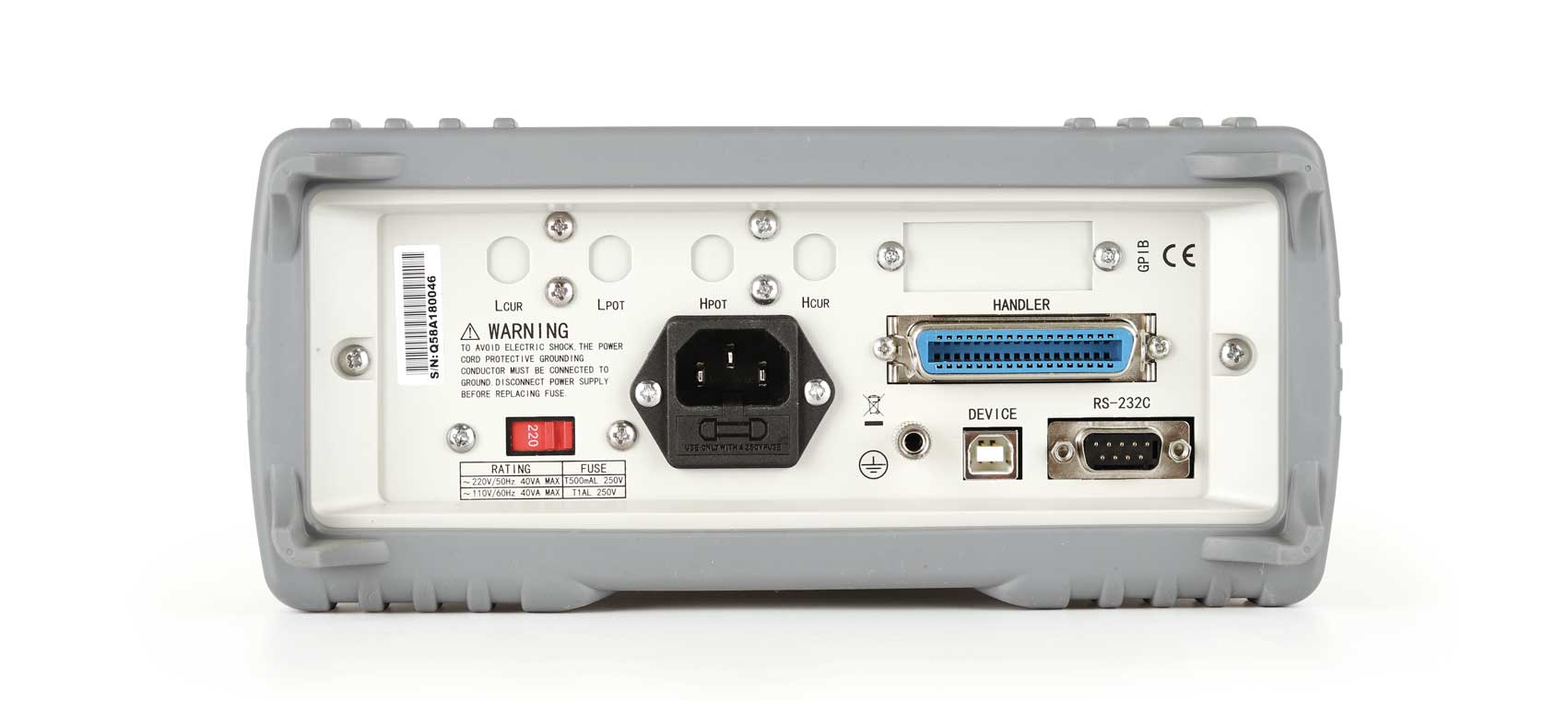

Interface

控制Interface

HANDLER

通讯Interface

USB HOST , RS232C , RS485 (Optional)

存储Interface

USB DEVICE

Dual-frequency test

The frequency of any two points is optional

V/I Monitor

There is

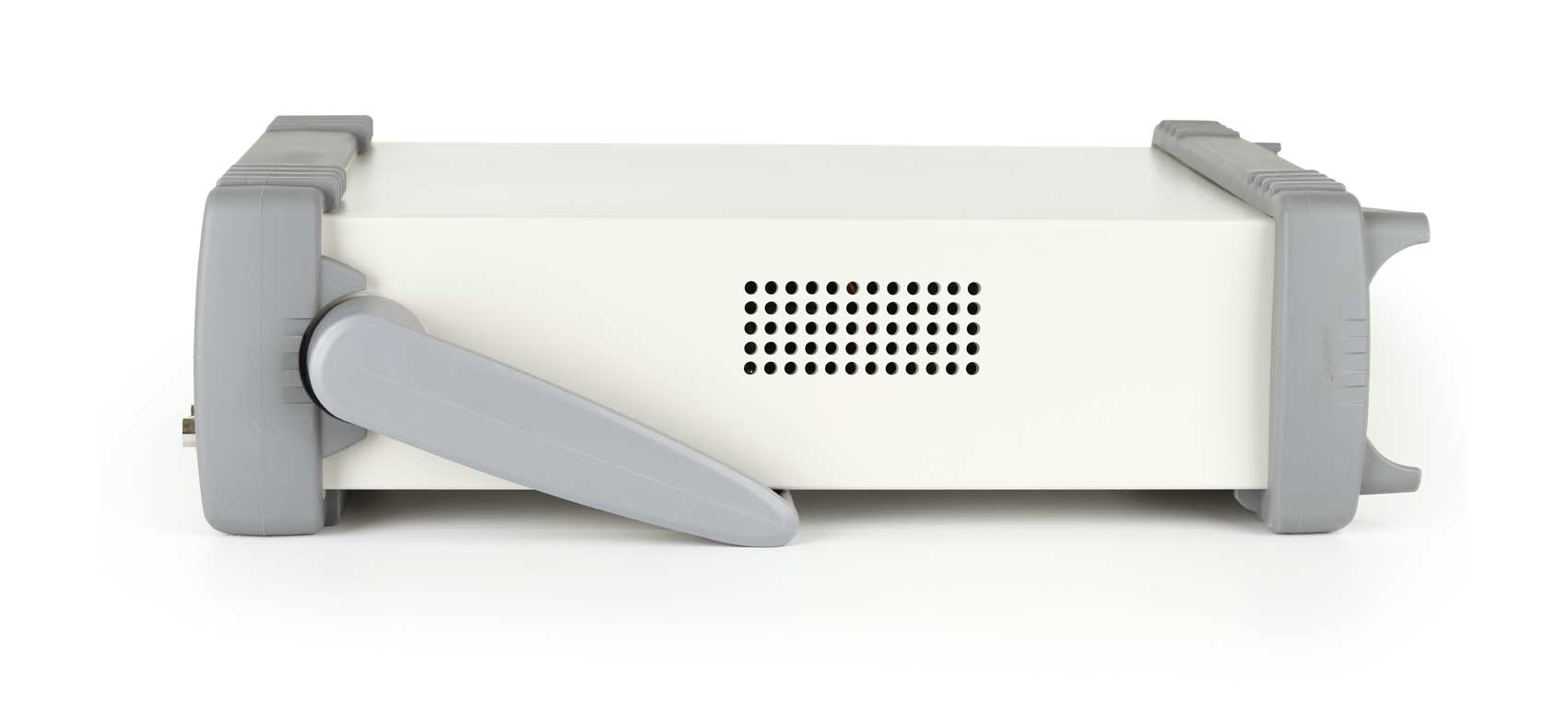

Shelf volume ( mm ）

215(W)x88(H)x335(D)

External volume ( mm ）

235(W)x105(H)x360(D)

The weight of

3.6kg
