Technical parameters
Model number

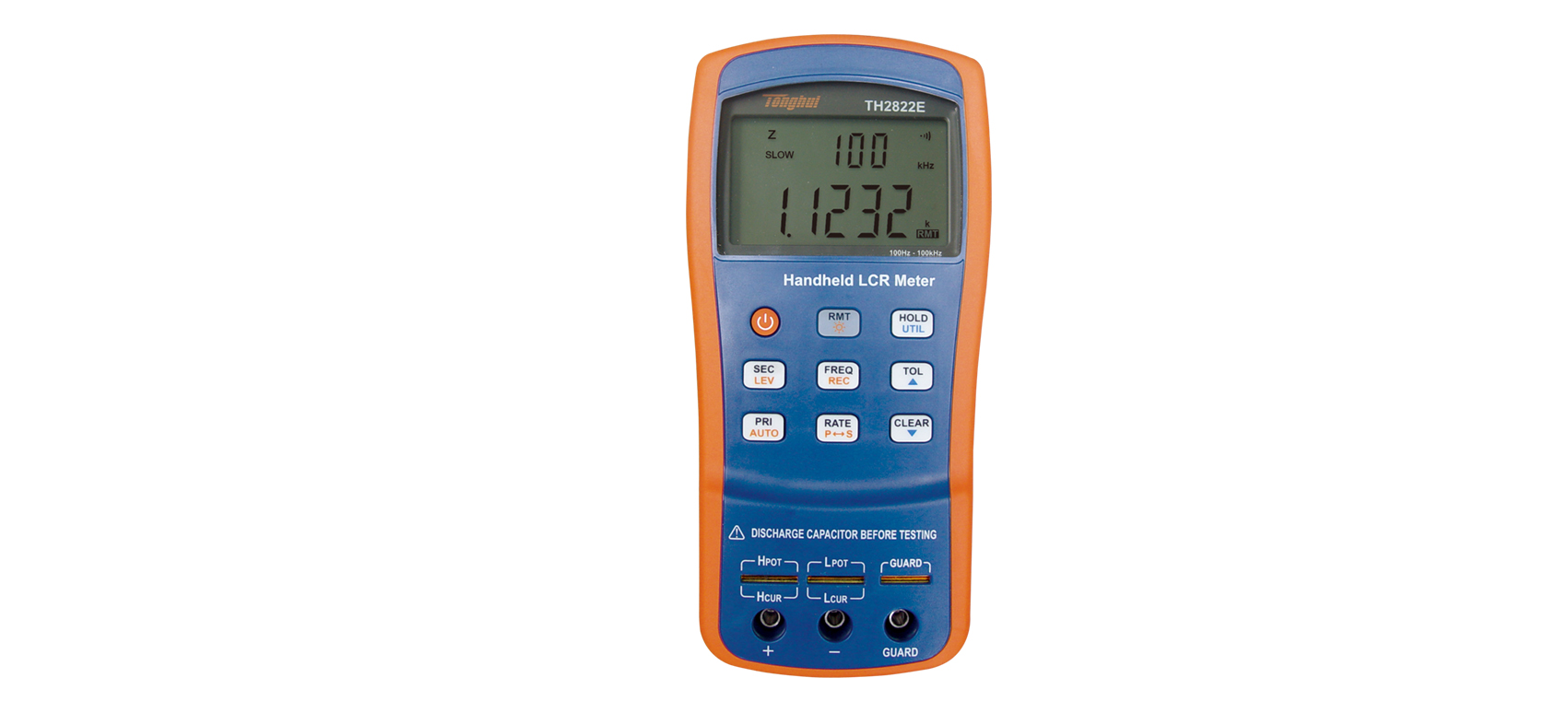

TH2822E
Work energy
Test parameters
Primary parameter :L/C/R/Z/DCR Secondary parameter :D/Q/R /θ / ESR
Equivalent mode
Series, parallel
Parameter and equivalent mode
Manual/automatic
Range mode
Automatic
Test end configuration
Three ends, five ends
Test the speed
4 Times/second,1.5 times/second
DCR
3 Times/second
Calibration function
Short circuit, open circuit, open circuit
Tolerance comparison mode
1%,5%,10%,20%
Enter the fuse
0.1A/ 250V
Communication interface
Mini-USB( Virtual serial port)
Test signal number
Signal frequency
100Hz,120Hz,1kHz,10kHz,100kHz
Test signal level
0.3 Vrms, 0.6Vrms,1Vrms
Source output impedance
100Ω
Show
The monitor

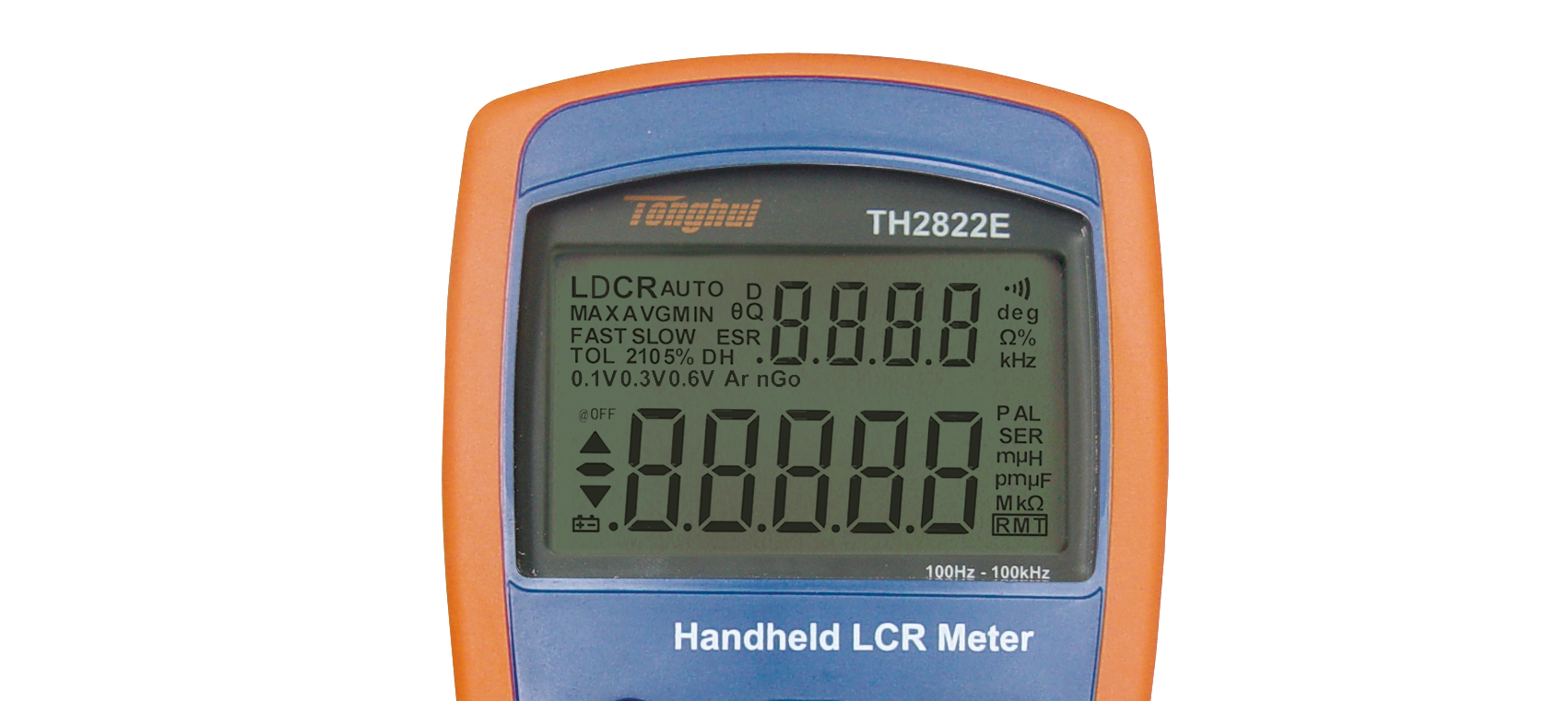

LCD Main and secondary parameters are disyed with backlight
The reading
主参数The reading40,000字副参数D / Q小分辨率: 0.0001
The highest accuracy
0.1%
Disy range
L
0.00μH-1000.0H
C
0.00pF-20.000mF
Z/R
0.0000Ω-10.000MΩ
DCR
0.0000Ω-20.000MΩ
ESR
0.0000Ω-999.9Ω
D
0.0000-9.999
Q
0.0000-9999
θ
0.00°-±180.0°
Power supply
电池Model number
TH2822E:LH-200H7C ,8.4V Ni-MH 200mAH rechargeable battery
AC Power adapter
Input: 220V/50Hz; Output: 12V-15V(100Ω load)
Standby (shutdown) current
11μA
Automatic关机设定
5min, 15min, 30min, 60min, OFF Can be set; The factory default is 5min
Battery low voltage indicator
When the battery voltage is lower than 6.8V, indicates the low voltage
Attachment
| Standard configuration | |||||
| Part name | Model number |
|
|
|
|
| Test line | TH26029C |
|
|
|
|
| National standard adapter | TH26028(CCC) |
|
|
|
|
| 手持表Test line | TH26004F(JC-BBC03009) |
|
|
|
|
| Short circuit te | TH26010B |
|
|
|
|
| Test line | TH26027AS |
|
|
|
|
| Optional | |||||
| Part name | Model number |
|
|
|
|
| TH2822贴片Test line | TH26009C |
|
|
|
|
