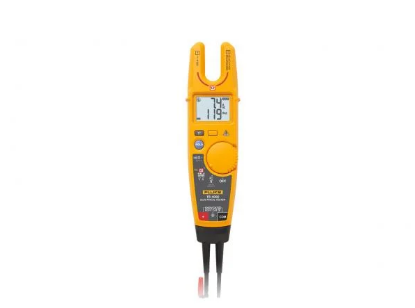

产品规格: T6-1000 非接触电压电流测试仪
| Measuring technical indicators | ||||
| Function | Wires need to be tested | The range of | Resolution | 精度[1] |
| FieldSense
True RMS of AC voltage |
None | 1000 V | 1 V | ±（3 % + 3 次计数）45 Hz - 66 Hz[2][3] |
| FieldSense
True effective value of AC current |
None | 200.0 A | 0.1 A | ± (3percent 3 counts) 45 Hz-66 Hz |
| FieldSense
Frequency (Hz) |
None | 45 Hz – 66 Hz | 1 Hz | ± (1percent 2 counts)[3] |
| True RMS of AC voltage | It is | 1000 V | 1 V | ± (1.5percent 2 counts) 45 HZ-66 Hz |
| Dc voltage | It is | 1000 V | 1 V | ± (1percent 2 counts) |
| Resistance | It is | 2000 Ω | 1 Ω | ± (1percent 2 counts) |
| It is | 20.00 kΩ | 0.01 kΩ | ||
| It is | 100.0 kΩ | 0.1 kΩ | ||
| Safety level |
|
1000 V CAT III
600 V CAT IV |
|
|
| 精度[1]
：±（[读数的 %] + [低有效位数数字]）.精度在Calibrate后一年内适用,工作Temperature为 18 °C 至 28 °C（64 °F 至 82 °F）,相对Humidity至 90 %.AC 测量：交流耦合,RMS 响应.
精度[2] ：增加 3 %,None需外部接地连接.外引接地要求使用者配戴绝缘手套、站在绝缘梯上或以其他方式与地面绝缘. 精度[3] ：FieldSense 从 16 V 到满The range of均可. |
||||
| General technical index | |
| Calibrate | 1 年Calibrate周期 |
| Size | 61.1 x 259.3 x 43.8 mm |
| Jaw opening | 17.8 mm |
| The weight of | 0.35 kg (0.78 lb) |
| Temperature
Work: Store: |
-10°c - 50°c(14°f - 122°f
-30°c - 60°c(-22°f - 140°f) |
| Humidity
Work: Store: |
2,000 meters (6,562 feet)
10,000 meters (32,808 feet) |
| 相对Humidity | 0% - 90%，5°C - 30°C(41°F - 86°F)
0% - 75%，30°C - 40°C(86°F - 104°F 0% - 45%，40°C - 50°C(104°F - 122°F) |
| Battery type and service life | Two AA alkaline batteries (IEC LR6); 360 hours of standard endurance; 200 hours battery life (FieldSense) |
| Temperature系数 | 0.1x (precision specified) / °C (< 18°C or > 28 °C)
（<64.4 °F 或 > 82.4 °F） |
| Safety level | IEC/EN 61010-1: Pollution Level 2 |
| Electromagnetic environment | IEC/EN 61326-1: Portable |
